LuminHao
Portable Fully-Locked Optical Frequency Comb Er-Comb-1560-OEM
Contact for pricing
In Stock
Contact Sales
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH

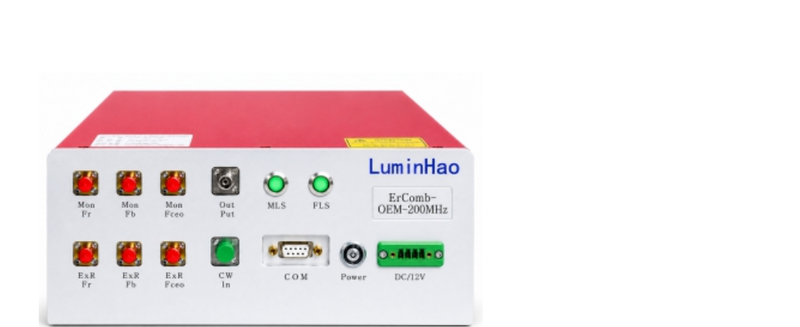

Fully locked comb in a 306 x 240 x 100 mm portable chassis. Supplied by WaveQuanta as LuminHao model Er-Comb-1560-OEM.
Key features
- Highly integrated single-chassis design
- Accepts either an optical or an RF reference
- Wide servo locking bandwidth
- Robust against ambient disturbance
Applications
- Optical clocks
- Terahertz metrology
- Ultra-stable microwave generation
- Optical frequency measurement
Specifications transcribed from the LuminHao 2026 product manual. Contact WaveQuanta for a quotation, lead time and customisation options.
Related comb hardware
- Er-Comb-1560-U fully locked comb — the 3U rack version, with four optical outputs instead of one
- HM-Fceo detection module — same carrier-envelope offset detection inside
- HM-PUMP-Comb pump driver — low-noise drive for the pump diodes
Browse the full optical frequency comb range.
| Repetition rate (100-250 MHz customisable) | 200 MHz |
| Repetition-rate tuning range | 10 kHz |
| Central wavelength | 1560 nm +/- 10 nm |
| Spectral width | > 30 nm |
| In-loop rep-rate lock instability | < 5E-13 @ 1 s (RF reference); < 7E-16 @ 1 s (optical reference) |
| In-loop f_ceo instability | < 7E-16 @ 1 s |
| Rep-rate servo bandwidth | > 60 kHz |
| f_ceo servo bandwidth | > 20 kHz |
| Optical output ports | 1 |
| Optical power per port | >= 30 mW |
| Operating temperature | 22 to 28 degC |
| Dimensions | 306 x 240 x 100 mm |
No documents available for this product.
No CAD drawings available for this product.
