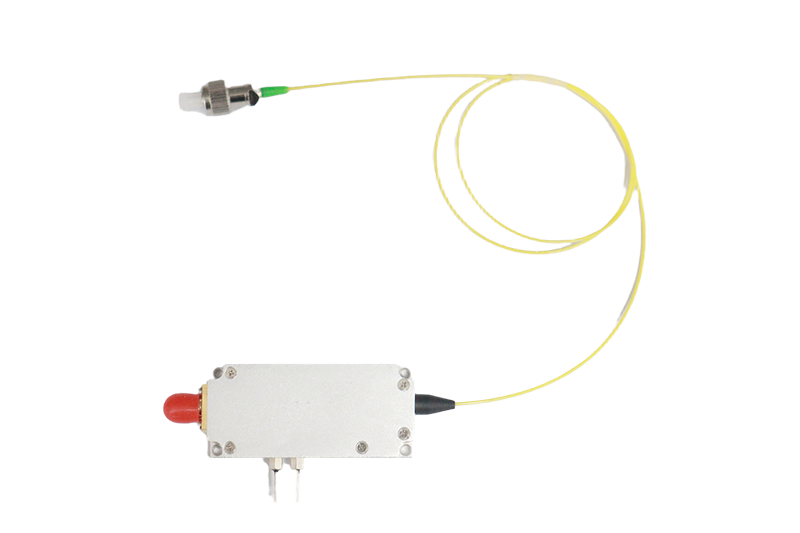

f_beat Detection Module HM-Fbeat
Contact for pricing
In Stock
Contact Sales
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
1 GHz beat-note detection in a 50 x 50 x 15 mm module. Supplied by WaveQuanta as LuminHao model HM-Fbeat.
Key features
- 1 GHz detection bandwidth
- Output SNR better than 35 dB
- Needs less than 5 mW of input power
- Compact 50 x 50 x 15 mm module
Applications
- f_beat detection in optical frequency combs
- Weak beat-note detection
Specifications transcribed from the manufacturer product page. Contact WaveQuanta for a quotation, lead time and customisation options.
Related comb hardware
- Er-Comb-1560-U fully locked comb — beat the comb against a CW laser to lock it optically
- Er-FrComb-1560-GHz comb — resolving GHz-spaced teeth is a typical use
- OFCTES comb-tooth extraction — the extracted tooth is what you beat against
Browse the full optical frequency comb range.
| Bandwidth | 1 GHz |
| Input power | < 5 mW |
| Output SNR | > 35 dB |
| Power supply | 12 V / 1 A |
| Dimensions | 50 x 50 x 15 mm |
No documents available for this product.
No CAD drawings available for this product.
