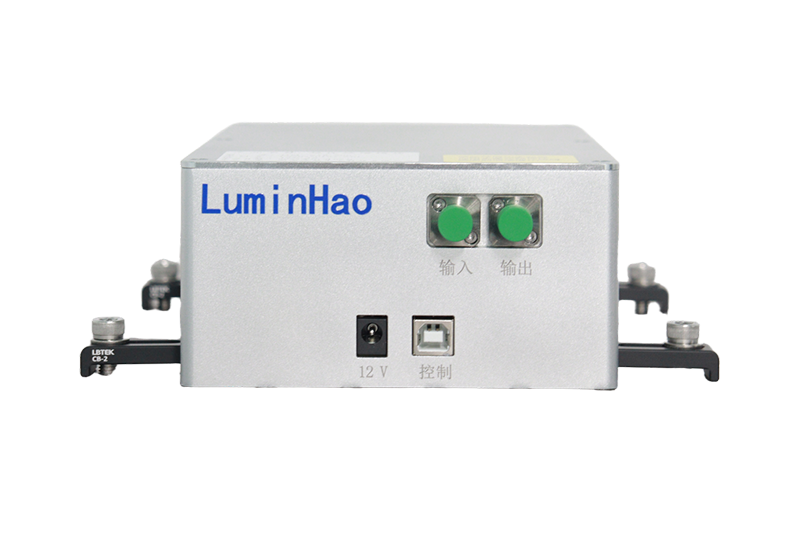

Supercontinuum Generation Module HM-MIR
Contact for pricing
In Stock
Contact Sales
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
Fibre supercontinuum source for comb spectral broadening. Supplied by WaveQuanta as LuminHao model HM-MIR.
Key features
- Fibre-based and on-chip versions
- Pumped at 1560 nm
- Broadband supercontinuum output
- Packaged as a drop-in module
Applications
- Octave-spanning broadening for frequency combs
- f-2f self-referencing
- Spectroscopy
Specifications transcribed from the manufacturer product page. Contact WaveQuanta for a quotation, lead time and customisation options.
Related comb hardware
- HM-Fceo detection module — the octave span this module makes is what f_ceo detection needs
- HM-VIR on-chip supercontinuum — the waveguide version, when footprint matters
- HNFA1000 amplifier module — amplify first, then broaden
Browse the full optical frequency comb range.
| Supercontinuum span | 1000 to 2000 nm |
| Input pulse central wavelength | 1560 nm +/- 20 nm |
| Input repetition rate | 100 MHz / 200 MHz / 250 MHz |
| Input power | > 2 mW |
| Input pulse duration | < 200 fs |
| Operating temperature | 10 to 40 degC |
| Dimensions | 200 x 130 x 67 mm |
