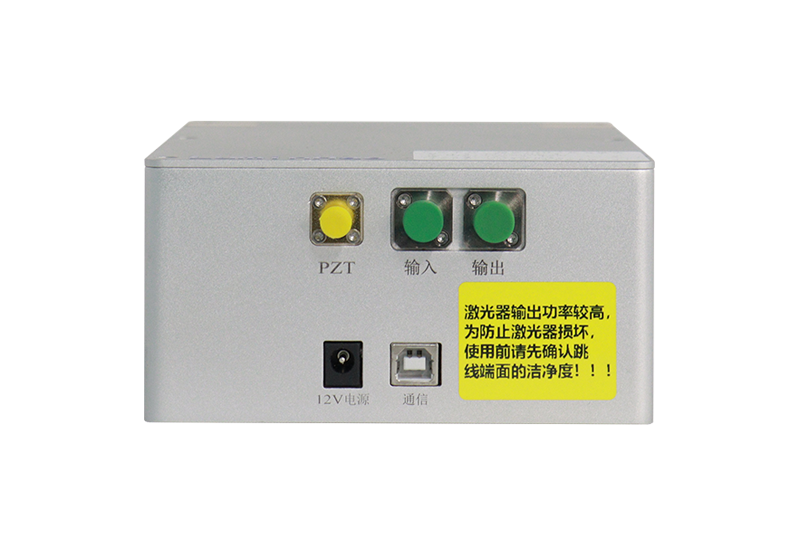

Ultrashort-Pulse Amplifier Module HNFA1000
Contact for pricing
In Stock
Contact Sales
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
Erbium fibre amplifier for femtosecond comb pulses. Supplied by WaveQuanta as LuminHao model HNFA1000.
Key features
- All polarisation-maintaining construction
- High gain
- Low accumulated dispersion
Applications
- Femtosecond and picosecond pulse amplification
- LiDAR
- Terahertz generation
Specifications transcribed from the manufacturer product page. Contact WaveQuanta for a quotation, lead time and customisation options.
Related comb hardware
- HM-MIR supercontinuum module — amplified pulses are what drive supercontinuum generation
- Er-FrComb-1560-ULN low-jitter comb — the comb whose output this module boosts
- MIR-Comb-U mid-infrared comb — supplies the pump power for mid-infrared conversion
Browse the full optical frequency comb range.
| Operating wavelength | 1520 to 1570 nm |
| Input pulse power | > 3 mW |
| Input repetition rate | 100 MHz / 200 MHz / 250 MHz |
| Input pulse duration | < 500 fs |
| Output optical power | > 100 mW |
| Dispersion | < 0.06 ps/nm |
| Operating temperature | 10 to 40 degC |
No documents available for this product.
No CAD drawings available for this product.
