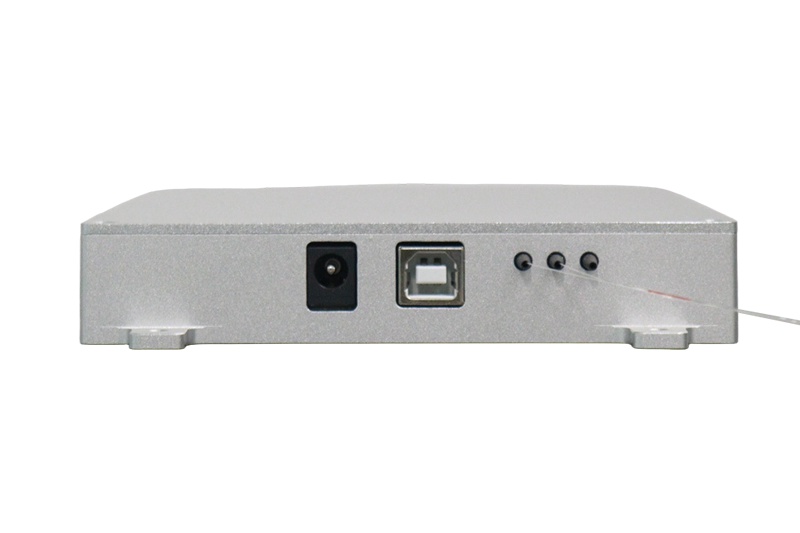

Frequency-Comb Pump Driver HM-PUMP-Comb
Contact for pricing
In Stock
Contact Sales
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
Low-noise current and temperature driver for comb pump diodes. Supplied by WaveQuanta as LuminHao model HM-PUMP-Comb.
Key features
- Up to 1500 mA drive current
- Dual output channels
- Ultra-low noise
- Wide modulation bandwidth
Applications
- Optical frequency combs
- Laser automatic power control
- Pump modulation
Specifications transcribed from the manufacturer product page. Contact WaveQuanta for a quotation, lead time and customisation options.
Related comb hardware
- Er-Comb-1560-U fully locked comb — drives the pump diodes of this comb
- Er-FrComb-1560-ULN low-jitter comb — pump drive for the rep-rate locked platform
- HNFA1000 amplifier module — also used to drive amplifier pump diodes
Browse the full optical frequency comb range.
| Drive current | 1.5 A |
| Current modulation frequency | > 100 kHz |
| Current modulation coefficient | 50 mA/V |
| Power stability | < 1 % over 8 h |
| Channels | Dual output |
| Dimensions | 150 x 80 mm |
No documents available for this product.
No CAD drawings available for this product.
