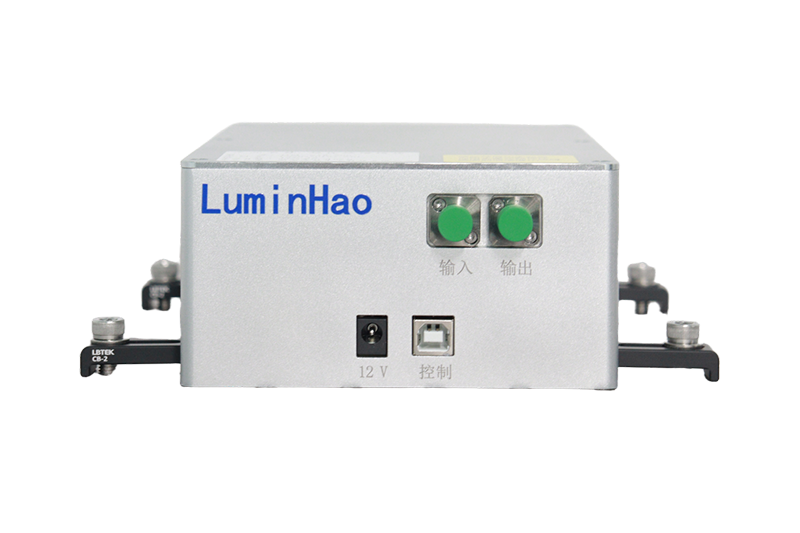

On-Chip Supercontinuum Generation Module HM-VIR
Contact for pricing
In Stock
Contact Sales
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
Waveguide-based supercontinuum generation on chip. Supplied by WaveQuanta as LuminHao model HM-VIR.
Key features
- Fibre-based and on-chip versions
- Pumped at 1560 nm
- Broadband supercontinuum output
- Packaged as a drop-in module
Applications
- Octave-spanning broadening for frequency combs
- f-2f self-referencing
- Spectroscopy
Specifications transcribed from the manufacturer product page. Contact WaveQuanta for a quotation, lead time and customisation options.
Related comb hardware
- HM-MIR supercontinuum module — the fibre version, for higher output power
- HM-Fceo detection module — feeds the carrier-envelope offset detection
- MIR-Comb-U mid-infrared comb — mid-infrared conversion built on the same principle
Browse the full optical frequency comb range.
| Supercontinuum span | 500 to 2000 nm |
| Input pulse central wavelength | 1560 nm +/- 20 nm |
| Input repetition rate | 100 MHz / 200 MHz / 250 MHz |
| Input pulse energy | > 0.5 nJ |
| Input pulse duration | < 200 fs |
| Operating temperature | 10 to 40 degC |
No documents available for this product.
No CAD drawings available for this product.
