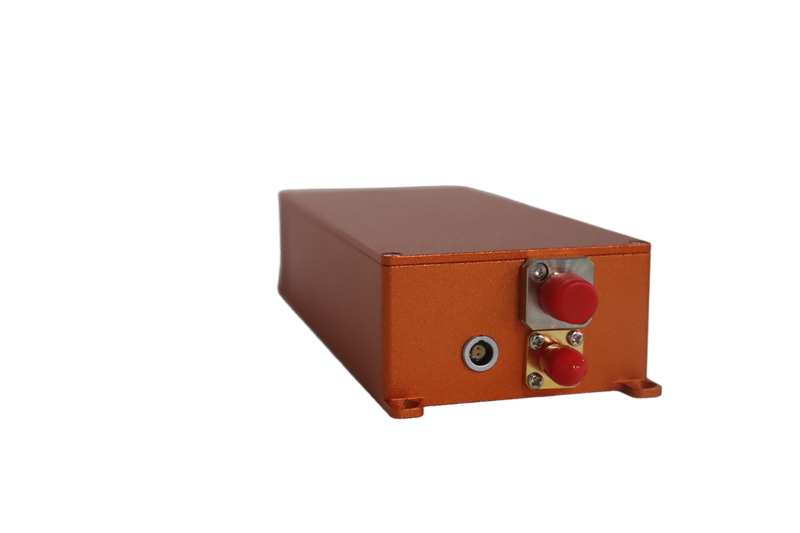

f_ceo Detection Module HM-Fceo-F / HM-Fceo-PIC
Contact for pricing
In Stock
Contact Sales
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
Carrier-envelope offset detection, discrete or photonic-integrated. Supplied by WaveQuanta as LuminHao model HM-Fceo-F / HM-Fceo-PIC.
Key features
- Available as a discrete-optics build or a photonic-chip build
- f-2f self-referenced detection
- f_ceo SNR > 30 dB at RBW = 100 kHz
- Low power draw, module format
Applications
- f_ceo detection in optical frequency combs
- Carrier-envelope phase stabilisation
Specifications transcribed from the manufacturer product page. Contact WaveQuanta for a quotation, lead time and customisation options.
Related comb hardware
- HM-MIR supercontinuum module — f_ceo detection needs an octave-spanning spectrum, which this produces
- Er-FrComb-1560-ULN low-jitter comb — the comb this module is normally fitted to
- Er-Comb-1560-U fully locked comb — a comb with this detection already integrated
Browse the full optical frequency comb range.
| Integration approach | Discrete-optics build / Photonic-chip build |
| Repetition rate | 100 MHz / 200 MHz |
| Pulse energy | 2 nJ / < 0.5 nJ |
| Input pulse duration | < 100 fs / < 200 fs |
| f_ceo SNR (RBW = 100 kHz) | > 30 dB / > 30 dB |
| Operating temperature | 10 to 40 degC |
| Power supply | 5 V / 1 A | 12 V / 0.5 A |
No documents available for this product.
No CAD drawings available for this product.
