Nanoparticle Thin Film Linear Polarizers — Model MNFLP12-IR1300

Silver-nanoparticle thin-film linear polarizer, operating wavelength 650 nm-2000 nm, extinction ratio >100000@850 nm-1600 nm; >10000@750 nm-1800 nm; >1000@650 nm-2000 nm, thickness 2.0 mm.

Overview

Mounted version of LBTEK nanoparticle thin-film linear polarizer, housed in an SM1 lens tube with internal/external threads compatible with standard Ø25.4 mm (1 inch) optomechanics. Features the same embedded silver nanoparticle film providing high extinction ratio, high damage threshold, and wide operating temperature range across ±20° AOI.

Key Features

Extinction ratio: >100000@850 nm-1600 nm; >10000@750 nm-1800 nm; >1000@650 nm-2000 nm
Operating wavelength: 650 nm-2000 nm
Damage threshold: CW linearly polarized, perpendicular to transmission axis: 1 W/cm²; CW linearly polarized, parallel to transmission axis: 5 W/cm²
Angle of incidence: 0°±20°
Operating temperature: -20 °C~120 °C
Surface finish: 40/20

Applications

Polarization control in scientific and industrial optical systems
High-contrast imaging and spectroscopy
Laser polarization filtering
Applications requiring elevated operating temperature or laser damage threshold
UV-resistant and chemically durable polarization filtering

Diameter tolerance	+0.0/-0.2 mm
Clear Aperture	Ø8.1 mm
Thickness	2.0 mm
Thickness tolerance	±0.2 mm
Operating Wavelength	650 nm-2000 nm
Transmitted Wavefront Error (TWE) (@633 nm)	<λ/4@Ø10 mm
Operating Temperature	-20 °C~120 °C
Damage threshold	CW linearly polarized, perpendicular to transmission axis: 1 W/cm²; CW linearly polarized, parallel to transmission axis: 5 W/cm²
Optical element diameter	12.5 mm
Extinction ratio	>100000@850 nm-1600 nm; >10000@750 nm-1800 nm; >1000@650 nm-2000 nm
Angle of incidence	0°±20°
Surface finish (scratches/pitting)	40/20
Mechanical housing	SM05-8A (lens tube, SM05 internal/external thread)
Mechanical housing diameter	17.8 mm
Mechanical housing diameter tolerance	+0.00/-0.05 mm
Mechanical housing thickness	11.3 mm (threaded length)
Installation Service Included	Yes

Specification Sheet PDF — Download

CAD Drawing Download

3D Model (STL) STL — Download

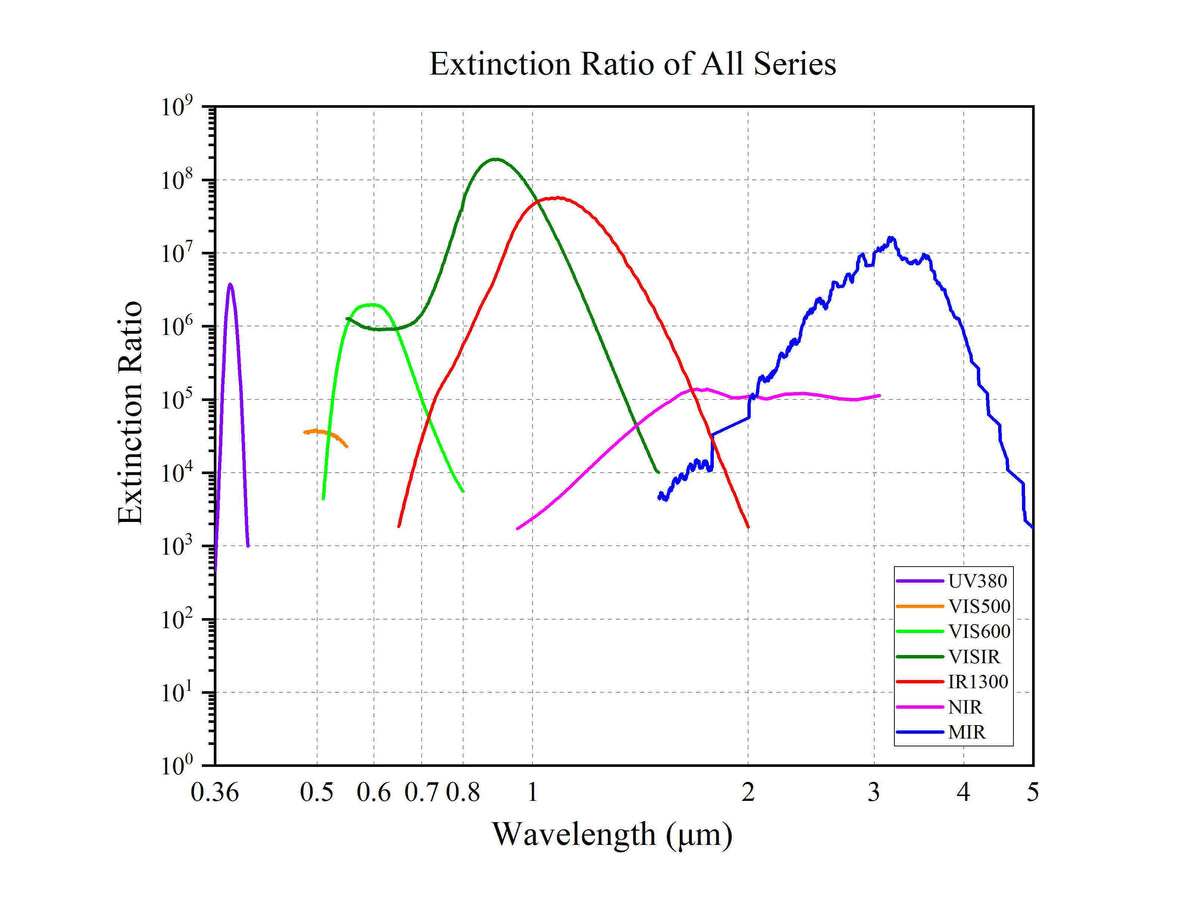

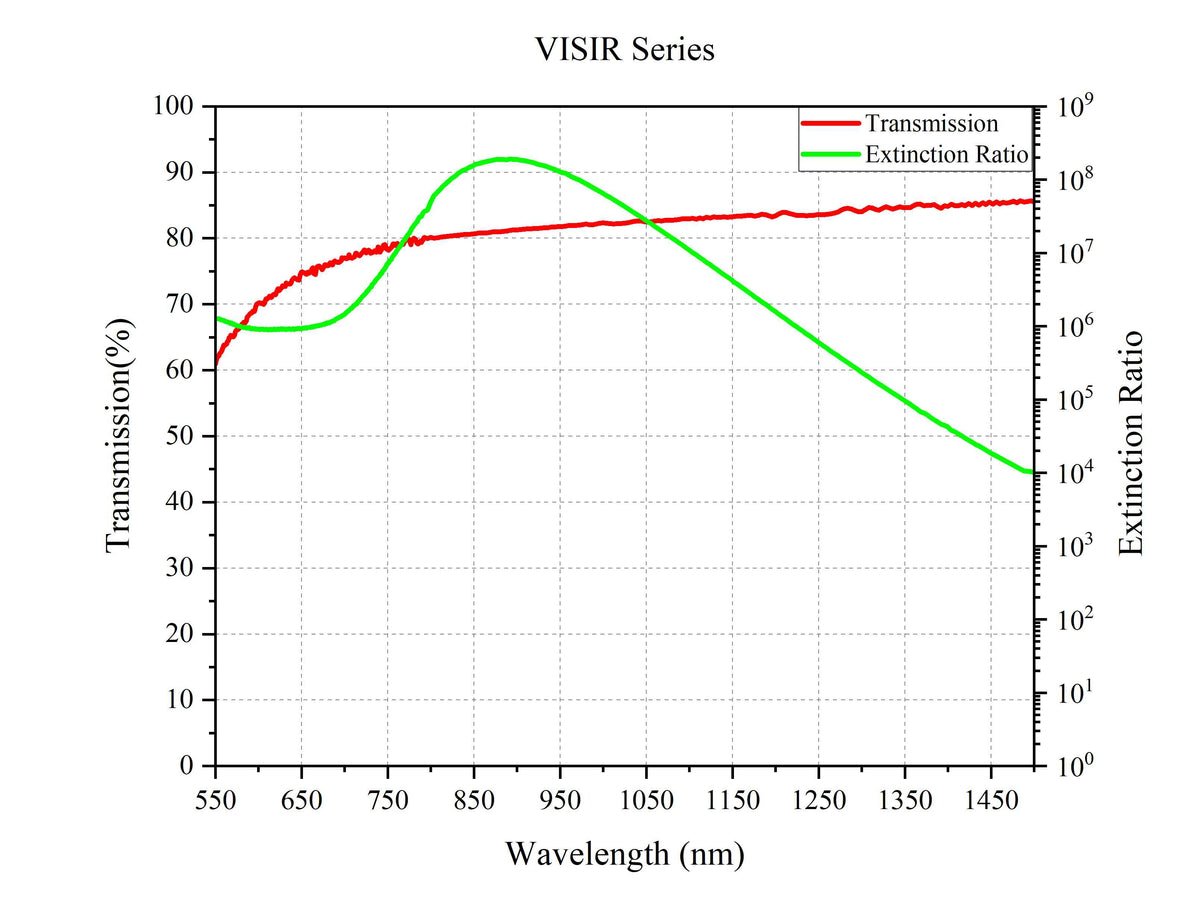

Curve - Extinction Ratio of All Series

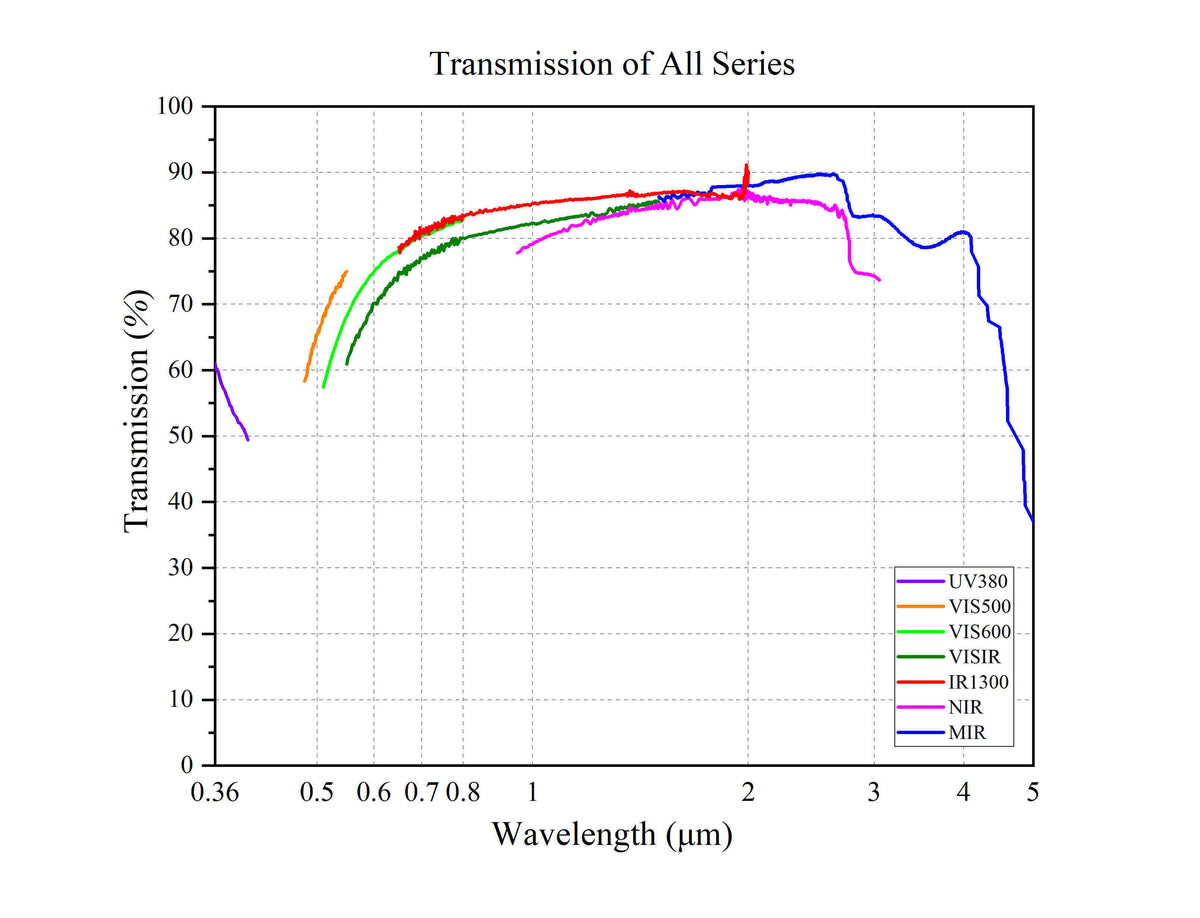

Curve - Transmission of All Series

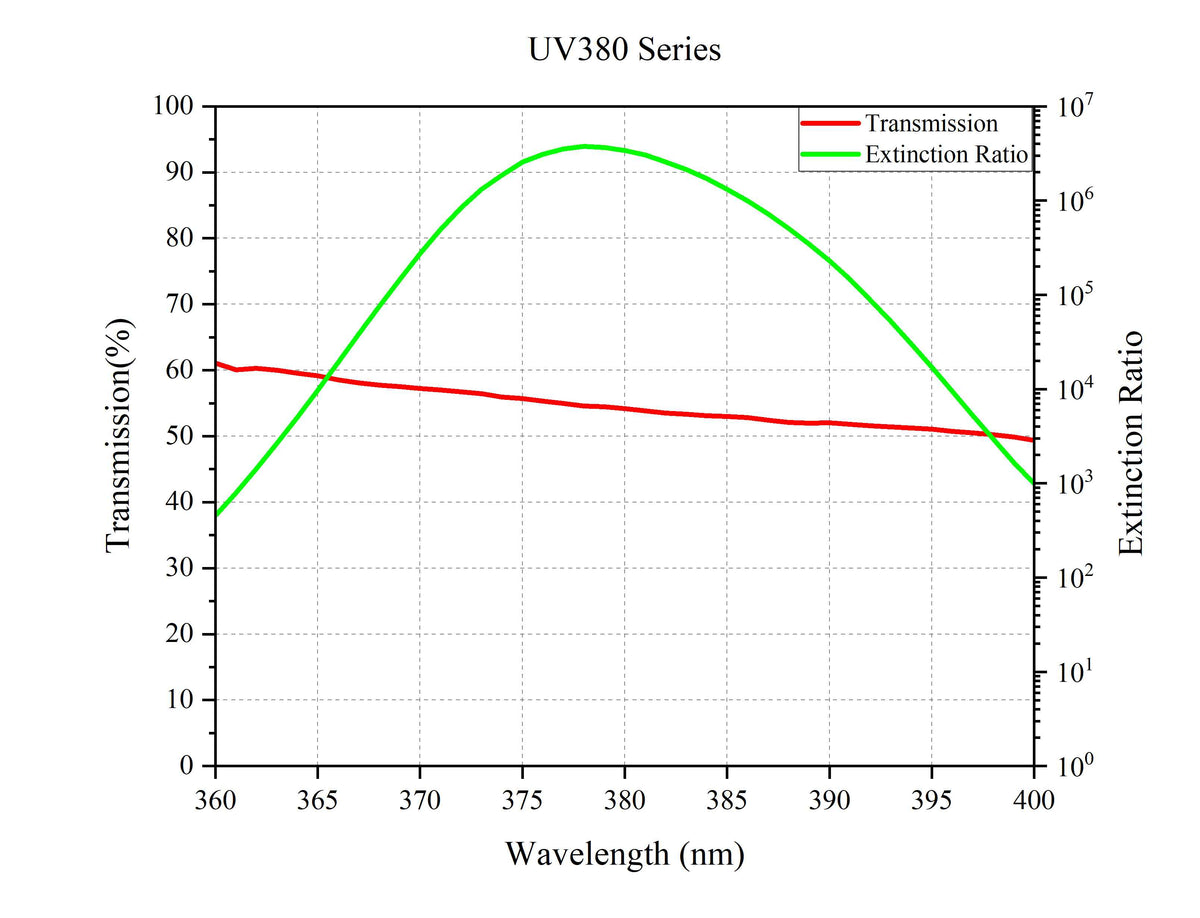

Curve - UV380

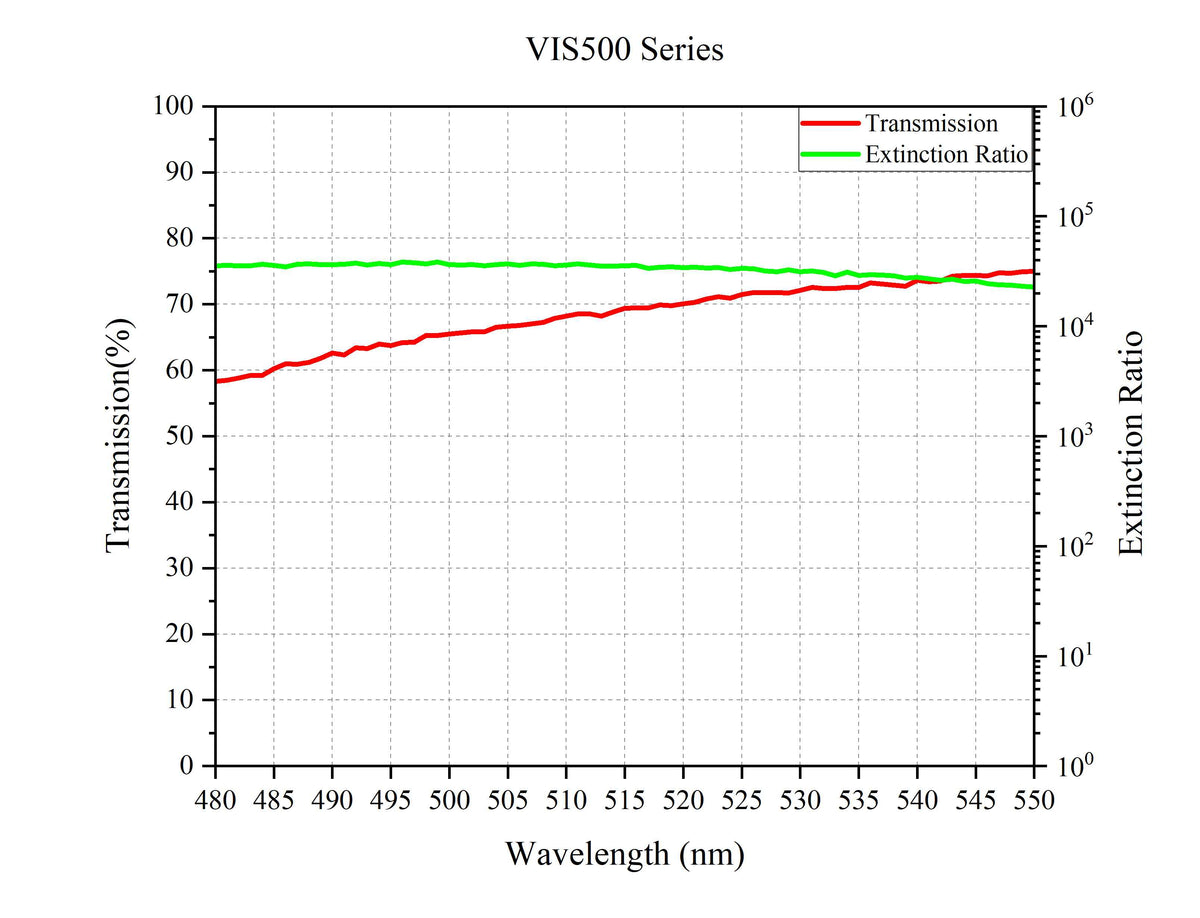

Curve - VIS500

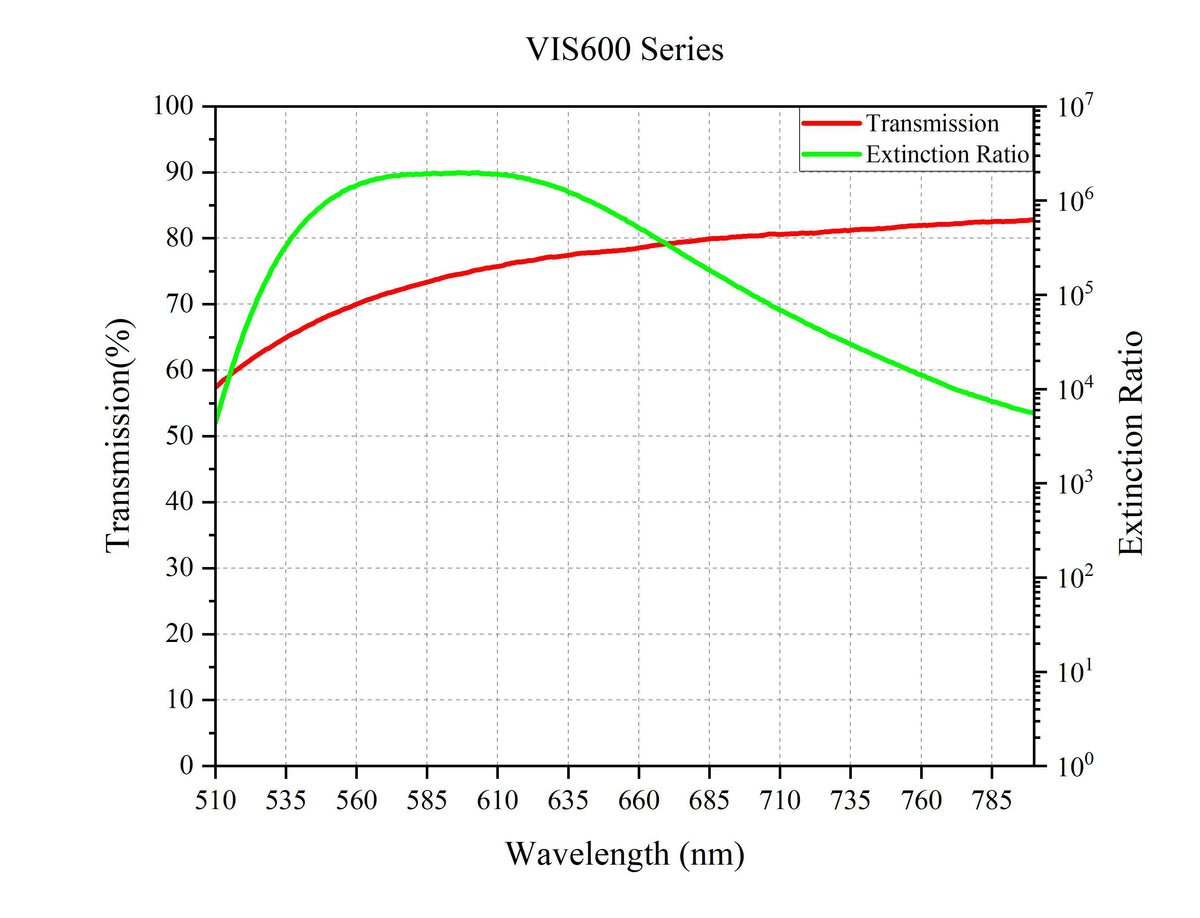

Curve - VIS600

Curve - VISIR

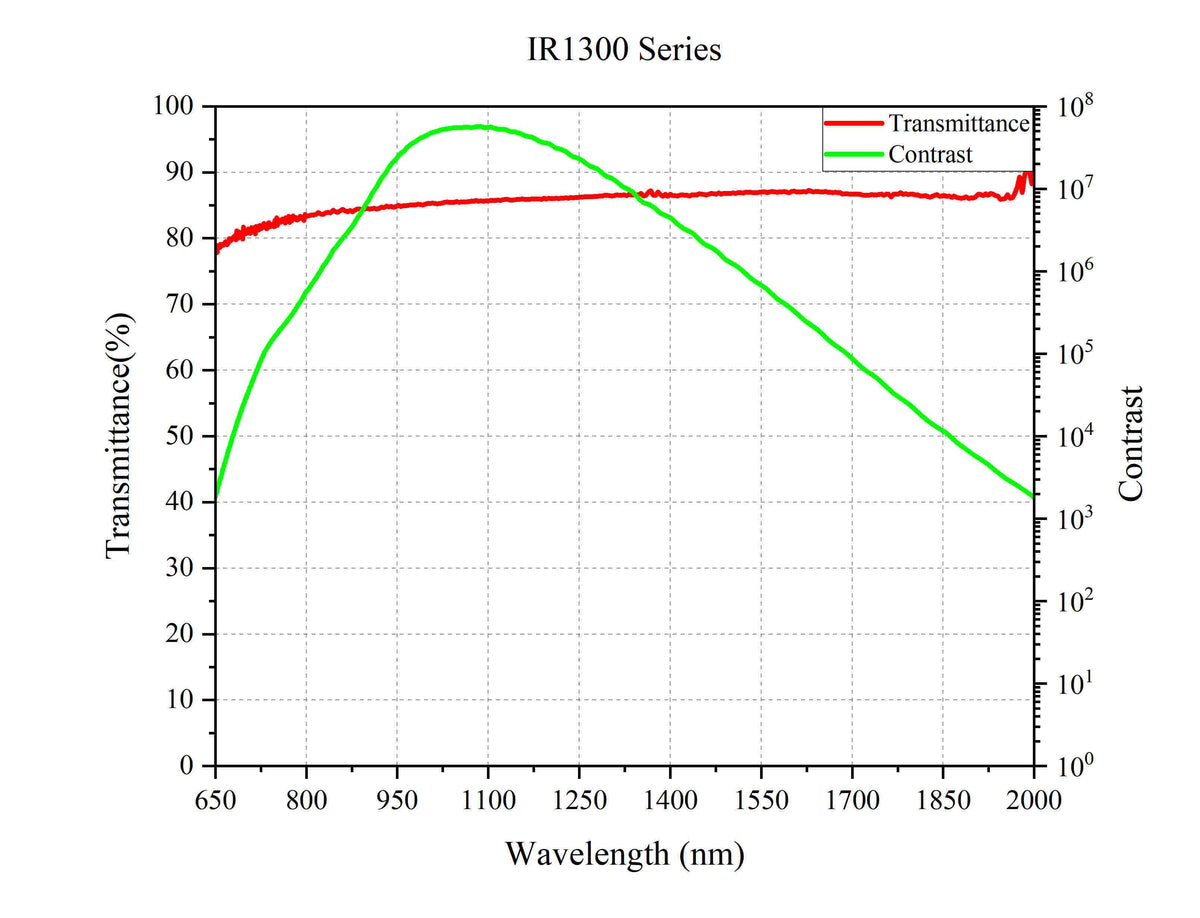

Reference Curve of Transmission and Extinction Ratio of IR1300 Series

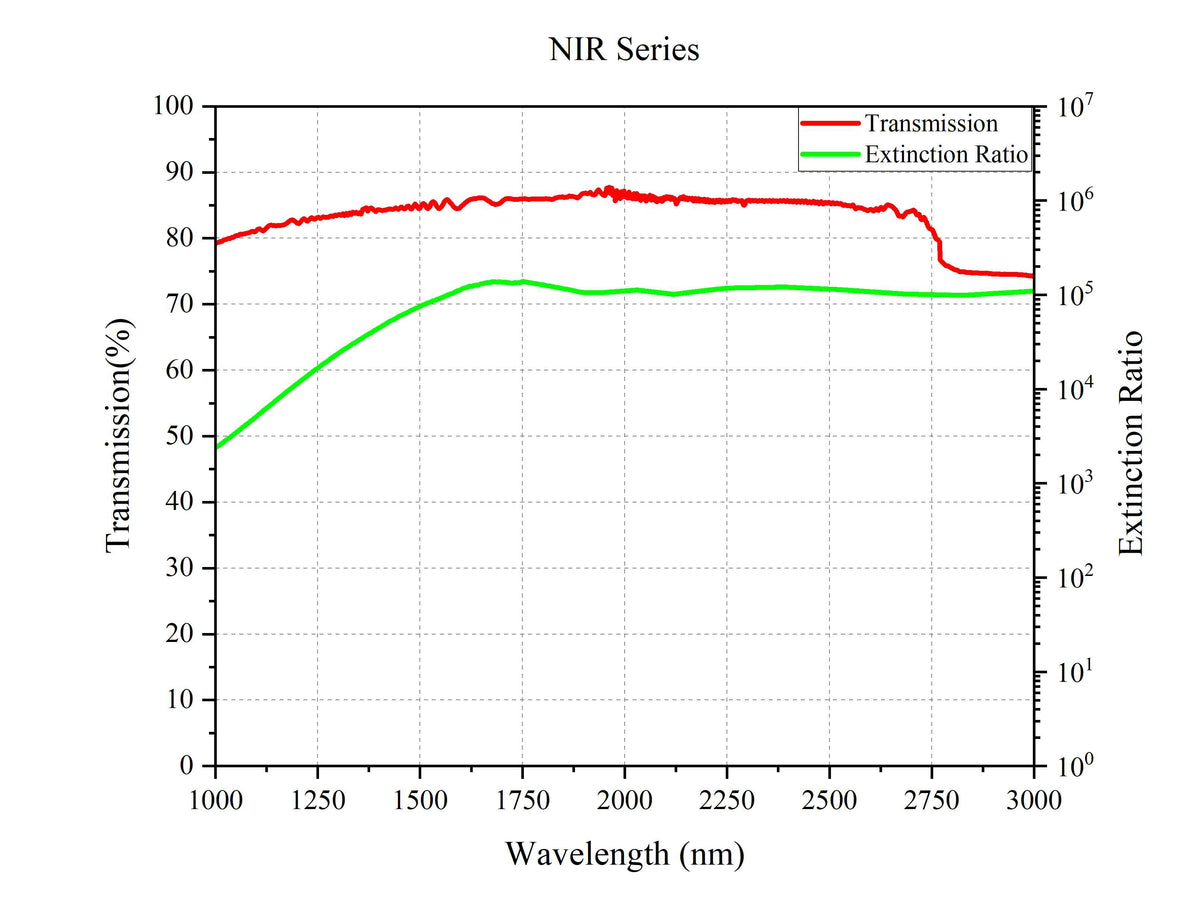

Curve - NIR

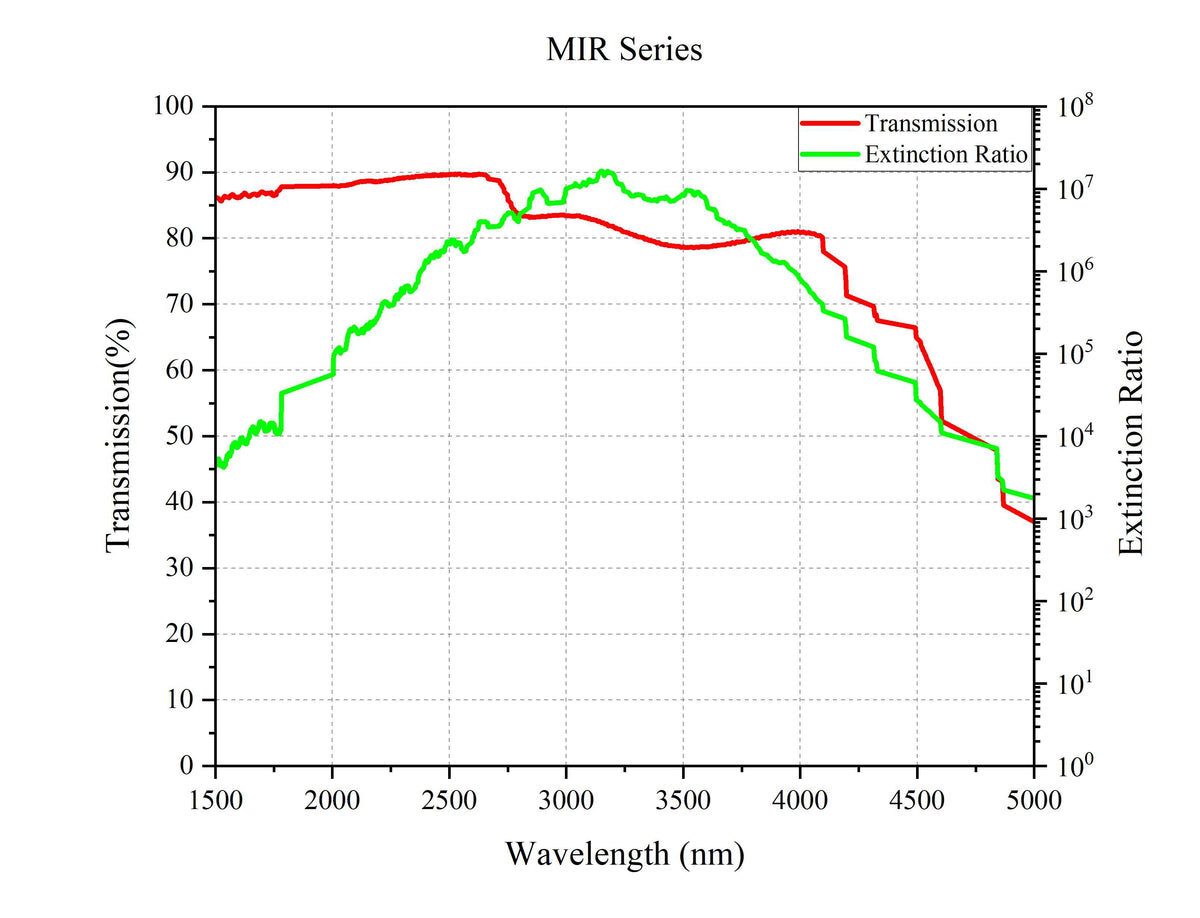

Curve - MIR
