What wavelength range does Nanoparticle Thin Film Linear Polarizers NFLP12-VIS600 support?

Nanoparticle Thin Film Linear Polarizers NFLP12-VIS600 operates at a center wavelength of 510.0 nm.

What documentation is available for Nanoparticle Thin Film Linear Polarizers NFLP12-VIS600?

The following documents are available for download on the Nanoparticle Thin Film Linear Polarizers NFLP12-VIS600 product page: Spec sheet. CAD drawing.Visit the Documents tab for direct download links.

Is Nanoparticle Thin Film Linear Polarizers NFLP12-VIS600 available for purchase?

Yes, request a quote for pricing and lead time at WaveQuanta.Contact our sales team for current availability and volume pricing.

WaveQuanta

Nanoparticle Thin Film Linear Polarizers NFLP12-VIS600

Name: Nanoparticle Thin Film Linear Polarizers NFLP12-VIS600
Brand: WaveQuanta
SKU: NFLP12-VIS600
Price: 561.11 SGD
Availability: InStock

NFLP12-VIS600

$561.11

In Stock

Key Specifications

Wavelength 510.0nm

Request Quote

Design Tools

Wavelength ↔ Wavenumber Convert between wavelength, frequency, and energy

View all 49 calculators →

RoHS REACH

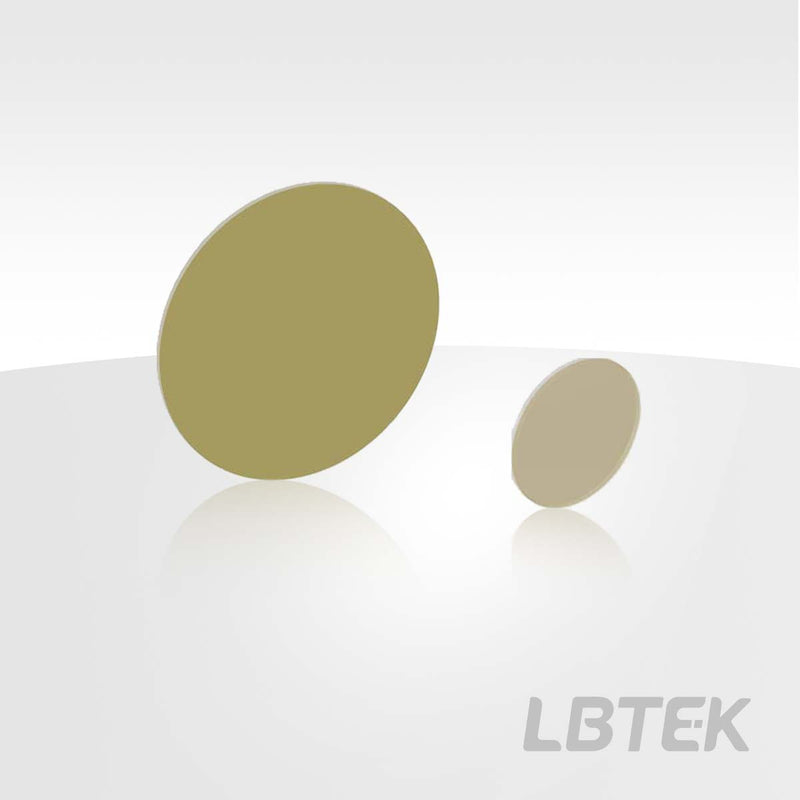

Nanoparticle Thin Film Linear Polarizers — Model NFLP12-VIS600

Silver-nanoparticle thin-film linear polarizer, operating wavelength 510 nm-800 nm, extinction ratio >1000:1@510 nm-800 nm; >10000:1@520 nm-740 nm; >100000:1@530 nm-640 nm, thickness 2.0 mm.

Overview

These nanoparticle thin-film linear polarizers are manufactured by embedding elongated silver nanoparticles in soda-lime glass. Compared to polymer polarizers, they offer higher extinction ratio, higher damage threshold, and a broader operating temperature range. Seven types are offered, covering operating wavelengths 365 nm-395 nm and 480 nm-5000 nm, each with characteristic extinction ratios. Good performance is maintained within ±20° angle of incidence.

Key Features

Extinction ratio: >1000:1@510 nm-800 nm; >10000:1@520 nm-740 nm; >100000:1@530 nm-640 nm
Operating wavelength: 510 nm-800 nm
Damage threshold: CW linearly polarized, perpendicular to transmission axis: 1 W/cm²; CW linearly polarized, parallel to transmission axis: 5 W/cm²
Angle of incidence: 0°±20°
Operating temperature: -20°C ~ 120°C
Surface finish: 40/20

Diameter Tolerance	+0/-0.2 mm
Clear Aperture	90%CA
Thickness	2.0 mm
Thickness Tolerance	±0.2 mm
Operating Wavelength	510 nm-800 nm
Transmitted Wavefront Error (TWE)(@633 nm)	<λ/4@Ø10 mm
Operating Temperature	-20°C ~ 120°C
Damage Threshold	CW linearly polarized, perpendicular to transmission axis: 1 W/cm²; CW linearly polarized, parallel to transmission axis: 5 W/cm²
Optical Element Diameter	12.5 mm
Extinction Ratio	>1000:1@510 nm-800 nm; >10000:1@520 nm-740 nm; >100000:1@530 nm-640 nm
Angle of Incidence (AOI)	0°±20°
Surface Quality (Scratch/Dig)	40/20

Specification Sheet PDF — Download

CAD Drawing Download

3D Model (STL) STL — Download

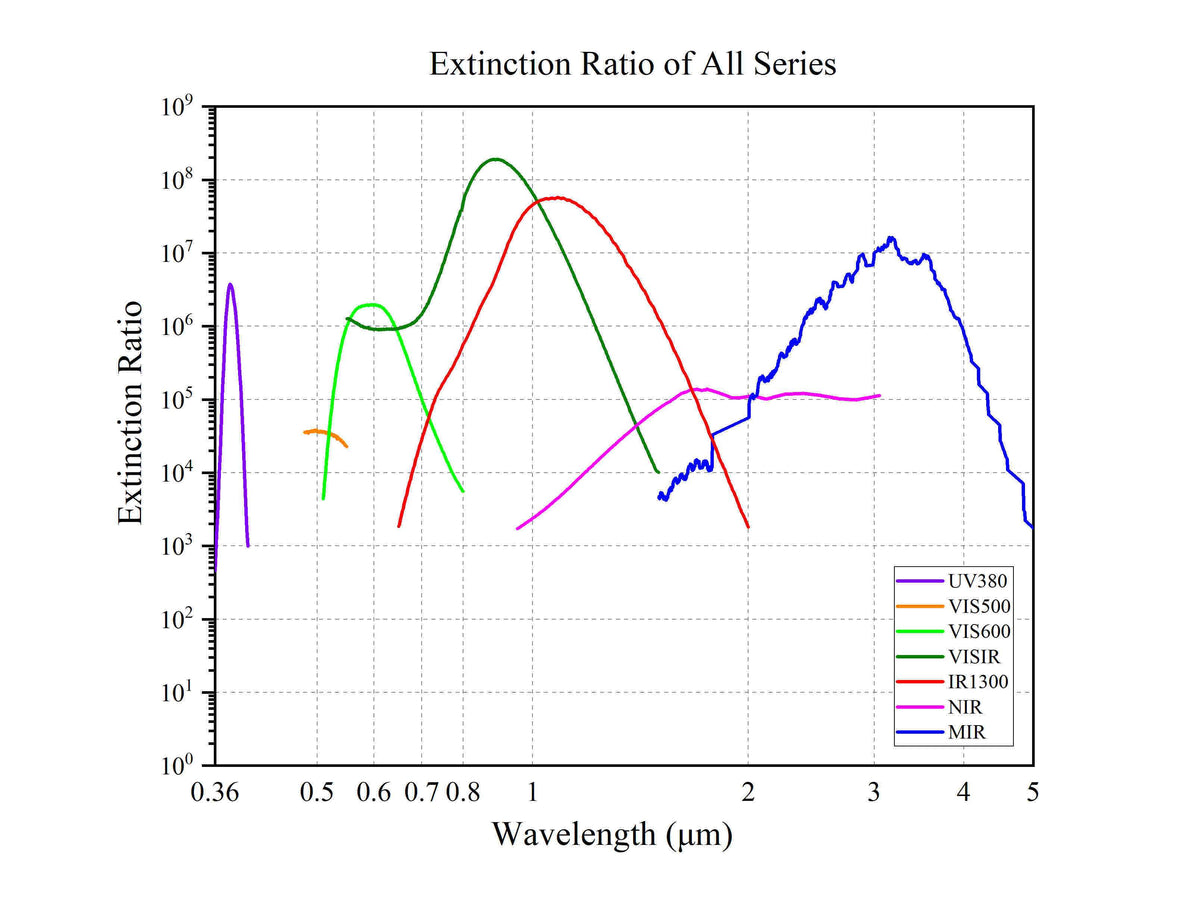

Curve - Extinction Ratio of All Series

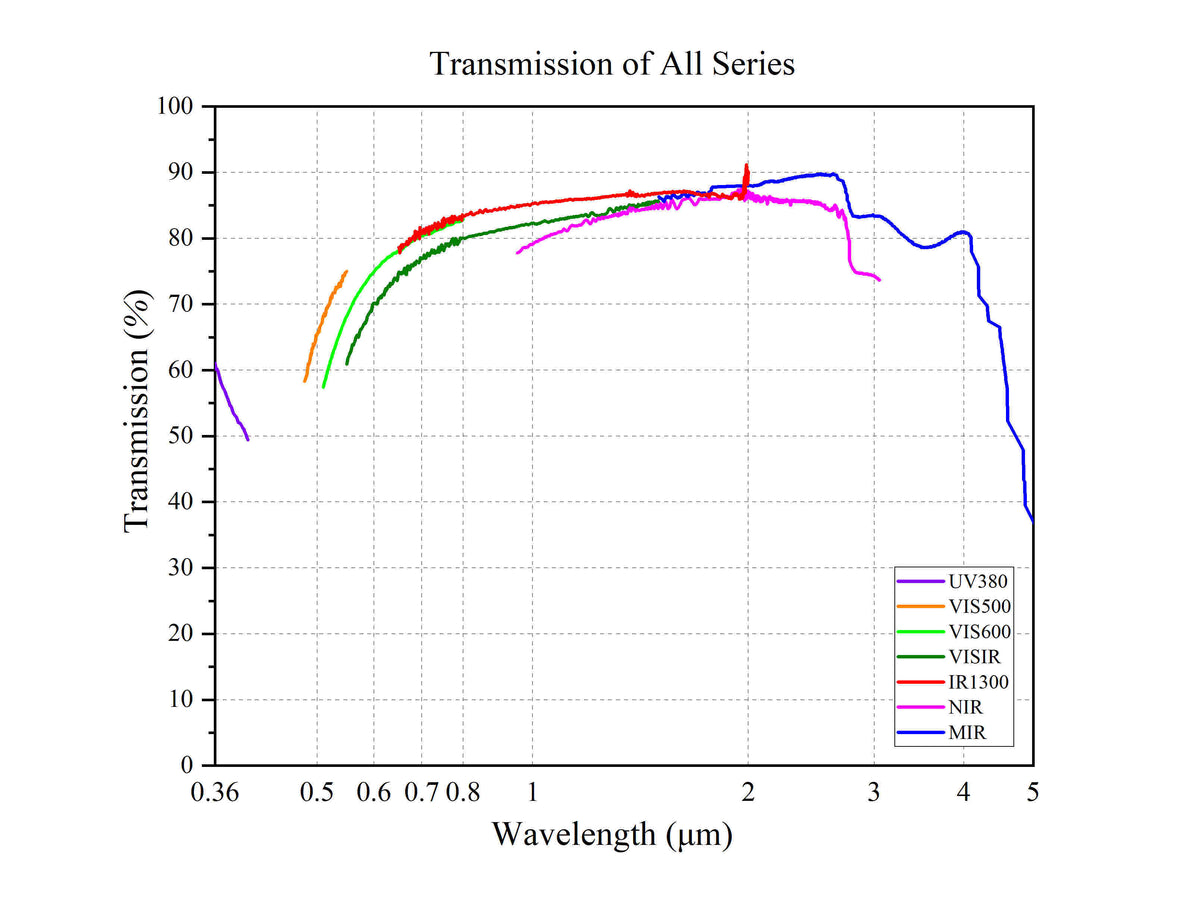

Curve - Transmission of All Series

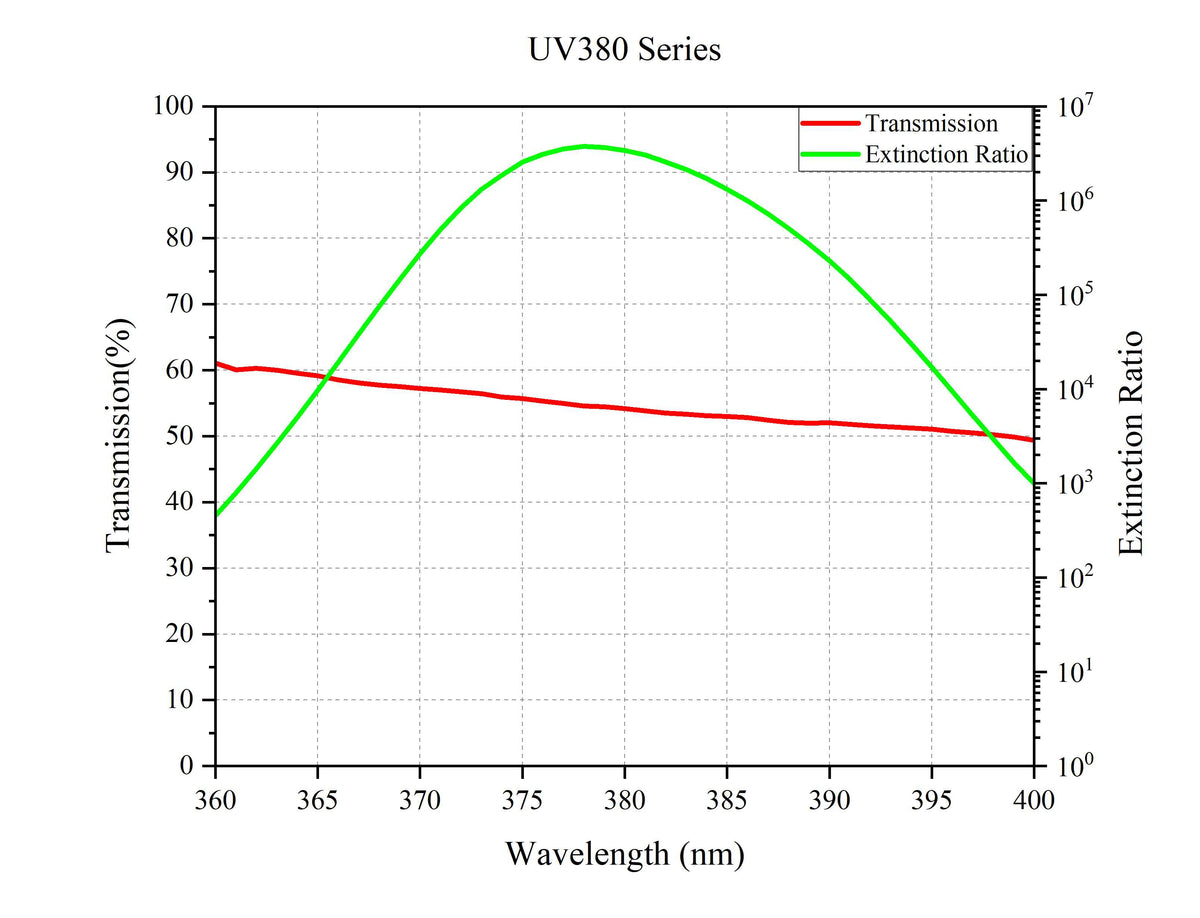

Curve - UV380

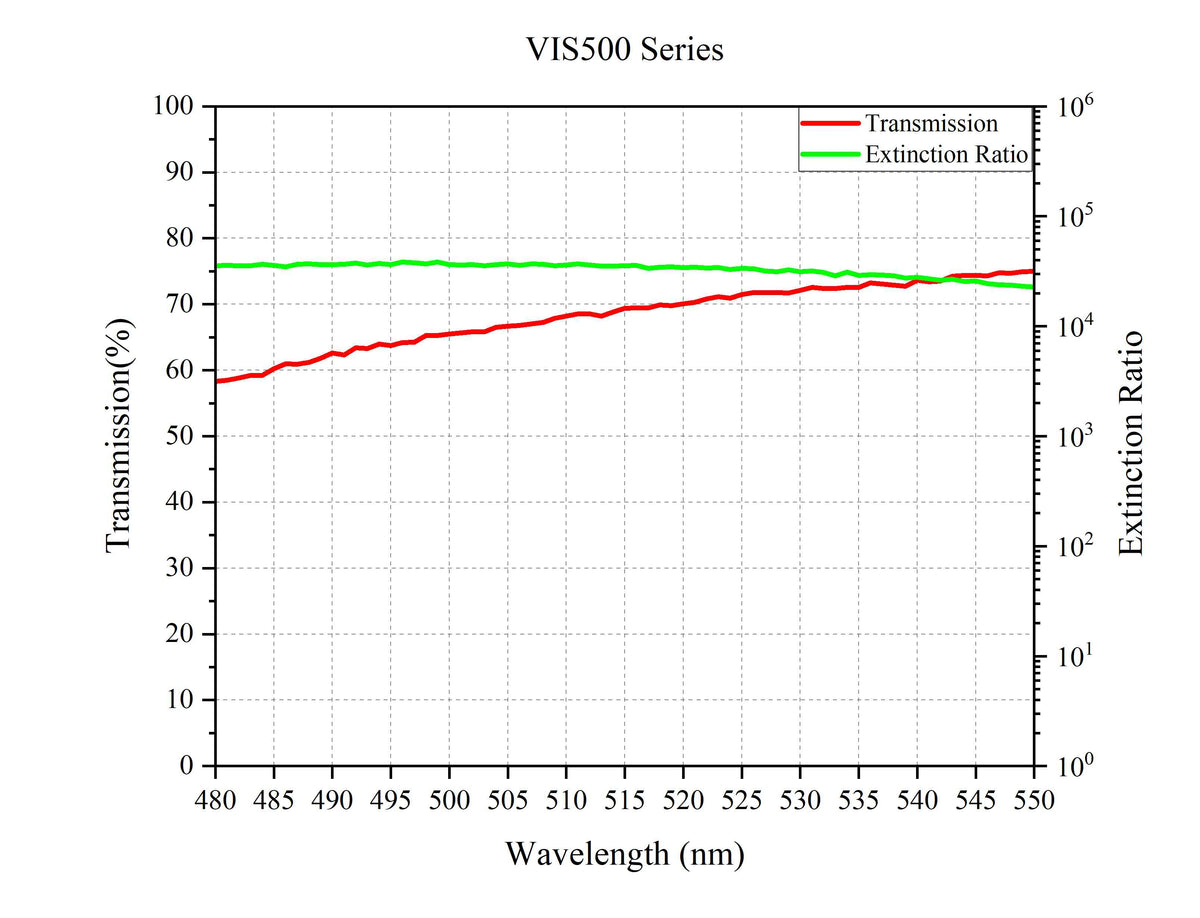

Curve - VIS500

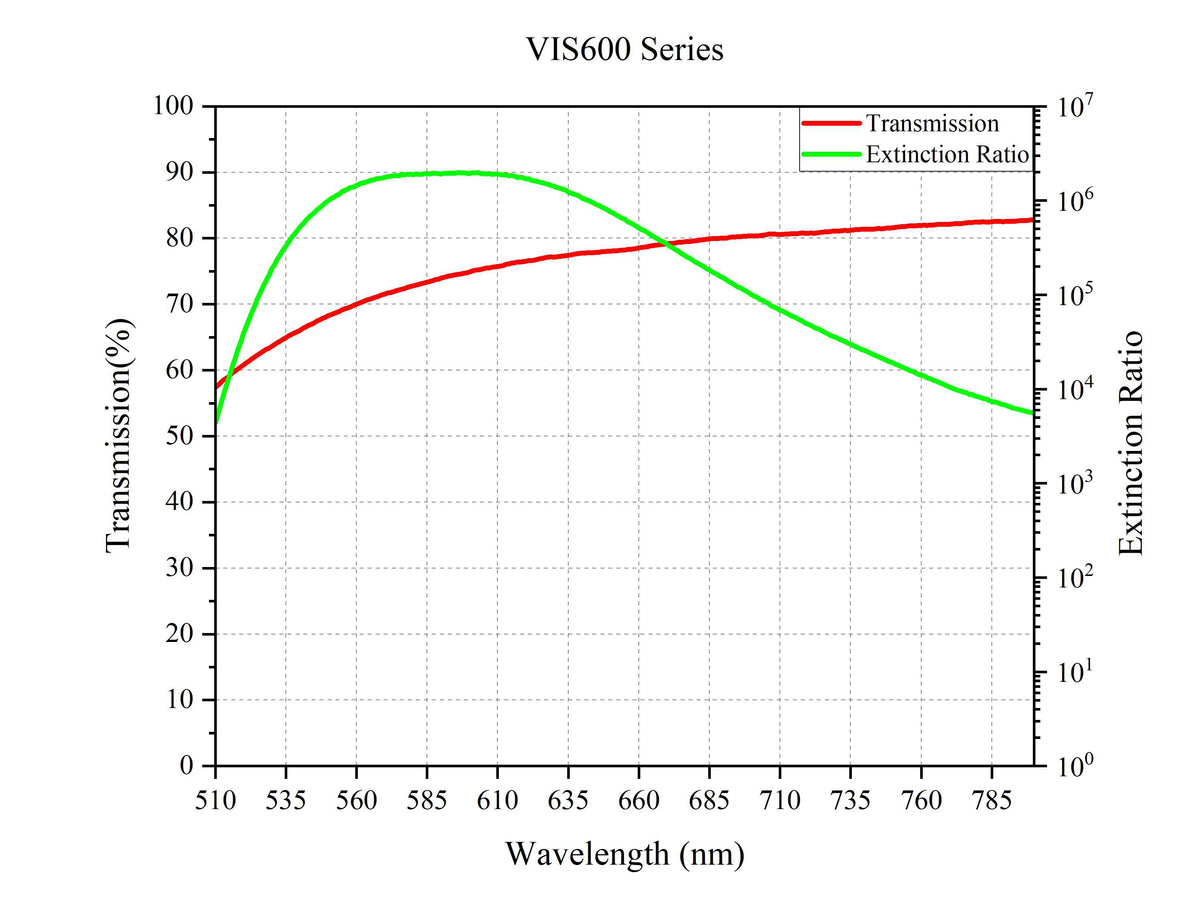

Curve - VIS600

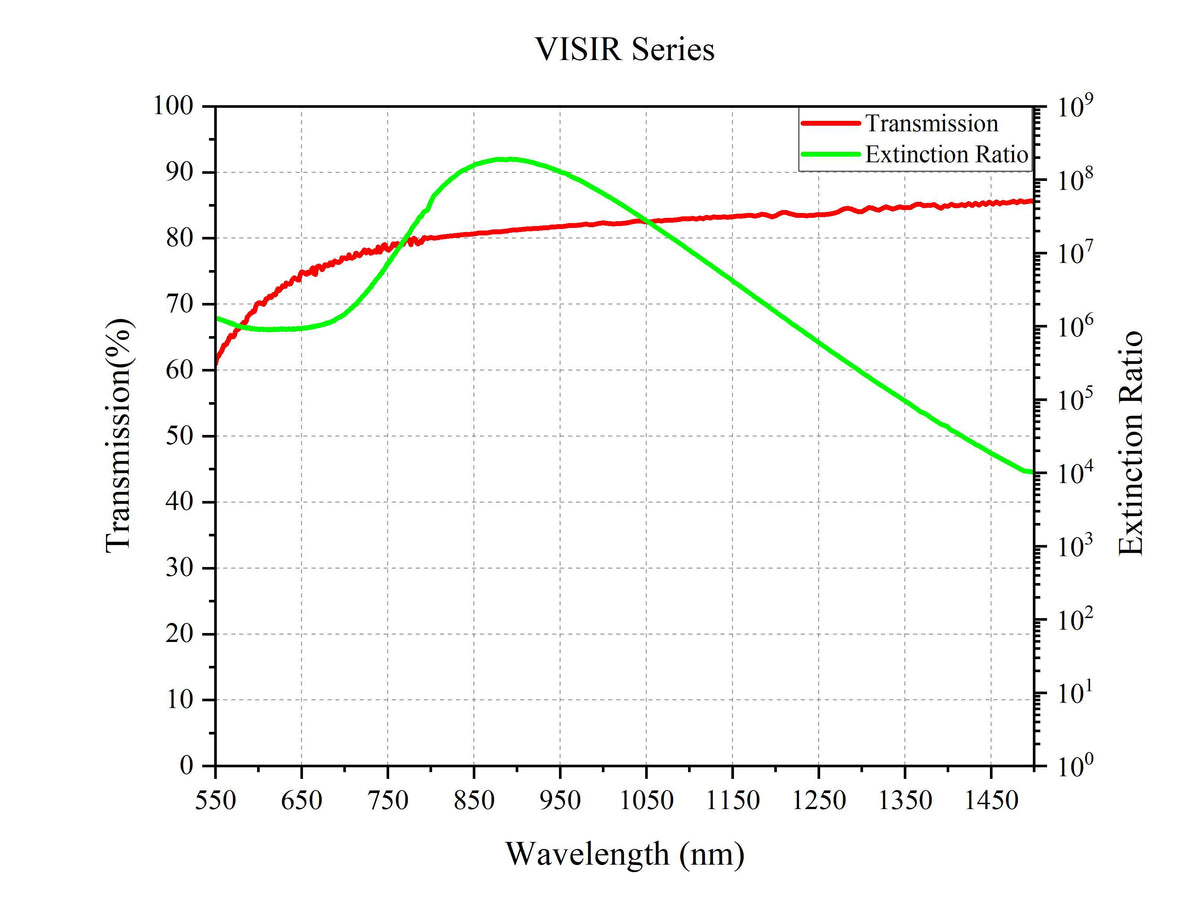

Curve - VISIR

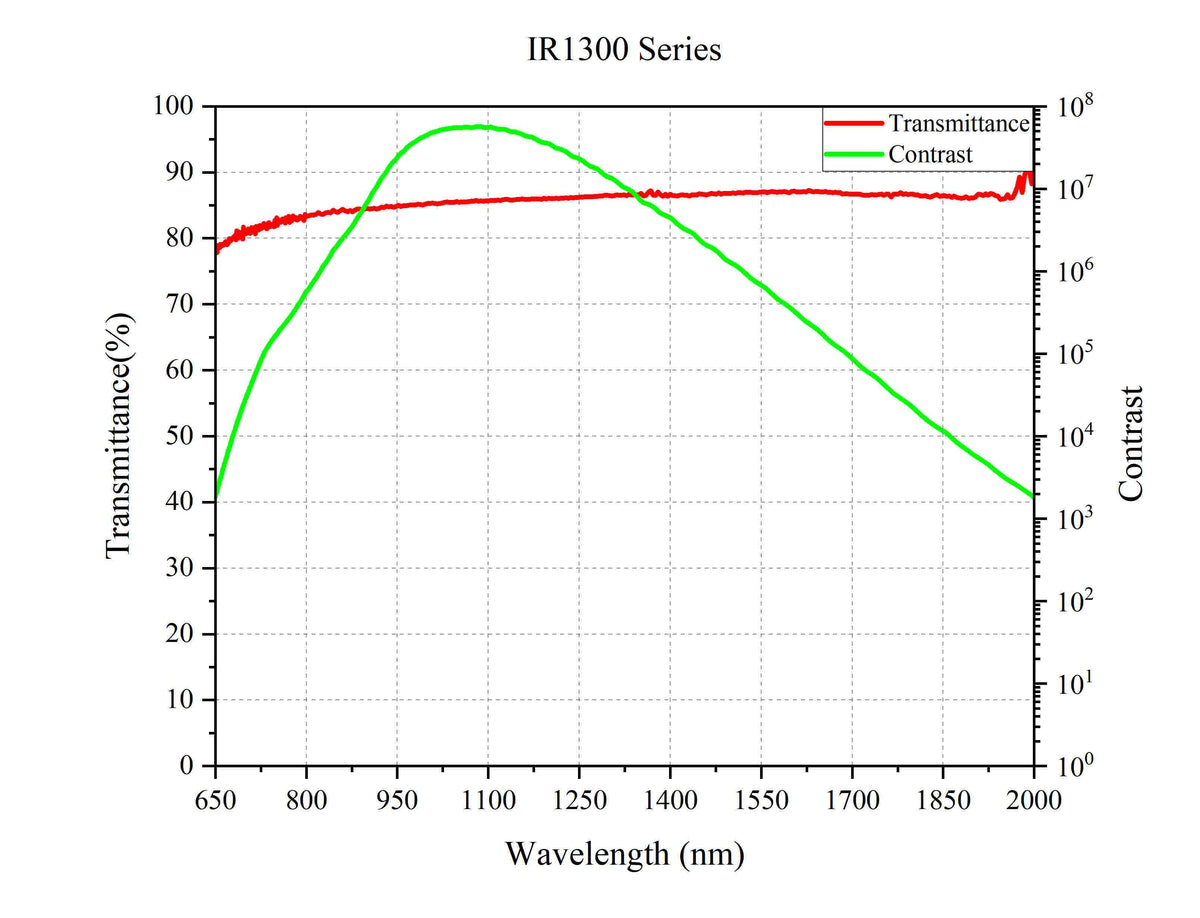

Reference Curve of Transmission and Extinction Ratio of IR1300 Series

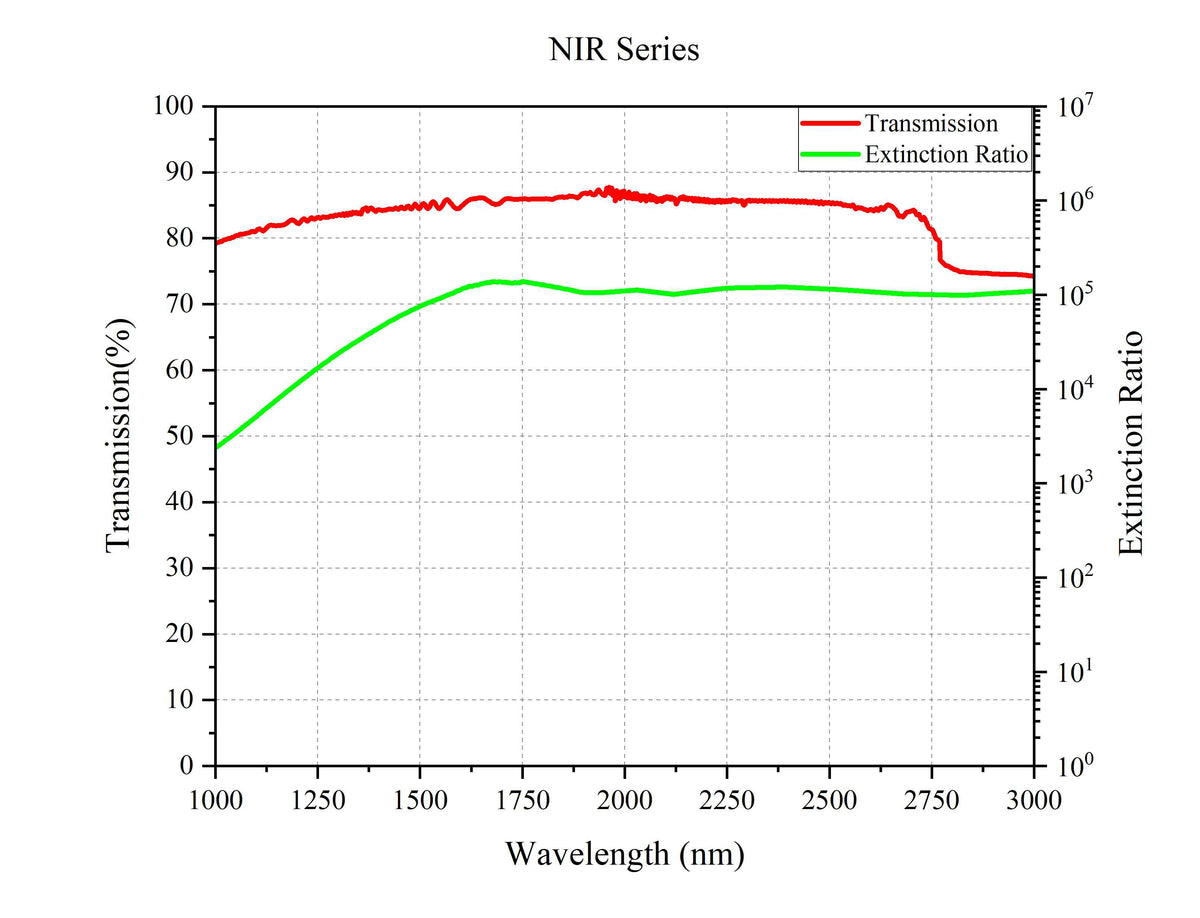

Curve - NIR

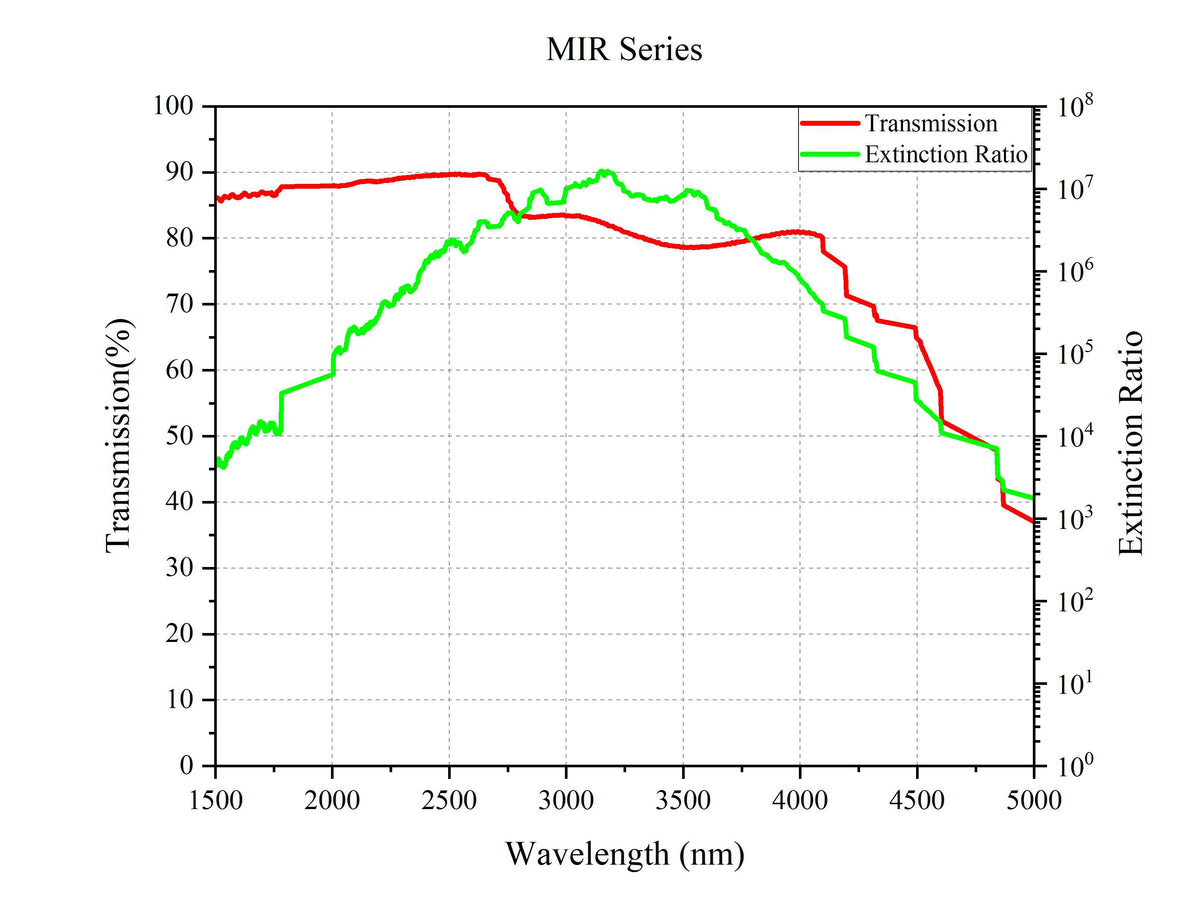

Curve - MIR

Product Family: Nanoparticle Thin Film Linear Polarizers (40 variants)

Product ▴▾	SKU	Optical Element Diameter ▴▾	Thickness ▴▾	Operating Wavelength ▴▾
Nanoparticle Thin Film Linear Polarizers NFLP25-IR1300-AR	`NFLP25-IR1300-AR`	25.0 mm	2.0 mm	1250 nm-1650 nm	View
Nanoparticle Thin Film Linear Polarizers NFLP25-VIS600-AR	`NFLP25-VIS600-AR`	25.0 mm	2.0 mm	510 nm-750 nm	View
Nanoparticle Thin Film Linear Polarizers NFLP25-VISIR-AR	`NFLP25-VISIR-AR`	25.0 mm	2.0 mm	600 nm-1200 nm	View
Nanoparticle Thin Film Linear Polarizers NFLP12-VISIR-AR	`NFLP12-VISIR-AR`	12.5 mm	2.0 mm	600 nm-1200 nm	View
Nanoparticle Thin Film Linear Polarizers NFLP12-VIS600-AR	`NFLP12-VIS600-AR`	12.5 mm	2.0 mm	510 nm-750 nm	View
Nanoparticle Thin Film Linear Polarizers MNFLP25-IR1300-AR	`MNFLP25-IR1300-AR`	25.0 mm	2.0 mm	1250 nm-1650 nm	View
Nanoparticle Thin Film Linear Polarizers MNFLP25-VISIR-AR	`MNFLP25-VISIR-AR`	25.0 mm	2.0 mm	600 nm-1200 nm	View
Nanoparticle Thin Film Linear Polarizers MNFLP25-VIS600-AR	`MNFLP25-VIS600-AR`	25.0 mm	2.0 mm	510 nm-750 nm	View
Nanoparticle Thin Film Linear Polarizers NFLP12-IR1300-AR	`NFLP12-IR1300-AR`	12.5 mm	2.0 mm	1250 nm-1650 nm	View
Nanoparticle Thin Film Linear Polarizers MNFLP12-VIS600-AR	`MNFLP12-VIS600-AR`	12.5 mm	2.0 mm	510 nm-750 nm	View
Nanoparticle Thin Film Linear Polarizers MNFLP12-VISIR-AR	`MNFLP12-VISIR-AR`	12.5 mm	2.0 mm	510 nm-740 nm	View
Nanoparticle Thin Film Linear Polarizers MNFLP12-IR1300-AR	`MNFLP12-IR1300-AR`	12.5 mm	2.0 mm	1250 nm-1650 nm	View
Nanoparticle Thin Film Linear Polarizers MNFLP25-VISIR	`MNFLP25-VISIR`	25.0 mm	2.0 mm	550 nm-1500 nm	View
Nanoparticle Thin Film Linear Polarizers MNFLP25-VIS600	`MNFLP25-VIS600`	25.0 mm	2.0 mm	510 nm-800 nm	View
Nanoparticle Thin Film Linear Polarizers MNFLP25-VIS500	`MNFLP25-VIS500`	25.0 mm	2.0 mm	480 nm-550 nm	View
Nanoparticle Thin Film Linear Polarizers MNFLP25-UV380	`MNFLP25-UV380`	25.0 mm	2.0 mm	365 nm-395 nm	View
Nanoparticle Thin Film Linear Polarizers MNFLP12-VISIR	`MNFLP12-VISIR`	12.5 mm	2.0 mm	550 nm-1500 nm	View
Nanoparticle Thin Film Linear Polarizers MNFLP12-VIS600	`MNFLP12-VIS600`	12.5 mm	2.0 mm	510 nm-800 nm	View
Nanoparticle Thin Film Linear Polarizers MNFLP12-VIS500	`MNFLP12-VIS500`	12.5 mm	2.0 mm	480 nm-550 nm	View
Nanoparticle Thin Film Linear Polarizers MNFLP12-UV380	`MNFLP12-UV380`	12.5 mm	2.0 mm	365 nm-395 nm	View
Nanoparticle Thin Film Linear Polarizers MNFLP12-IR1300	`MNFLP12-IR1300`	12.5 mm	2.0 mm	650 nm-2000 nm	View
Nanoparticle Thin Film Linear Polarizers MNFLP25-IR1300	`MNFLP25-IR1300`	25.0 mm	2.0 mm	650 nm-2000 nm	View
Nanoparticle Thin Film Linear Polarizers MNFLP12-NIR	`MNFLP12-NIR`	12.5 mm	0.25 mm	1000 nm-3000 nm	View
Nanoparticle Thin Film Linear Polarizers MNFLP12-MIR	`MNFLP12-MIR`	12.5 mm	0.2 mm	1500 nm-5000 nm	View
Nanoparticle Thin Film Linear Polarizers MNFLP25-NIR	`MNFLP25-NIR`	25.0 mm	0.25 mm	1000 nm-3000 nm	View
Nanoparticle Thin Film Linear Polarizers MNFLP25-MIR	`MNFLP25-MIR`	25.0 mm	0.2 mm	1500 nm-5000 nm	View
Nanoparticle Thin Film Linear Polarizers NFLP25-MIR	`NFLP25-MIR`	25.0 mm	0.2 mm	1500 nm-5000 nm	View
Nanoparticle Thin Film Linear Polarizers NFLP25-NIR	`NFLP25-NIR`	25.0 mm	0.25 mm	1000 nm-3000 nm	View
Nanoparticle Thin Film Linear Polarizers NFLP25-VISIR	`NFLP25-VISIR`	25.0 mm	2.0 mm	550 nm-1500 nm	View
Nanoparticle Thin Film Linear Polarizers NFLP25-VIS600	`NFLP25-VIS600`	25.0 mm	2.0 mm	510 nm-800 nm	View
Nanoparticle Thin Film Linear Polarizers NFLP25-VIS500	`NFLP25-VIS500`	25.0 mm	2.0 mm	480 nm-550 nm	View
Nanoparticle Thin Film Linear Polarizers NFLP25-UV380	`NFLP25-UV380`	25.0 mm	2.0 mm	365 nm-395 nm	View
Nanoparticle Thin Film Linear Polarizers NFLP12-MIR	`NFLP12-MIR`	12.5 mm	0.2 mm	1500 nm-5000 nm	View
Nanoparticle Thin Film Linear Polarizers NFLP12-NIR	`NFLP12-NIR`	12.5 mm	0.25 mm	1000 nm-3000 nm	View
Nanoparticle Thin Film Linear Polarizers NFLP12-VISIR	`NFLP12-VISIR`	12.5 mm	2.0 mm	550 nm-1500 nm	View
Nanoparticle Thin Film Linear Polarizers NFLP12-VIS600 Current	`NFLP12-VIS600`	12.5 mm	2.0 mm	510 nm-800 nm
Nanoparticle Thin Film Linear Polarizers NFLP12-VIS500	`NFLP12-VIS500`	12.5 mm	2.0 mm	480 nm-550 nm	View
Nanoparticle Thin Film Linear Polarizers NFLP12-UV380	`NFLP12-UV380`	12.5 mm	2.0 mm	365 nm-395 nm	View
Nanoparticle Thin Film Linear Polarizers NFLP12-IR1300	`NFLP12-IR1300`	12.5 mm	2.0 mm	650 nm-2000 nm	View
Nanoparticle Thin Film Linear Polarizers NFLP25-IR1300	`NFLP25-IR1300`	25.0 mm	2.0 mm	650 nm-2000 nm	View
