Nanoparticle Thin Film Linear Polarizers MNFLP25-MIR

Name: Nanoparticle Thin Film Linear Polarizers MNFLP25-MIR
Brand: WaveQuanta
SKU: MNFLP25-MIR
Price: 3091.44 SGD
Availability: InStock

MNFLP25-MIR

$3,091.44

In Stock

Key Specifications

Wavelength 1500.0nm

Request Quote

Design Tools

Wavelength \u2194 Wavenumber Convert between wavelength, frequency, and energy

View all 49 calculators →

RoHS REACH

Nanoparticle Thin Film Linear Polarizers — Model MNFLP25-MIR

Silver-nanoparticle thin-film linear polarizer, operating wavelength 1500 nm-5000 nm, extinction ratio >1000:1@1500 nm-5000 nm; >10000:1@2000 nm-4500 nm, thickness 0.2 mm.

Overview

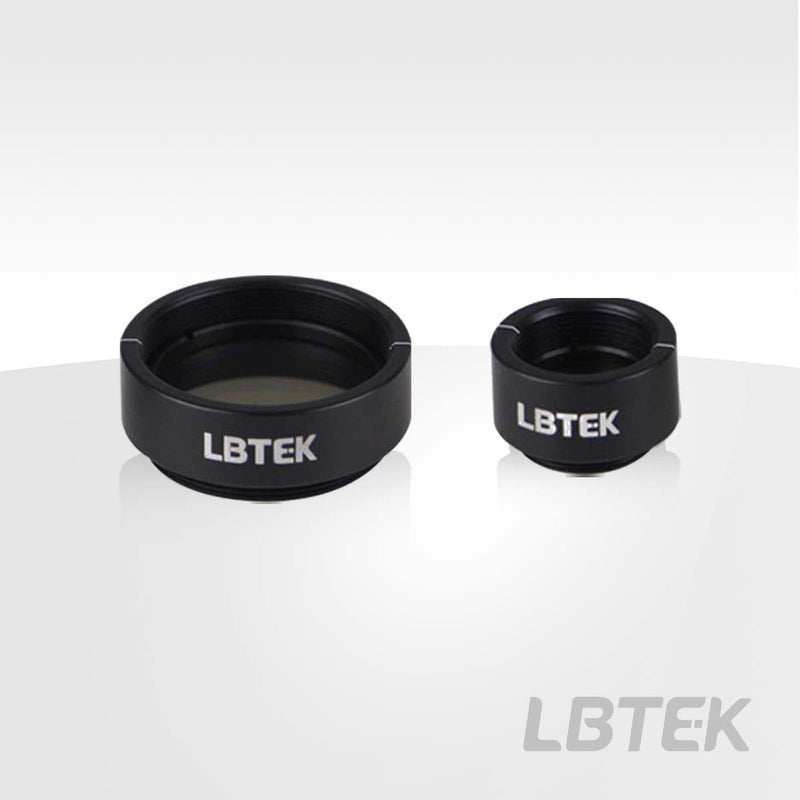

Mounted version of LBTEK nanoparticle thin-film linear polarizer, housed in an SM1 lens tube with internal/external threads compatible with standard Ø25.4 mm (1 inch) optomechanics. Features the same embedded silver nanoparticle film providing high extinction ratio, high damage threshold, and wide operating temperature range across ±20° AOI.

Key Features

Extinction ratio: >1000:1@1500 nm-5000 nm; >10000:1@2000 nm-4500 nm
Operating wavelength: 1500 nm-5000 nm
Damage threshold: CW linearly polarized, perpendicular to transmission axis: 10 W/cm2; CW linearly polarized, parallel to transmission axis: 25 W/cm2
Angle of incidence: 0°±20°
Operating temperature: -20°C ~ 120°C
Surface finish: 60/40

Applications

Polarization control in scientific and industrial optical systems
High-contrast imaging and spectroscopy
Laser polarization filtering
Applications requiring elevated operating temperature or laser damage threshold
UV-resistant and chemically durable polarization filtering

Diameter tolerance	+0.0/-0.2 mm
Clear Aperture	Ø20.7 mm
Thickness	0.2 mm
Thickness tolerance	±0.05 mm
Operating Wavelength	1500 nm-5000 nm
Transmitted Wavefront Error (TWE) (@633 nm)	<3λ@Ø10 mm
Operating Temperature	-20°C ~ 120°C
Damage threshold	CW linearly polarized, perpendicular to transmission axis: 10 W/cm2; CW linearly polarized, parallel to transmission axis: 25 W/cm2
Optical element diameter	25.0 mm
Extinction ratio	>1000:1@1500 nm-5000 nm; >10000:1@2000 nm-4500 nm
Angle of incidence	0°±20°
Surface finish (scratches/pitting)	60/40
Mechanical housing	SM1-8A (lens tube, SM1 internal/external thread)
Mechanical housing diameter	30.5 mm
Mechanical housing diameter tolerance	+0.00/-0.05 mm
Mechanical housing thickness	12.0 mm (threaded length)
Installation Service Included	Yes

Specification Sheet PDF — Download

CAD Drawing Download

3D Model (STL) STL — Download

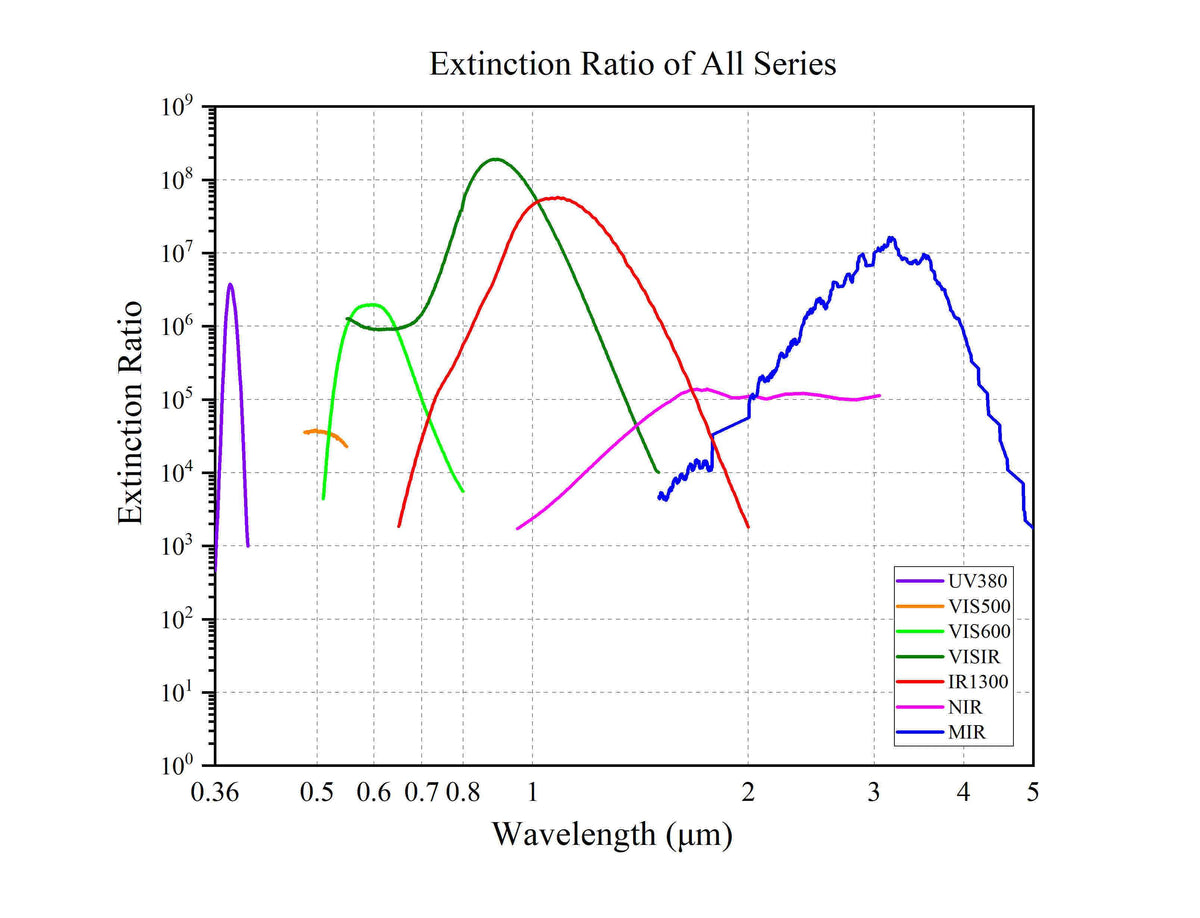

Curve - Extinction Ratio of All Series

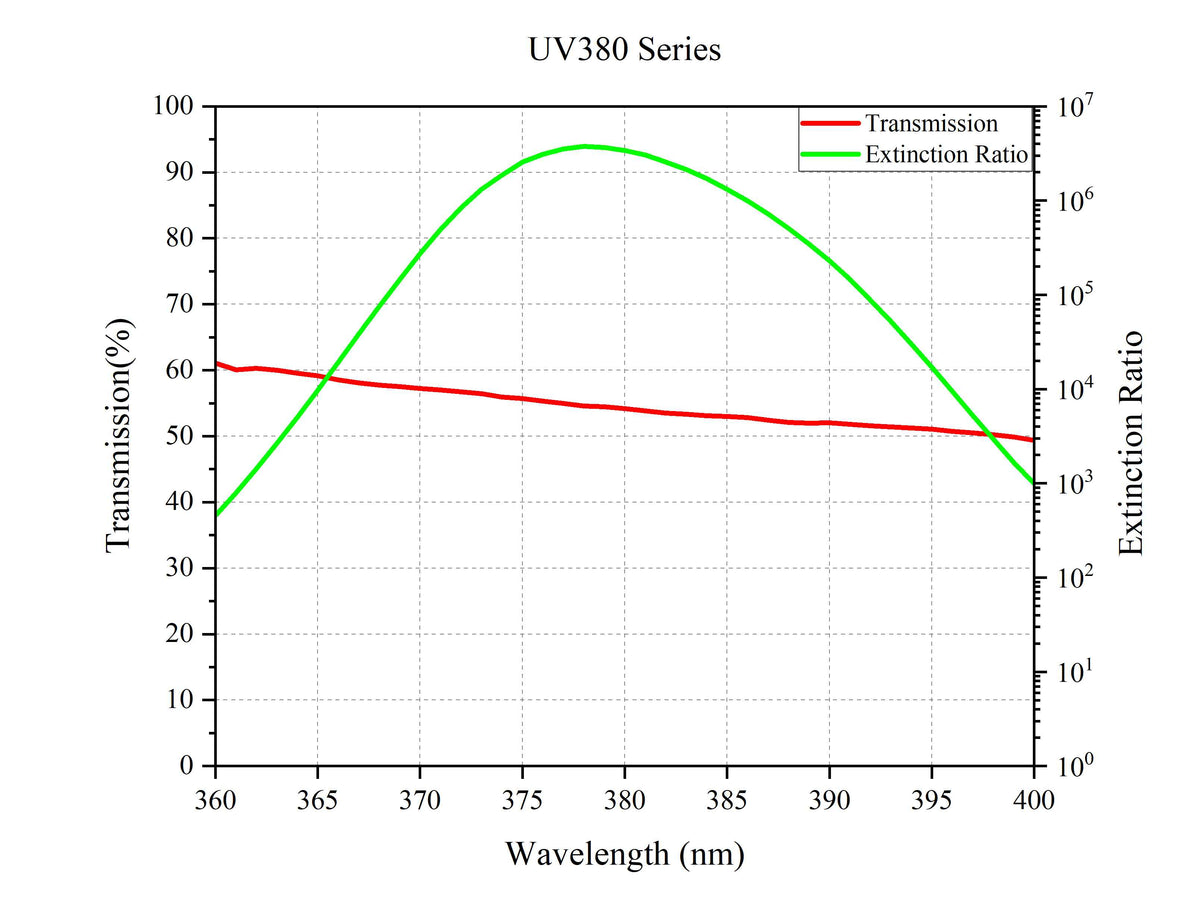

Curve - UV380

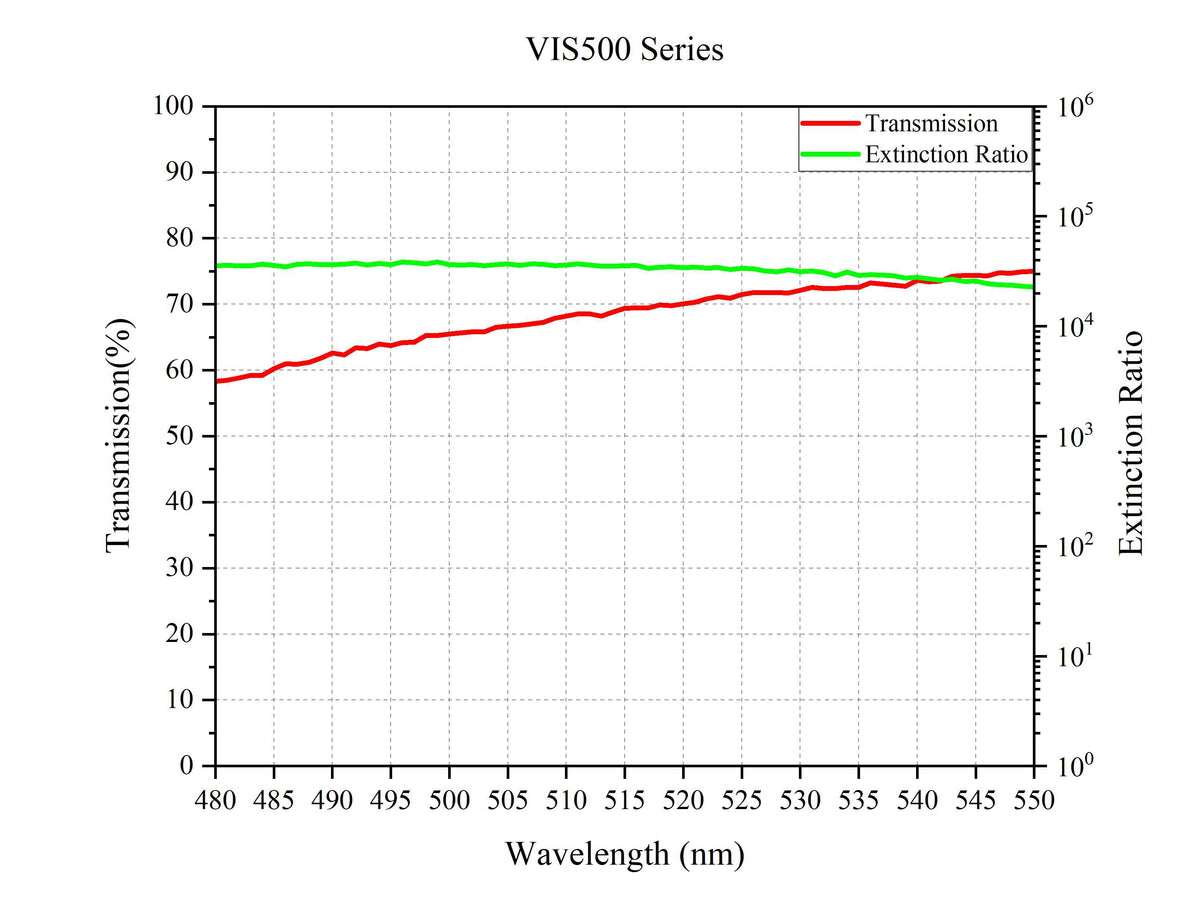

Curve - VIS500

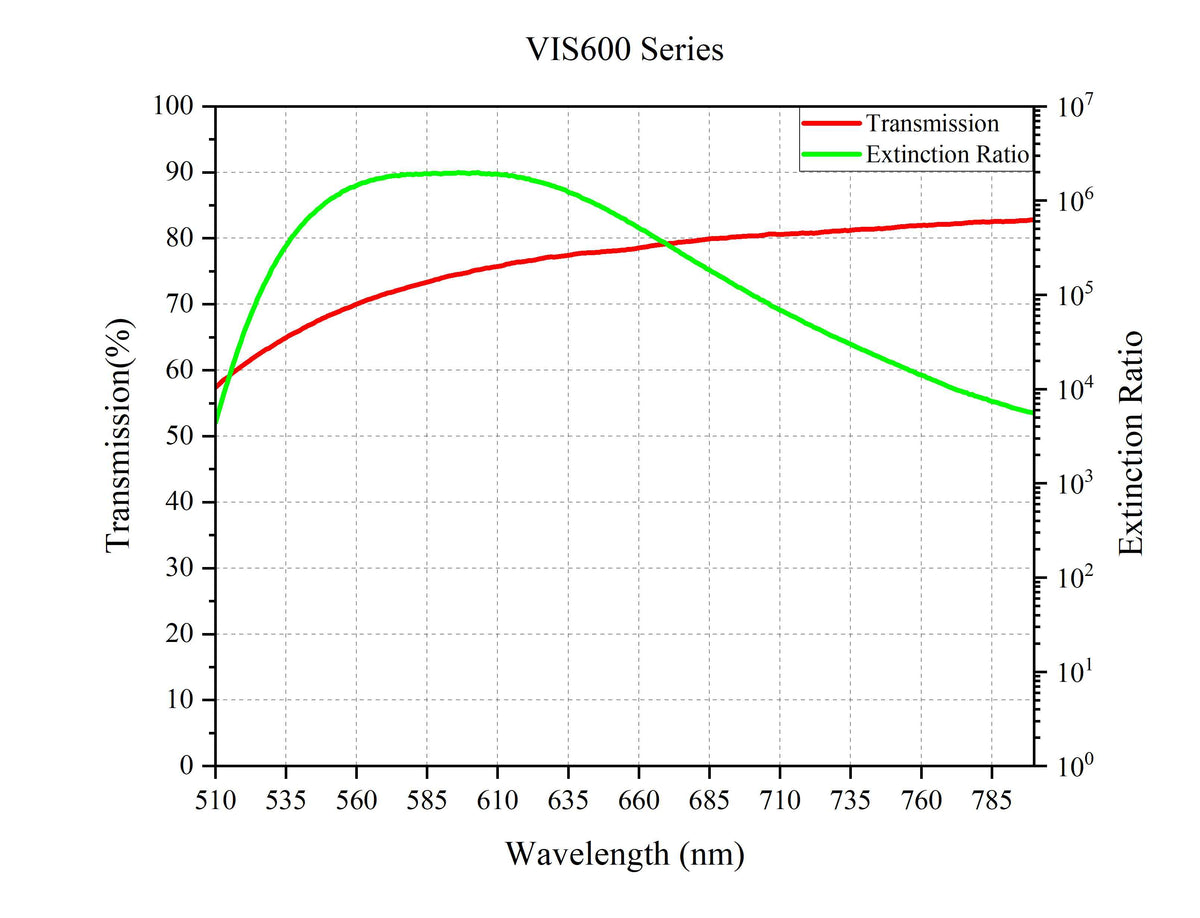

Curve - VIS600

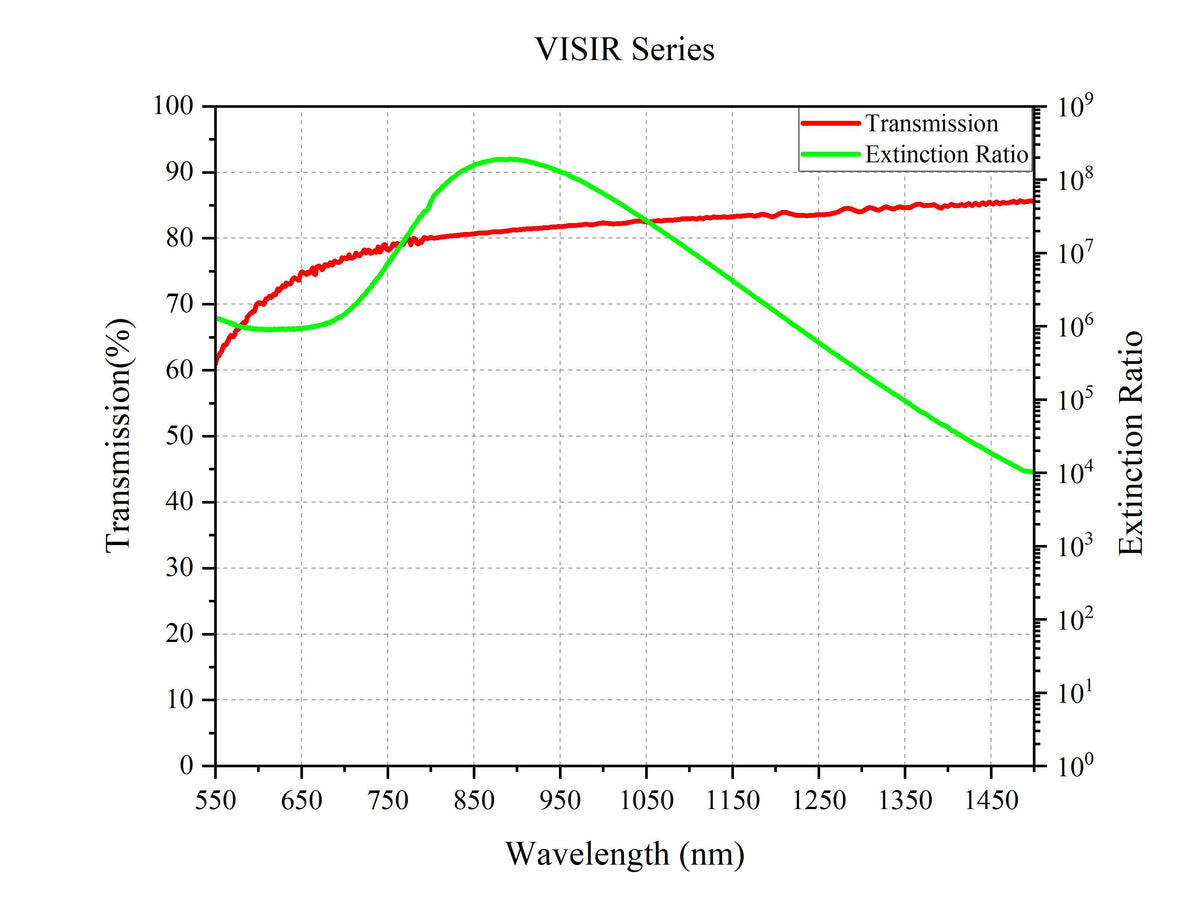

Curve - VISIR

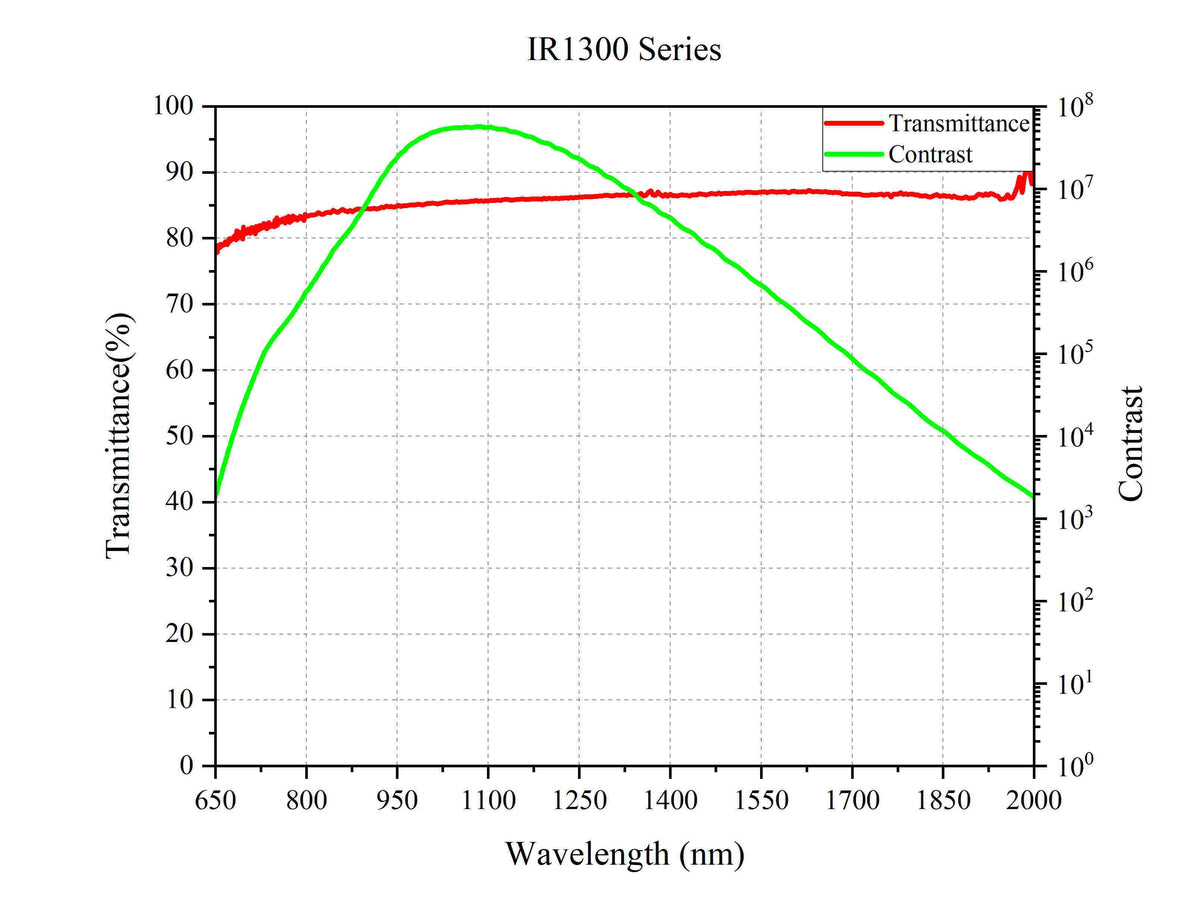

Reference Curve of Transmission and Extinction Ratio of IR1300 Series

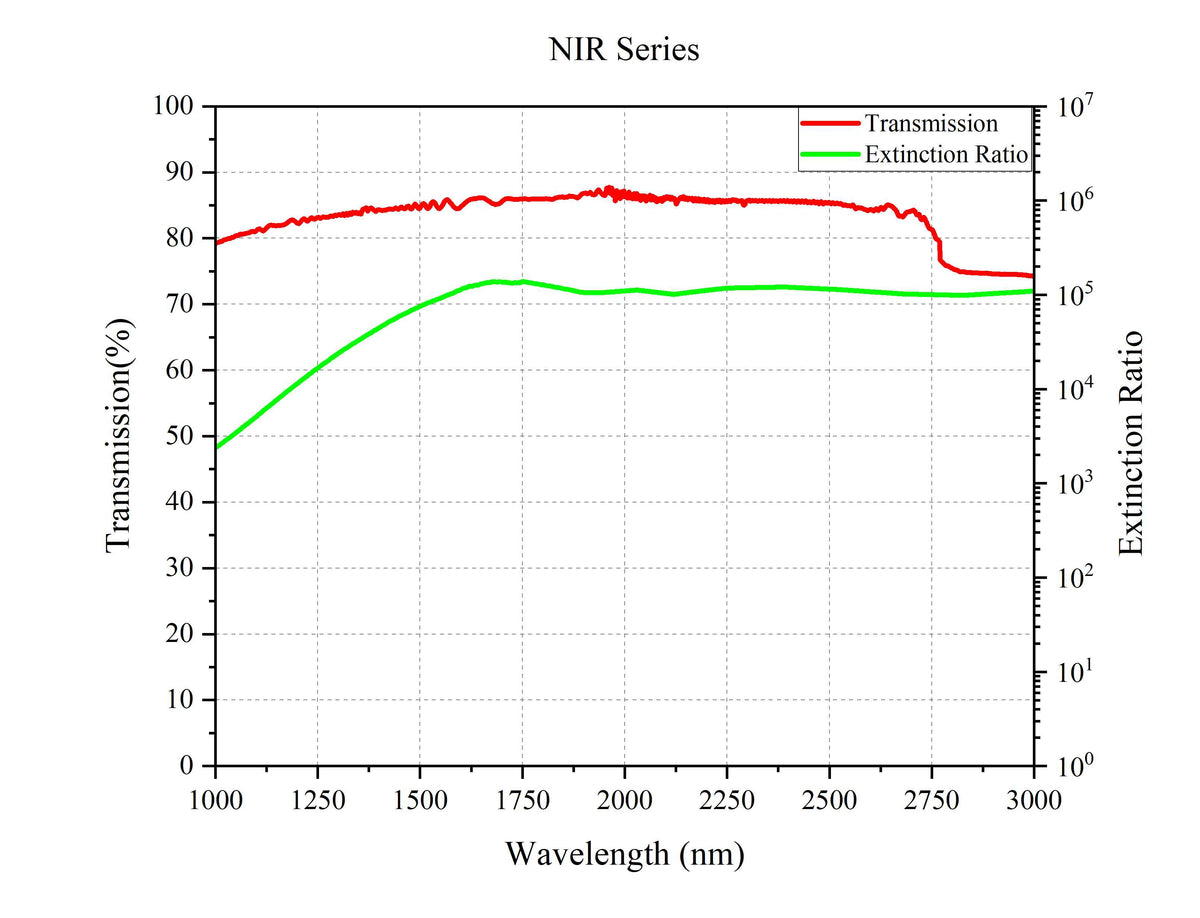

Curve - NIR

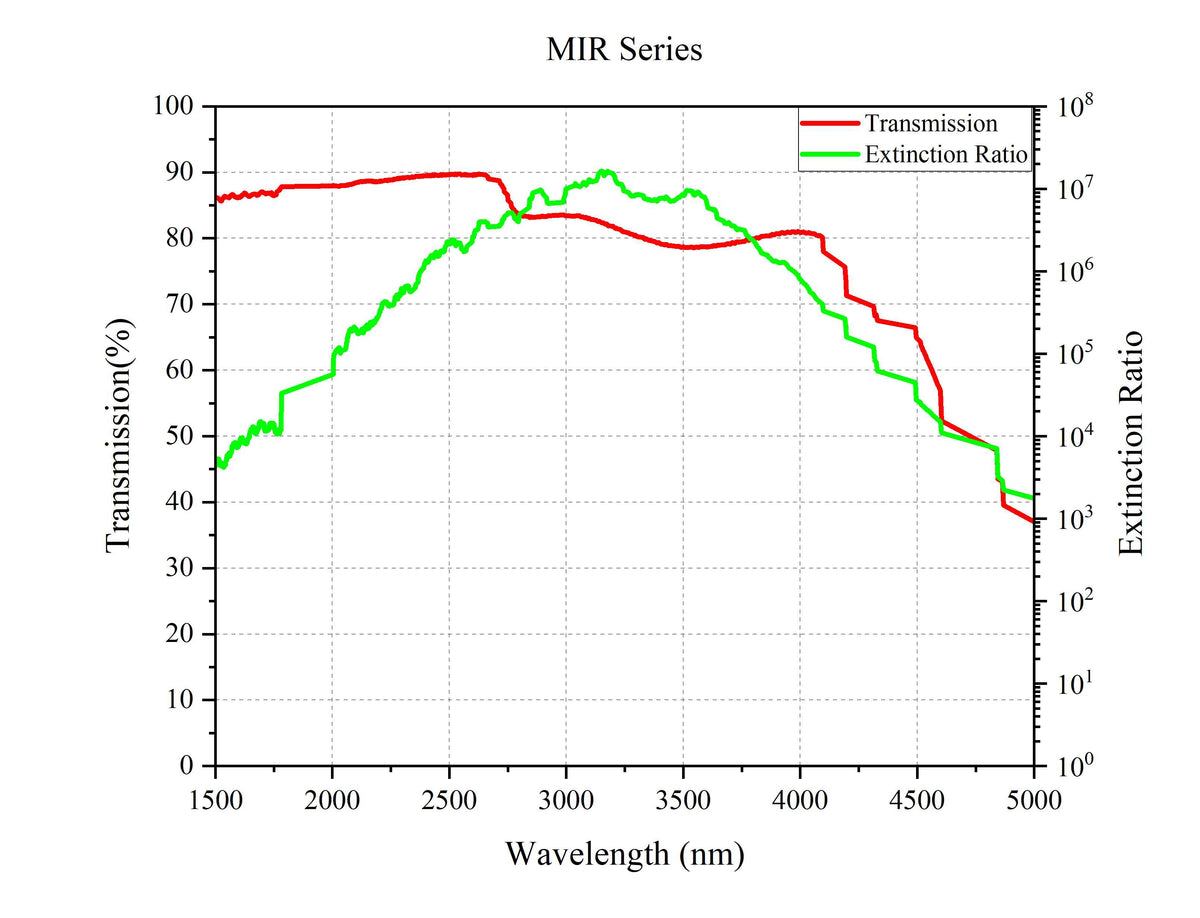

Curve - MIR

Product Family: Nanoparticle Thin Film Linear Polarizers (28 variants)

Product ▴▾	SKU	Size ▴▾	Clear Aperture ▴▾	Operating Wavelength ▴▾
Nanoparticle Thin Film Linear Polarizers MNFLP25-VISIR	`MNFLP25-VISIR`	25.0 mm	Ø20.7 mm	550 nm-1500 nm	View
Nanoparticle Thin Film Linear Polarizers MNFLP25-VIS600	`MNFLP25-VIS600`	25.0 mm	Ø20.7 mm	510 nm-800 nm	View
Nanoparticle Thin Film Linear Polarizers MNFLP25-VIS500	`MNFLP25-VIS500`	25.0 mm	Ø20.7 mm	480 nm-550 nm	View
Nanoparticle Thin Film Linear Polarizers MNFLP25-UV380	`MNFLP25-UV380`	25.0 mm	Ø20.7 mm	365 nm-395 nm	View
Nanoparticle Thin Film Linear Polarizers MNFLP12-VISIR	`MNFLP12-VISIR`	12.5 mm	Ø8.1 mm	550 nm-1500 nm	View
Nanoparticle Thin Film Linear Polarizers MNFLP12-VIS600	`MNFLP12-VIS600`	12.5 mm	Ø8.1 mm	510 nm-800 nm	View
Nanoparticle Thin Film Linear Polarizers MNFLP12-VIS500	`MNFLP12-VIS500`	12.5 mm	Ø8.1 mm	480 nm-550 nm	View
Nanoparticle Thin Film Linear Polarizers MNFLP12-UV380	`MNFLP12-UV380`	12.5 mm	Ø8.1 mm	365 nm-395 nm	View
Nanoparticle Thin Film Linear Polarizers MNFLP12-IR1300	`MNFLP12-IR1300`	12.5 mm	Ø8.1 mm	650 nm-2000 nm	View
Nanoparticle Thin Film Linear Polarizers MNFLP25-IR1300	`MNFLP25-IR1300`	25.0 mm	Ø20.7 mm	650 nm-2000 nm	View
Nanoparticle Thin Film Linear Polarizers MNFLP12-NIR	`MNFLP12-NIR`	12.5 mm	Ø8.1 mm	1000 nm-3000 nm	View
Nanoparticle Thin Film Linear Polarizers MNFLP12-MIR	`MNFLP12-MIR`	12.5 mm	Ø8.1 mm	1500 nm-5000 nm	View
Nanoparticle Thin Film Linear Polarizers MNFLP25-NIR	`MNFLP25-NIR`	25.0 mm	Ø20.7 mm	1000 nm-3000 nm	View
Nanoparticle Thin Film Linear Polarizers MNFLP25-MIR Current	`MNFLP25-MIR`	25.0 mm	Ø20.7 mm	1500 nm-5000 nm
Nanoparticle Thin Film Linear Polarizers NFLP25-MIR	`NFLP25-MIR`	25.0 mm	90%CA	1500 nm-5000 nm	View
Nanoparticle Thin Film Linear Polarizers NFLP25-NIR	`NFLP25-NIR`	25.0 mm	90%CA	1000 nm-3000 nm	View
Nanoparticle Thin Film Linear Polarizers NFLP25-VISIR	`NFLP25-VISIR`	25.0 mm	90%CA	550 nm-1500 nm	View
Nanoparticle Thin Film Linear Polarizers NFLP25-VIS600	`NFLP25-VIS600`	25.0 mm	90%CA	510 nm-800 nm	View
Nanoparticle Thin Film Linear Polarizers NFLP25-VIS500	`NFLP25-VIS500`	25.0 mm	90%CA	480 nm-550 nm	View
Nanoparticle Thin Film Linear Polarizers NFLP25-UV380	`NFLP25-UV380`	25.0 mm	90%CA	365 nm-395 nm	View
Nanoparticle Thin Film Linear Polarizers NFLP12-MIR	`NFLP12-MIR`	12.5 mm	90%CA	1500 nm-5000 nm	View
Nanoparticle Thin Film Linear Polarizers NFLP12-NIR	`NFLP12-NIR`	12.5 mm	90%CA	1000 nm-3000 nm	View
Nanoparticle Thin Film Linear Polarizers NFLP12-VISIR	`NFLP12-VISIR`	12.5 mm	90%CA	550 nm-1500 nm	View
Nanoparticle Thin Film Linear Polarizers NFLP12-VIS600	`NFLP12-VIS600`	12.5 mm	90%CA	510 nm-800 nm	View
Nanoparticle Thin Film Linear Polarizers NFLP12-VIS500	`NFLP12-VIS500`	12.5 mm	90%CA	480 nm-550 nm	View
Nanoparticle Thin Film Linear Polarizers NFLP12-UV380	`NFLP12-UV380`	12.5 mm	90%CA	365 nm-395 nm	View
Nanoparticle Thin Film Linear Polarizers NFLP12-IR1300	`NFLP12-IR1300`	12.5 mm	90%CA	650 nm-2000 nm	View
Nanoparticle Thin Film Linear Polarizers NFLP25-IR1300	`NFLP25-IR1300`	25.0 mm	90%CA	650 nm-2000 nm	View
