Nanoparticle Thin Film Linear Polarizers — Model MNFLP12-MIR

Silver-nanoparticle thin-film linear polarizer, operating wavelength 1500 nm-5000 nm, extinction ratio >1000:1@1500 nm-5000 nm; >10000:1@2000 nm-4500 nm, thickness 0.2 mm.

Overview

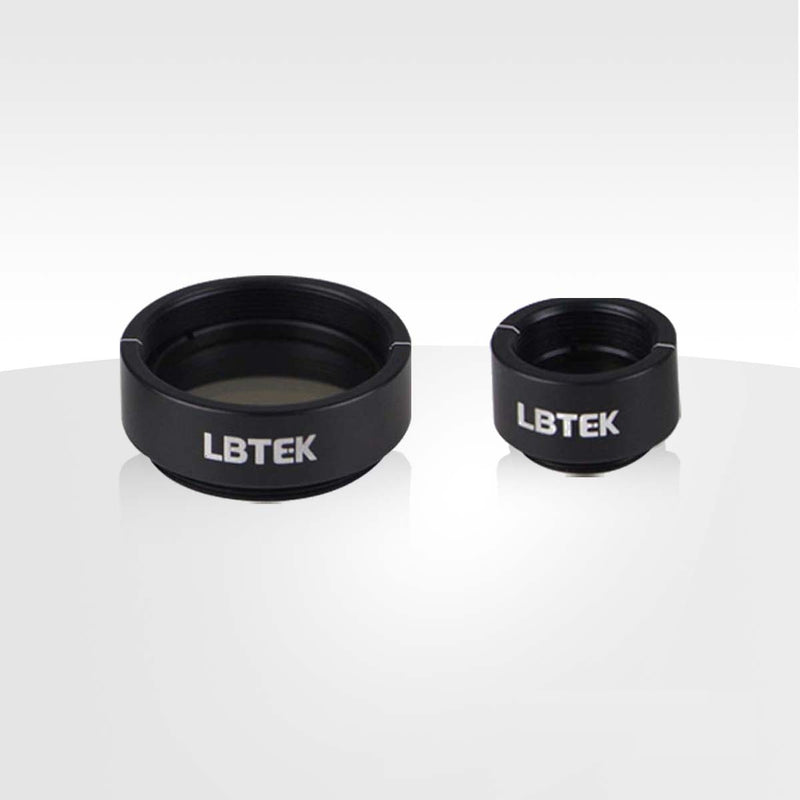

Mounted version of the nanoparticle thin-film linear polarizer, housed in an SM05-8A standard lens tube (mechanical housing non-removable). Features the same embedded silver nanoparticle film providing high extinction ratio, high damage threshold, and wide operating temperature range across ±20° AOI.

Key Features

Extinction ratio: >1000:1@1500 nm-5000 nm; >10000:1@2000 nm-4500 nm
Operating wavelength: 1500 nm-5000 nm
Damage threshold: CW linearly polarized, perpendicular to transmission axis: 10 W/cm²; CW linearly polarized, parallel to transmission axis: 25 W/cm²
Angle of incidence: 0°±20°
Operating temperature: -20°C ~ 120°C
Surface finish: 60/40

Diameter Tolerance	+0.0/-0.2 mm
Clear Aperture	Ø8.1 mm
Thickness	0.2 mm
Thickness Tolerance	±0.05 mm
Operating Wavelength	1500 nm-5000 nm
Transmitted Wavefront Error (TWE)(@633 nm)	<3λ@Ø10 mm
Operating Temperature	-20°C ~ 120°C
Damage Threshold	CW linearly polarized, perpendicular to transmission axis: 10 W/cm²; CW linearly polarized, parallel to transmission axis: 25 W/cm²
Optical Element Diameter	12.5 mm
Extinction Ratio	>1000:1@1500 nm-5000 nm; >10000:1@2000 nm-4500 nm
Angle of Incidence (AOI)	0°±20°
Surface Quality (Scratch/Dig)	60/40
Mechanical housing	SM05-8A (lens tube, SM05 internal/external thread)
Mechanical housing diameter	17.8 mm
Mechanical housing diameter tolerance	+0.00/-0.05 mm
Mechanical housing thickness	11.3 mm (threaded length)
Installation Service Included	Yes

Specification Sheet PDF — Download

CAD Drawing Download

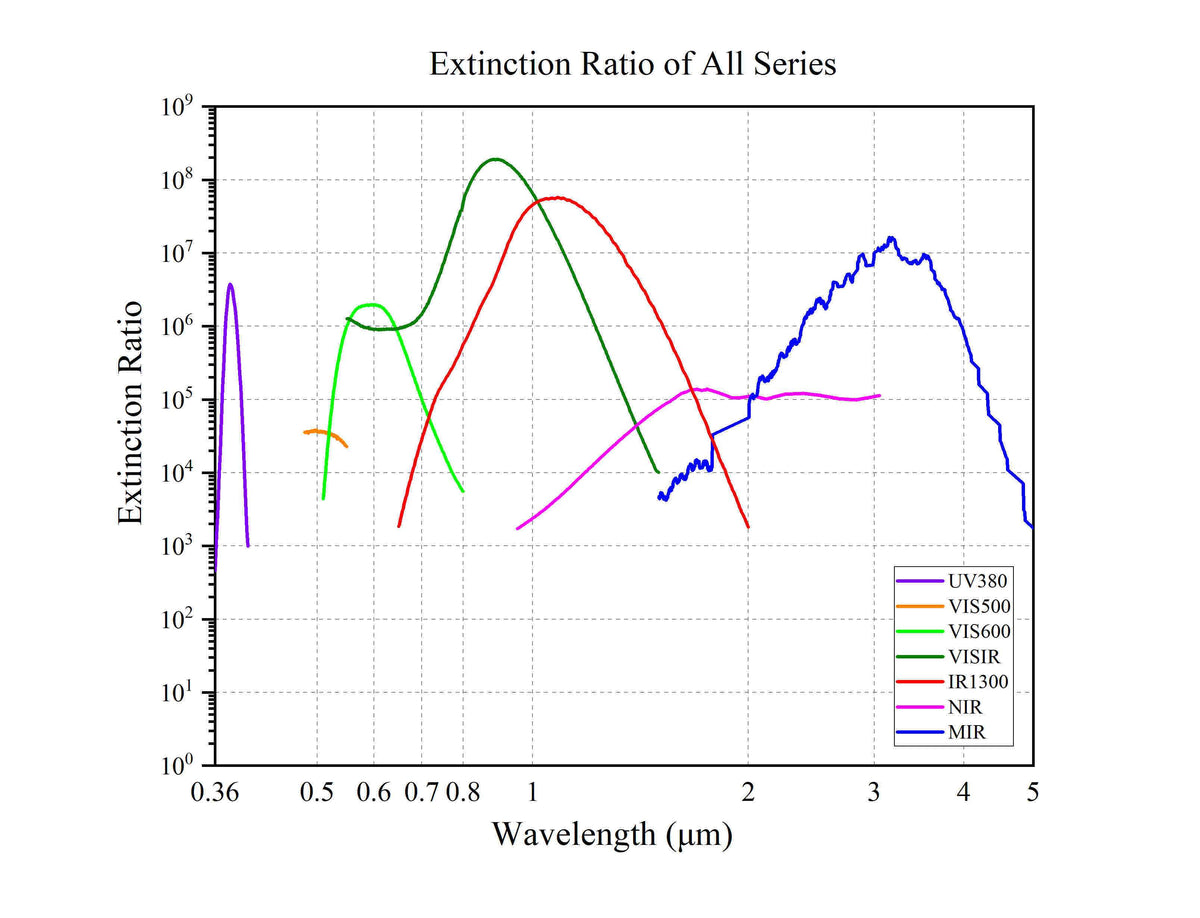

Curve - Extinction Ratio of All Series

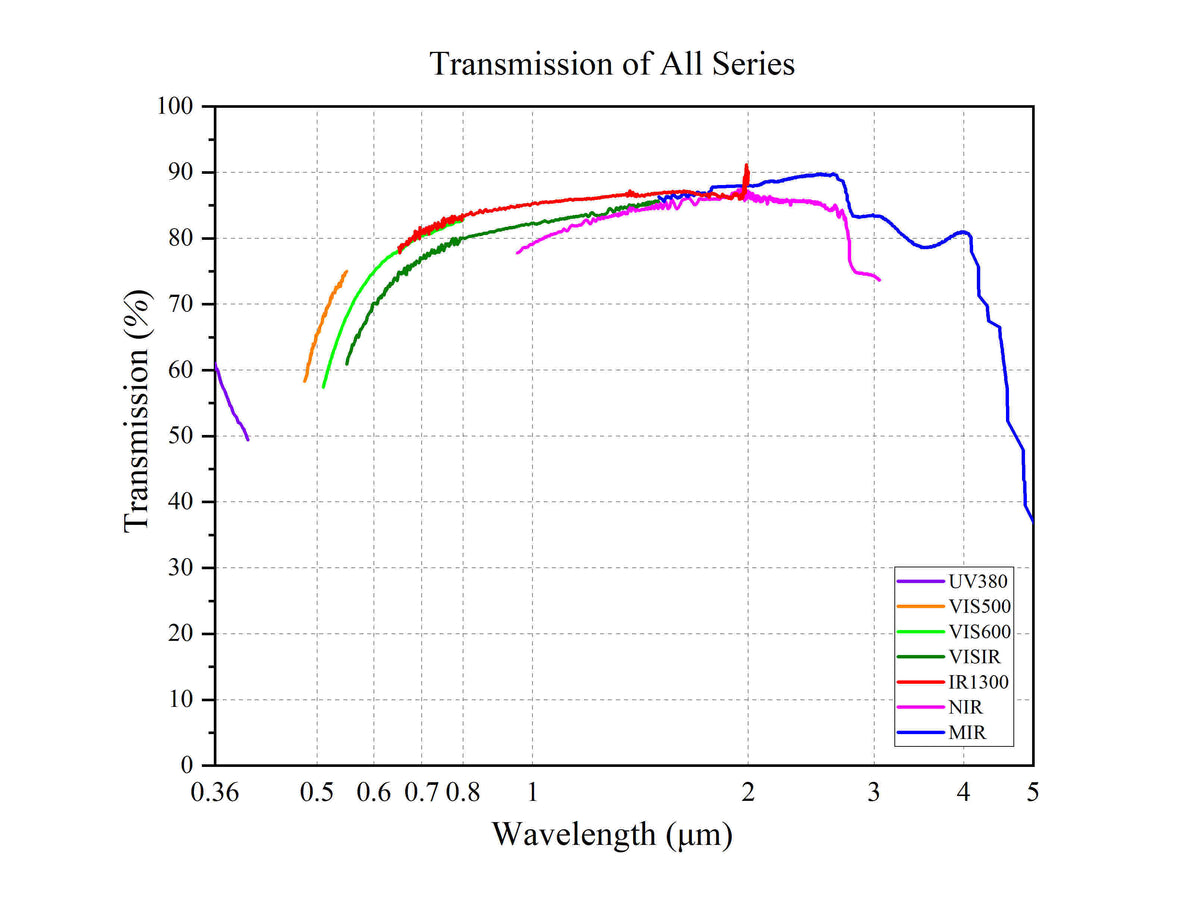

Curve - Transmission of All Series

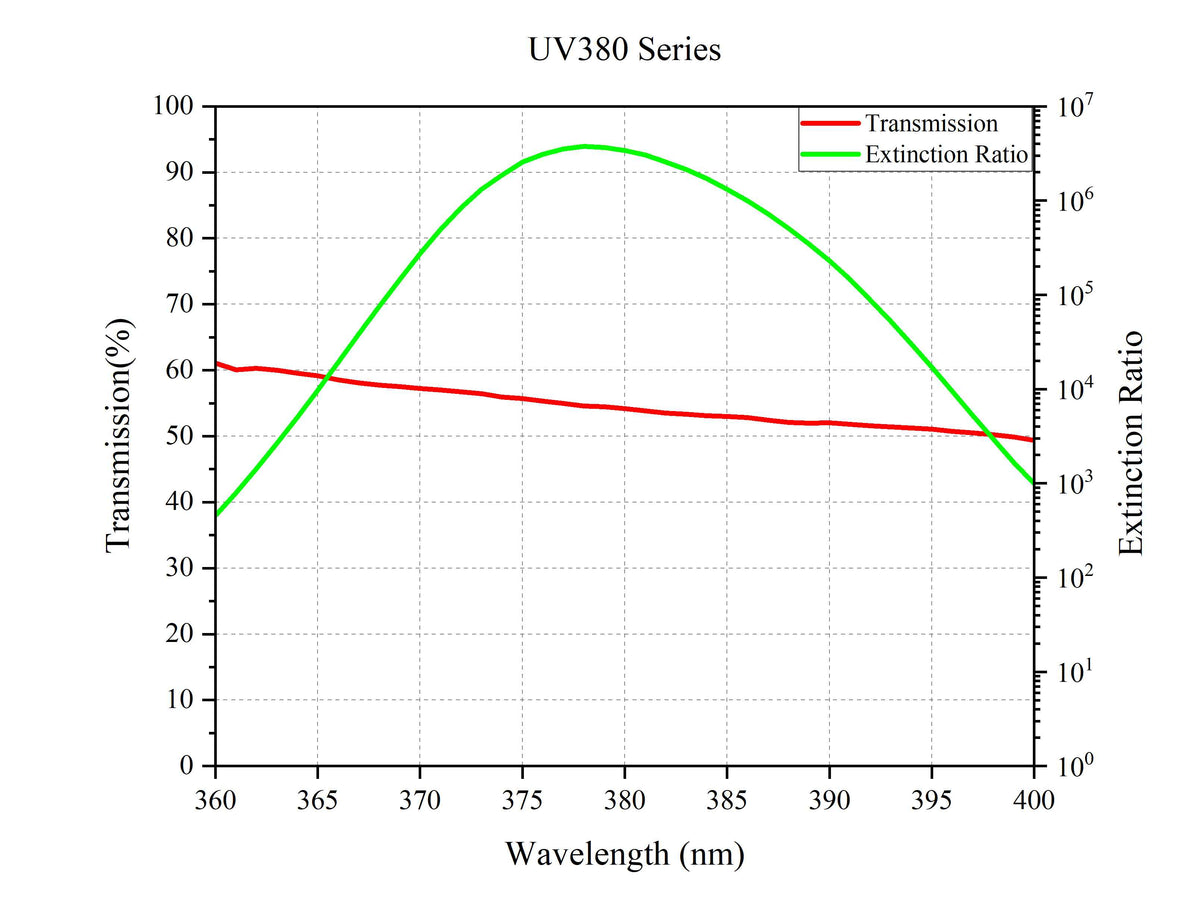

Curve - UV380

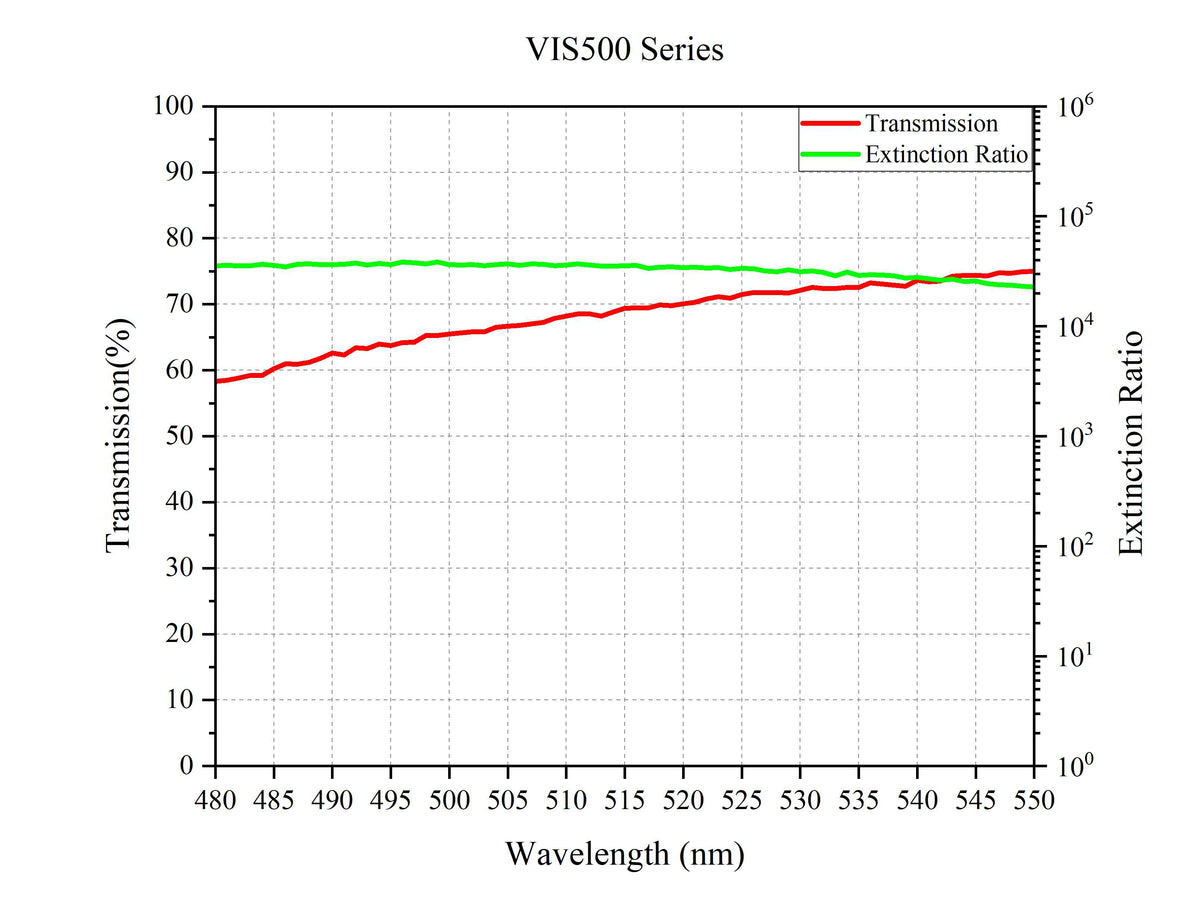

Curve - VIS500

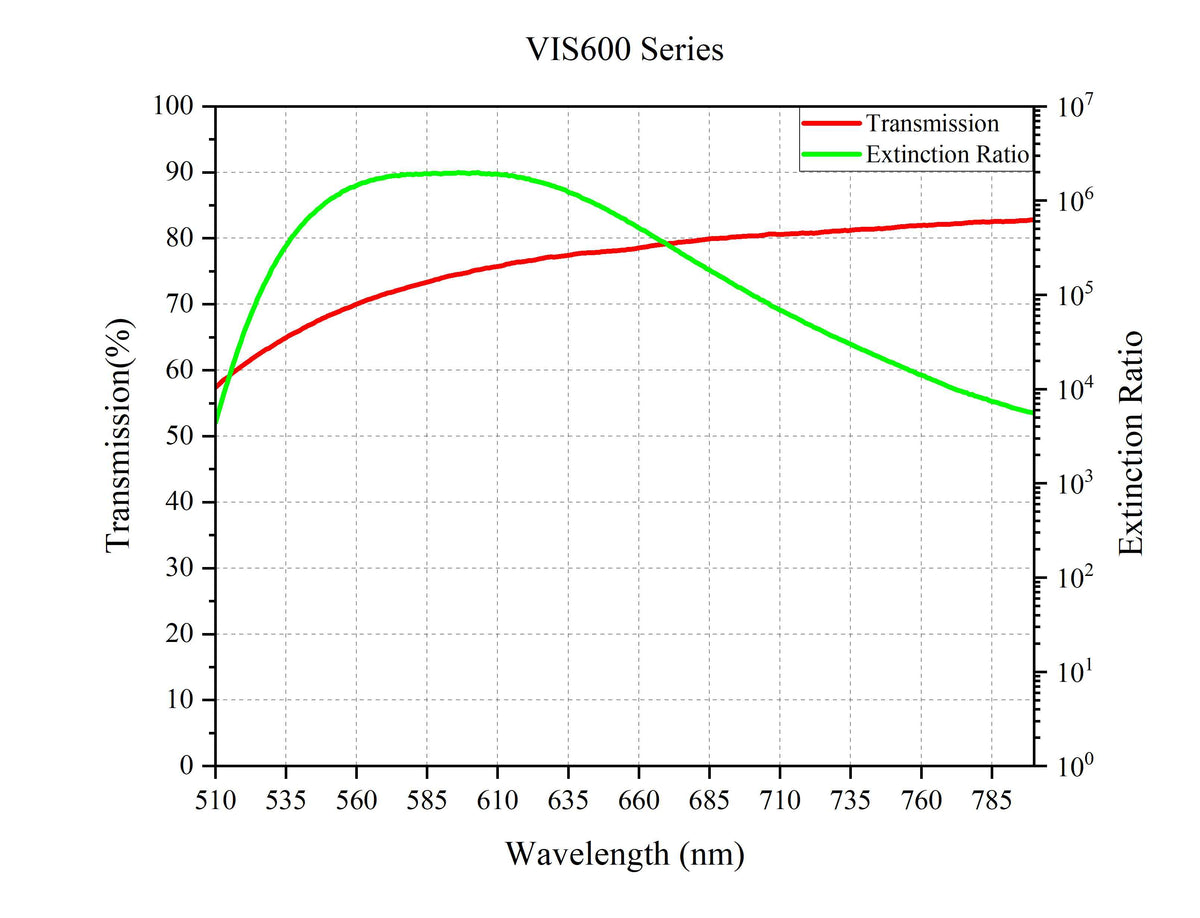

Curve - VIS600

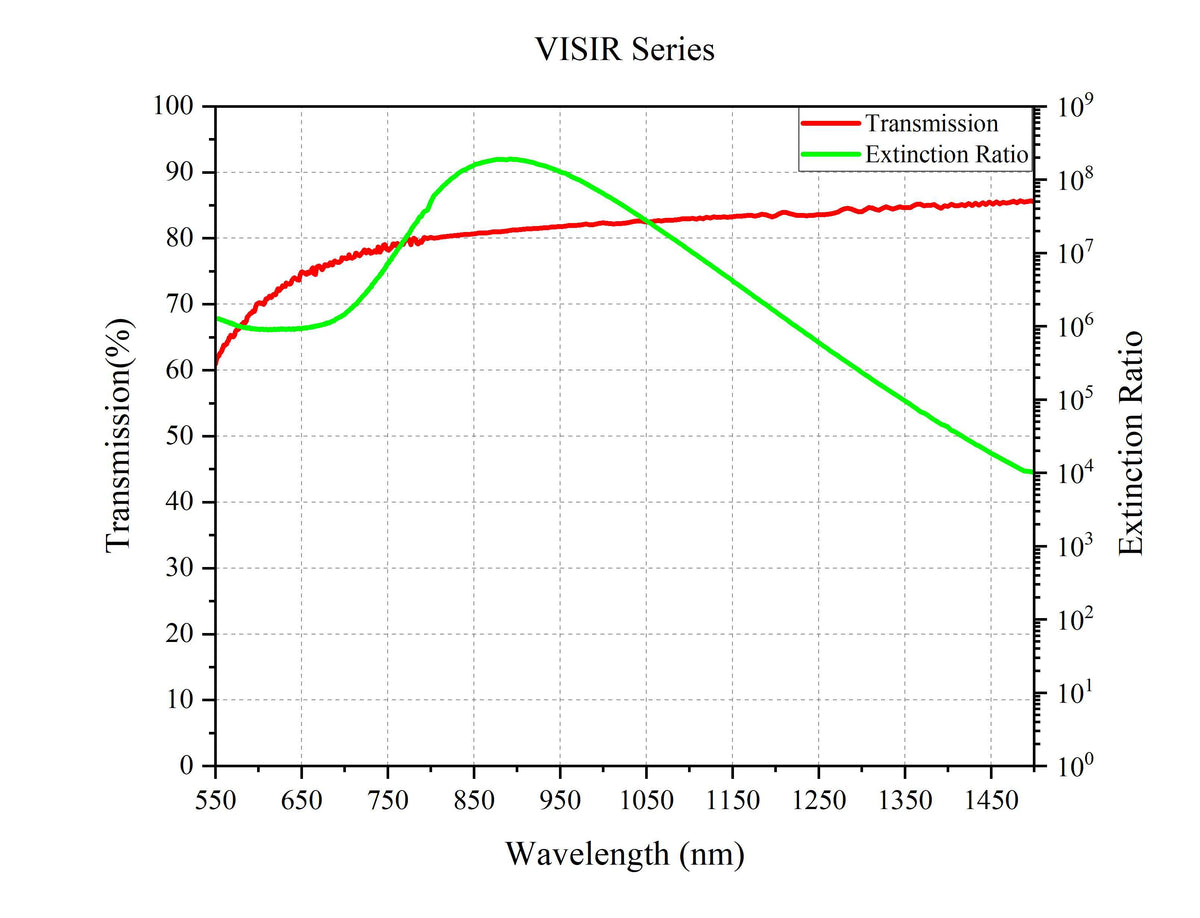

Curve - VISIR

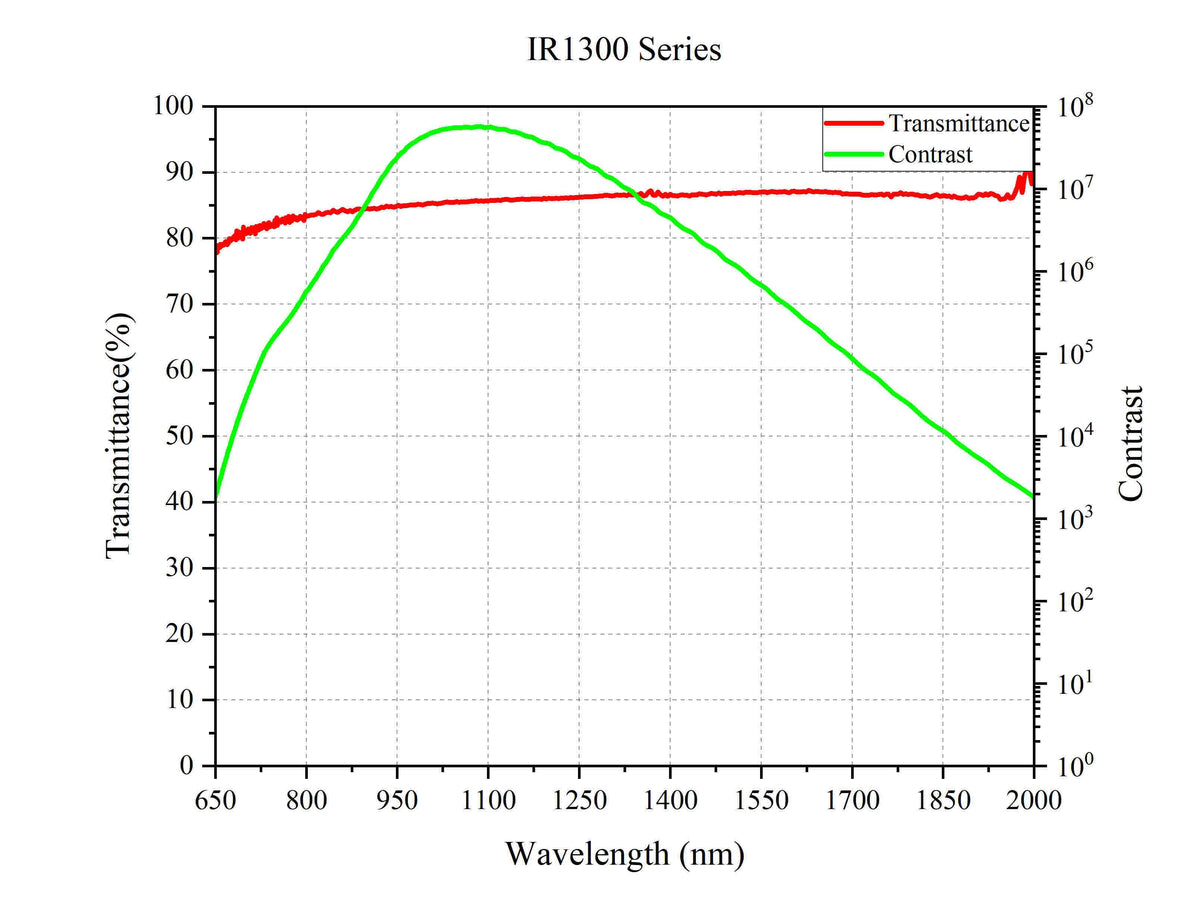

Reference Curve of Transmission and Extinction Ratio of IR1300 Series

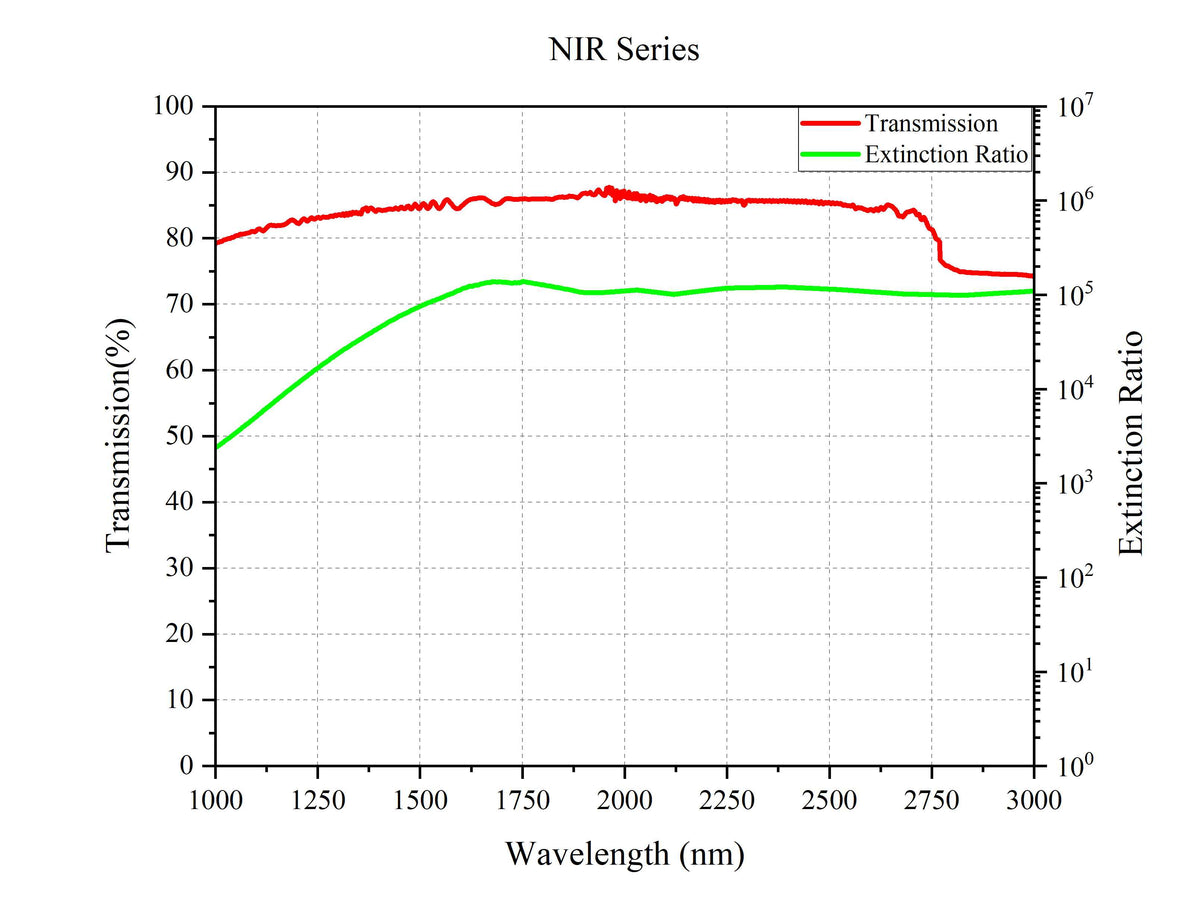

Curve - NIR

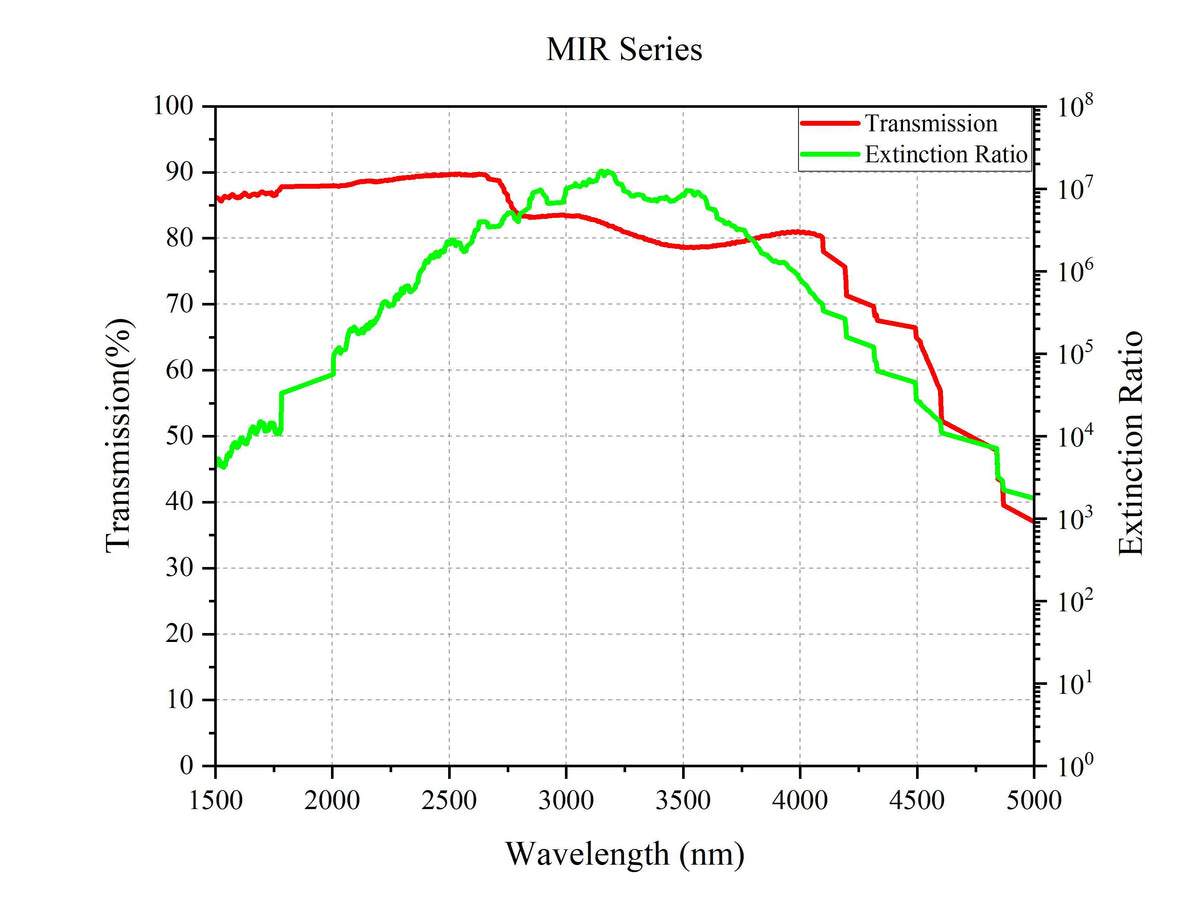

Curve - MIR

Product Family: Nanoparticle Thin Film Linear Polarizers (40 variants)
