Nanoparticle Thin Film Linear Polarizers — Model MNFLP25-VIS500

Silver-nanoparticle thin-film linear polarizer, operating wavelength 480 nm-550 nm, extinction ratio >10000:1@480 nm-550 nm, thickness 2.0 mm.

Overview

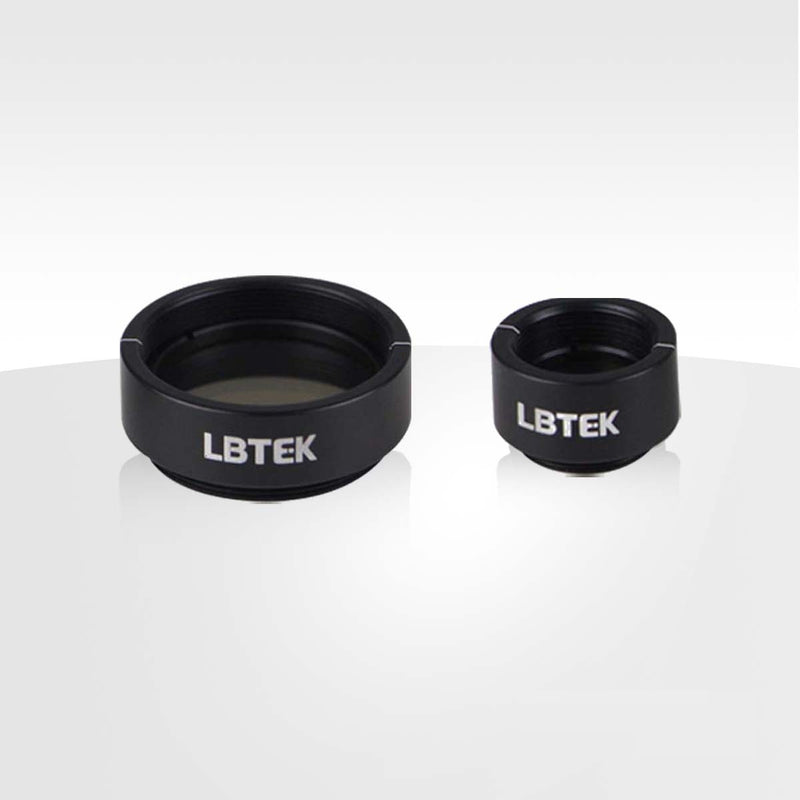

Mounted version of the nanoparticle thin-film linear polarizer, housed in an SM1-8A standard lens tube (mechanical housing non-removable). Features the same embedded silver nanoparticle film providing high extinction ratio, high damage threshold, and wide operating temperature range across ±20° AOI.

Key Features

Extinction ratio: >10000:1@480 nm-550 nm
Operating wavelength: 480 nm-550 nm
Damage threshold: CW linearly polarized, perpendicular to transmission axis: 1 W/cm²; CW linearly polarized, parallel to transmission axis: 5 W/cm²
Angle of incidence: 0°±20°
Operating temperature: -20°C ~ 120°C
Surface finish: 40/20

Diameter Tolerance	+0/-0.2 mm
Clear Aperture	Ø20.7 mm
Thickness	2.0 mm
Thickness Tolerance	±0.2 mm
Operating Wavelength	480 nm-550 nm
Transmitted Wavefront Error (TWE)(@633 nm)	<λ/4@Ø10 mm
Operating Temperature	-20°C ~ 120°C
Damage Threshold	CW linearly polarized, perpendicular to transmission axis: 1 W/cm²; CW linearly polarized, parallel to transmission axis: 5 W/cm²
Optical Element Diameter	25.0 mm
Extinction Ratio	>10000:1@480 nm-550 nm
Angle of Incidence (AOI)	0°±20°
Surface Quality (Scratch/Dig)	40/20
Mechanical housing	SM1-8A (lens tube, SM1 internal/external thread)
Mechanical housing diameter	30.5 mm
Mechanical housing diameter tolerance	+0.00/-0.05 mm
Mechanical housing thickness	12.0 mm (threaded length)
Installation Service Included	Yes

Specification Sheet PDF — Download

CAD Drawing Download

3D Model (STL) STL — Download

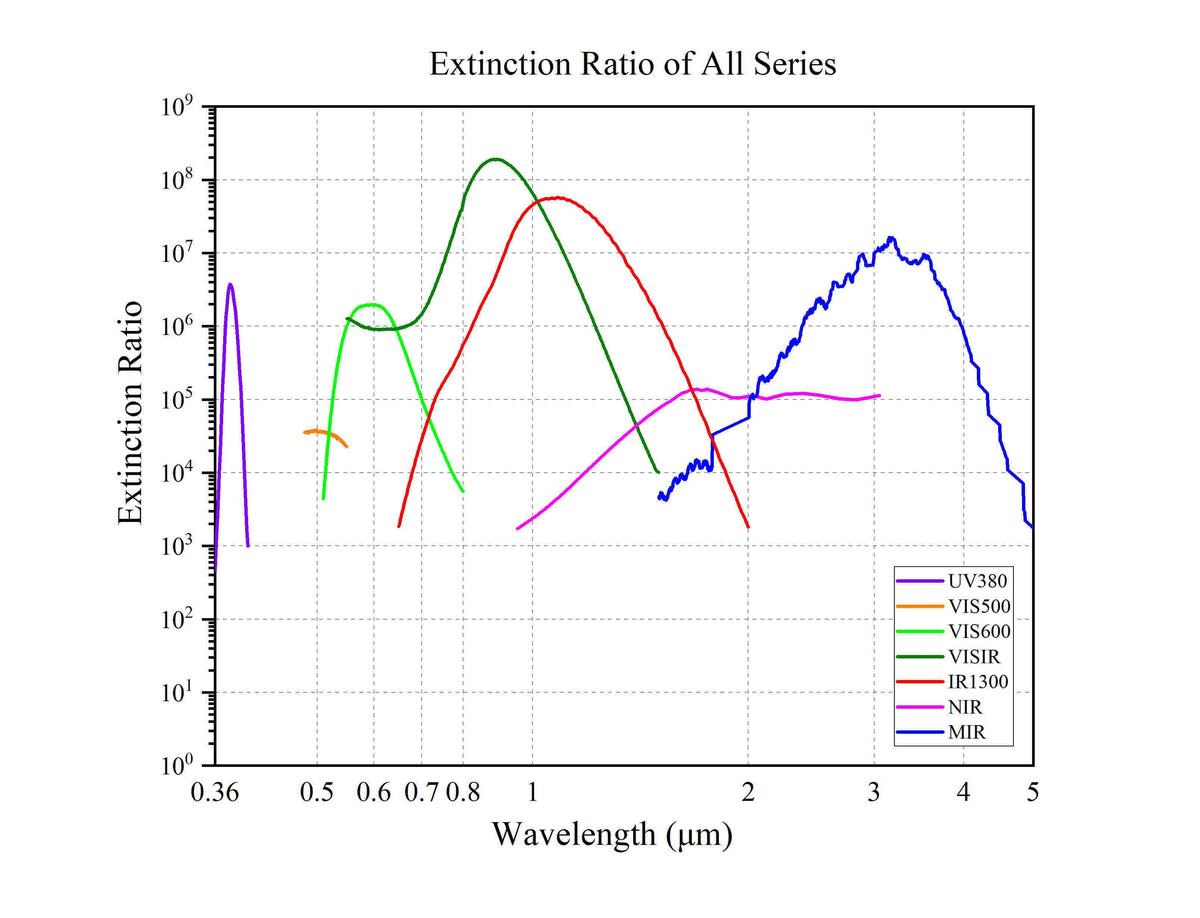

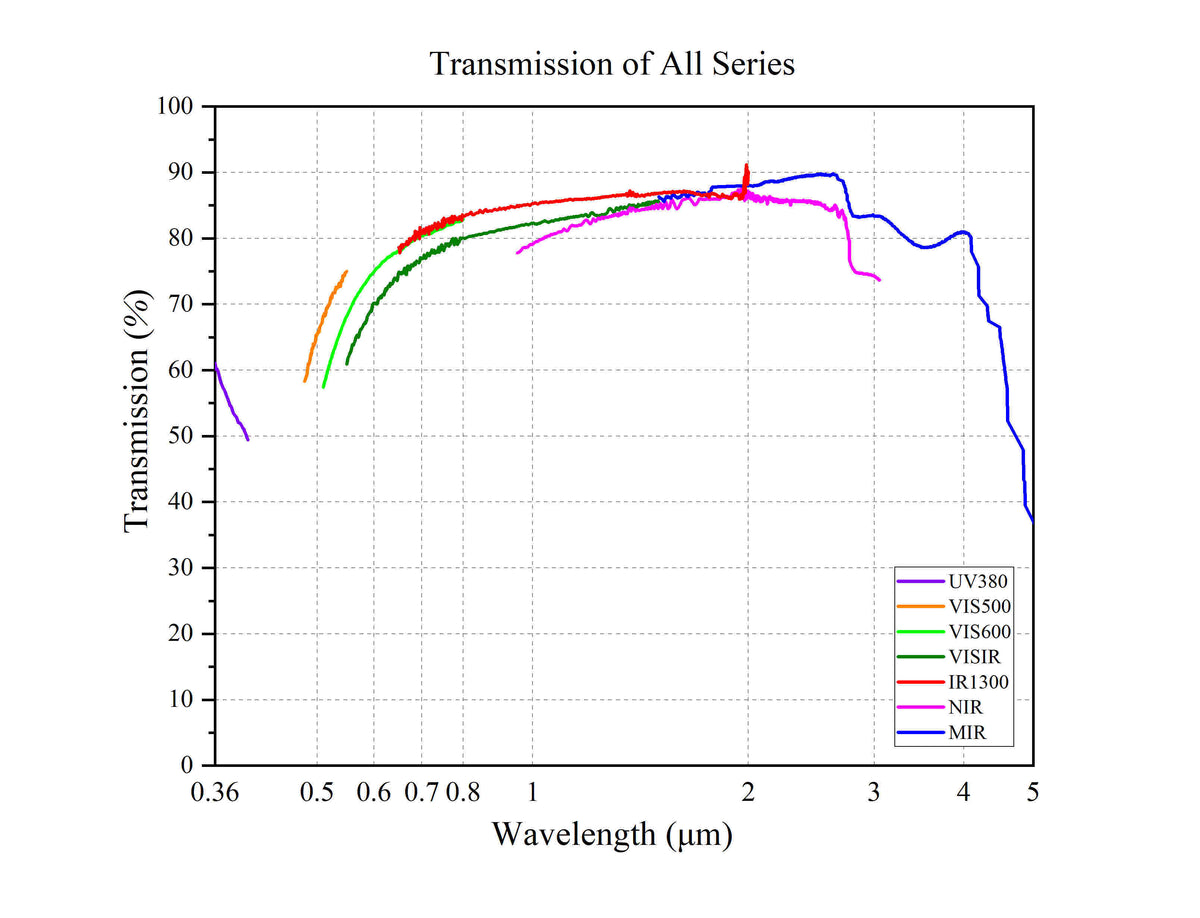

Curve - Extinction Ratio of All Series

Curve - Transmission of All Series

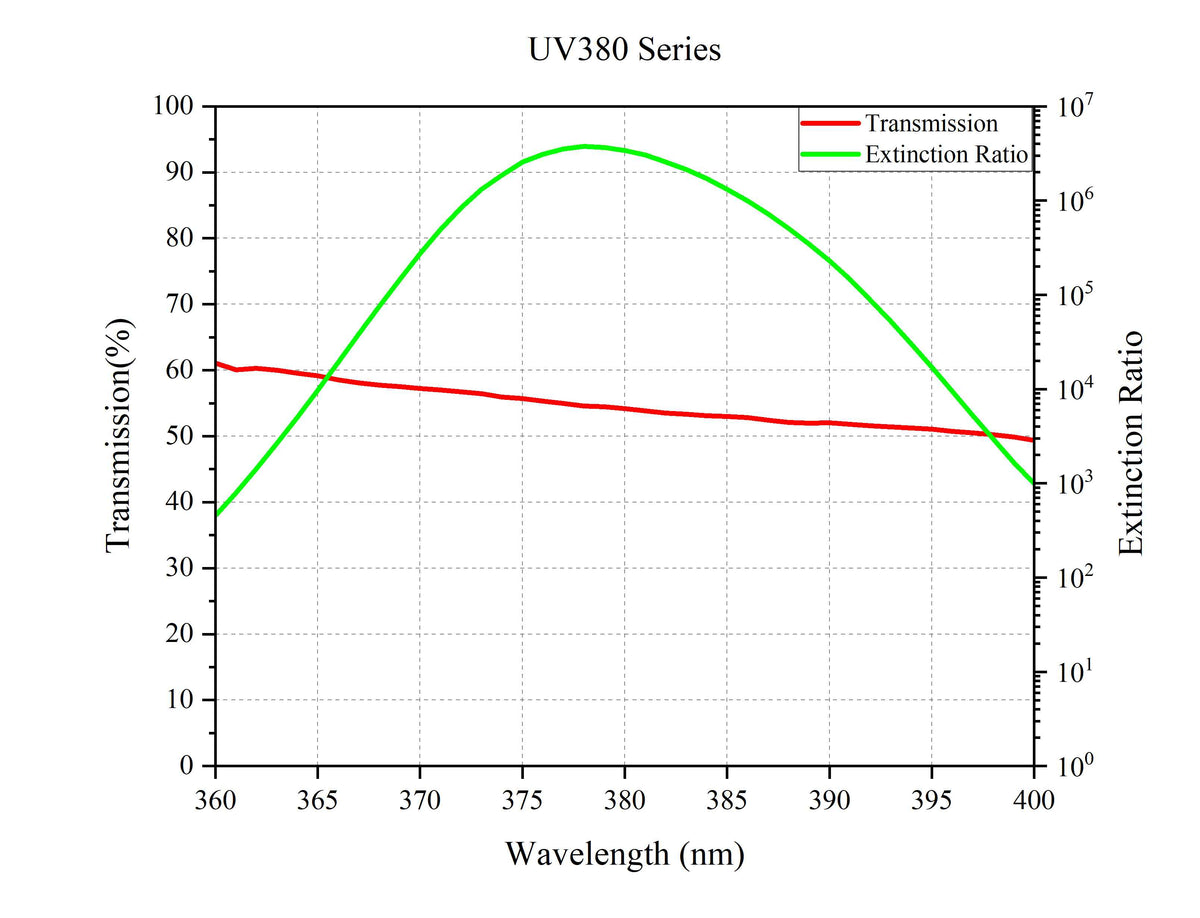

Curve - UV380

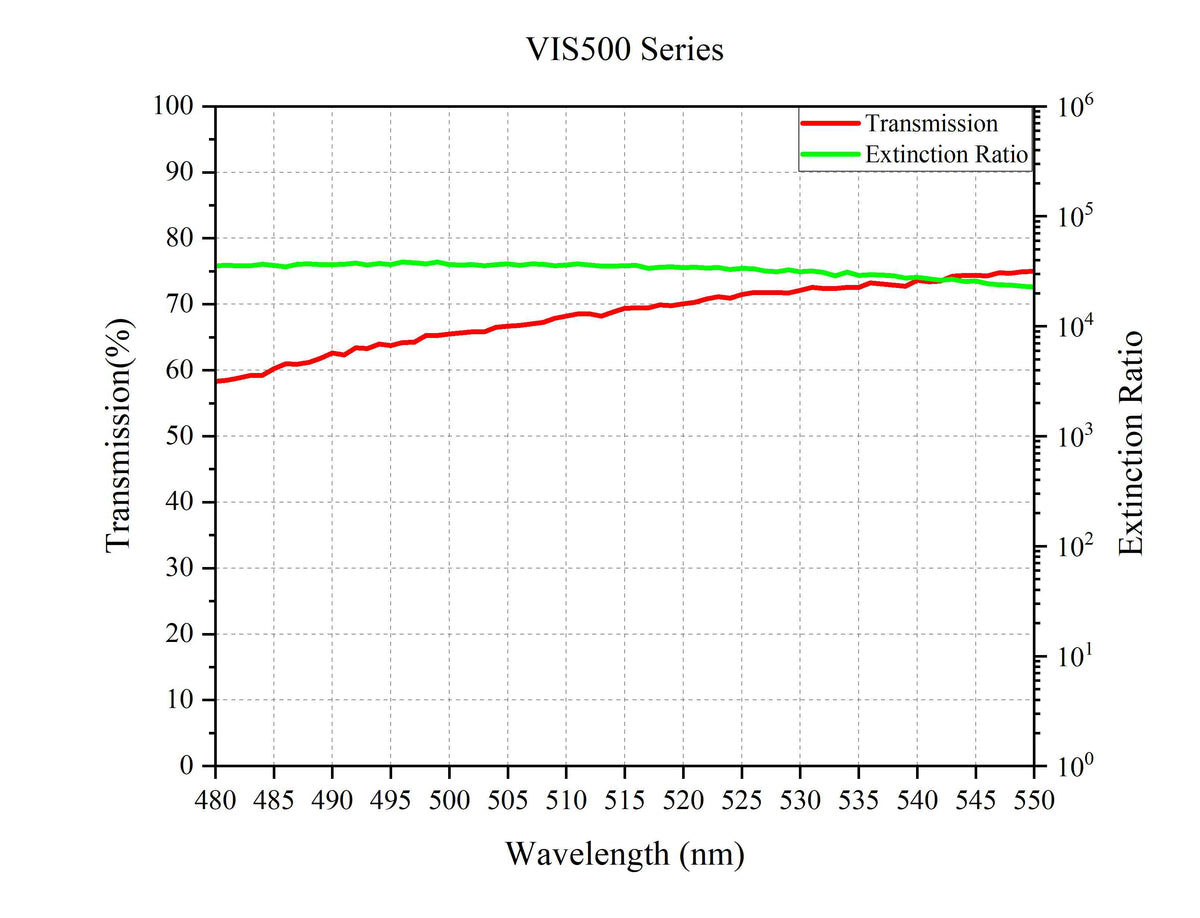

Curve - VIS500

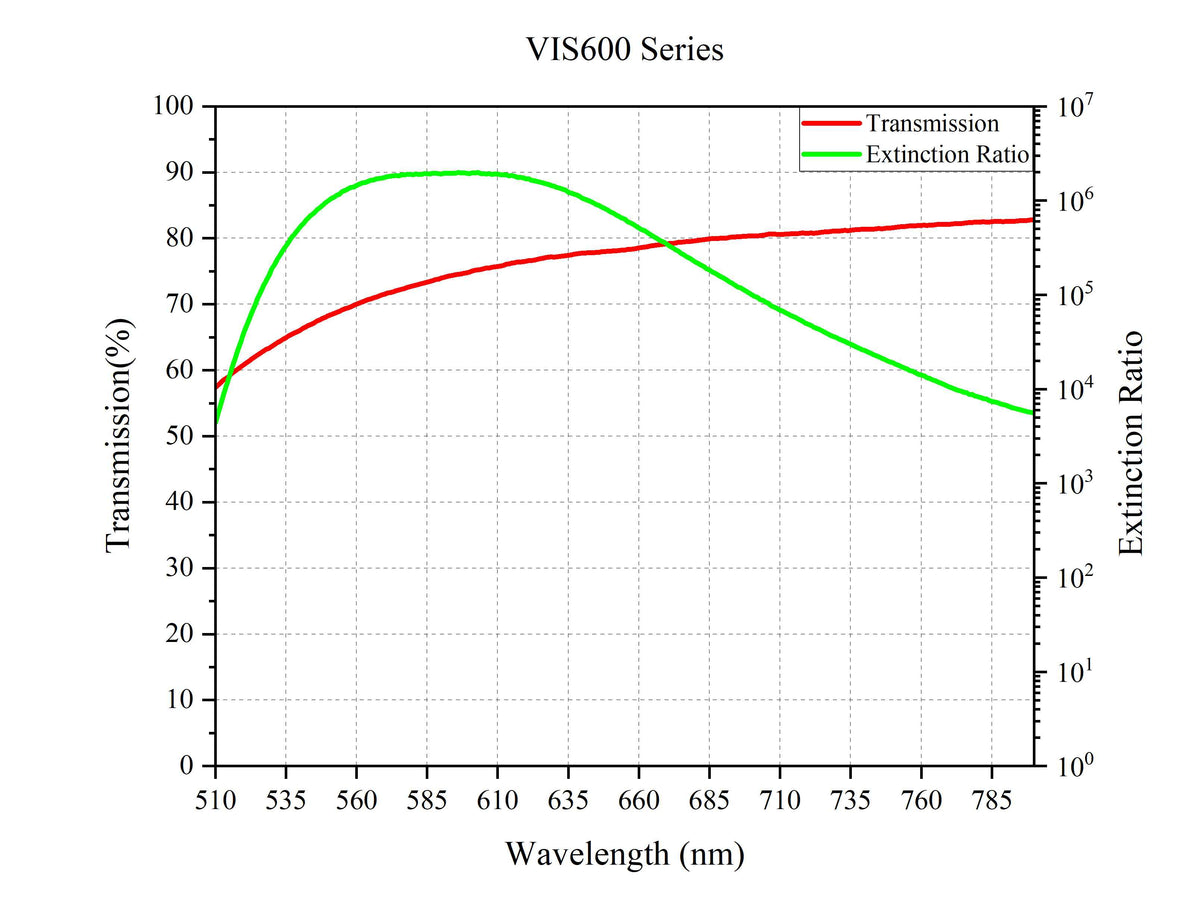

Curve - VIS600

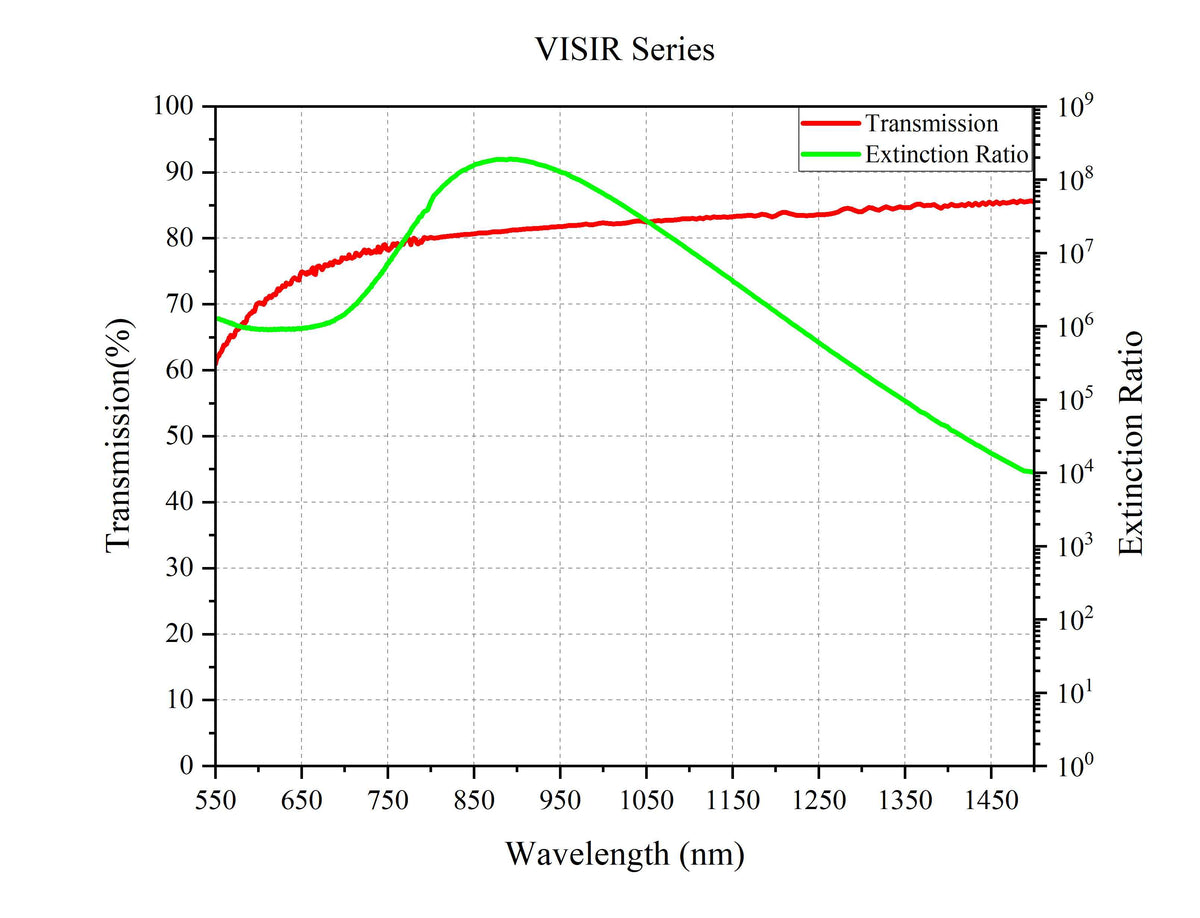

Curve - VISIR

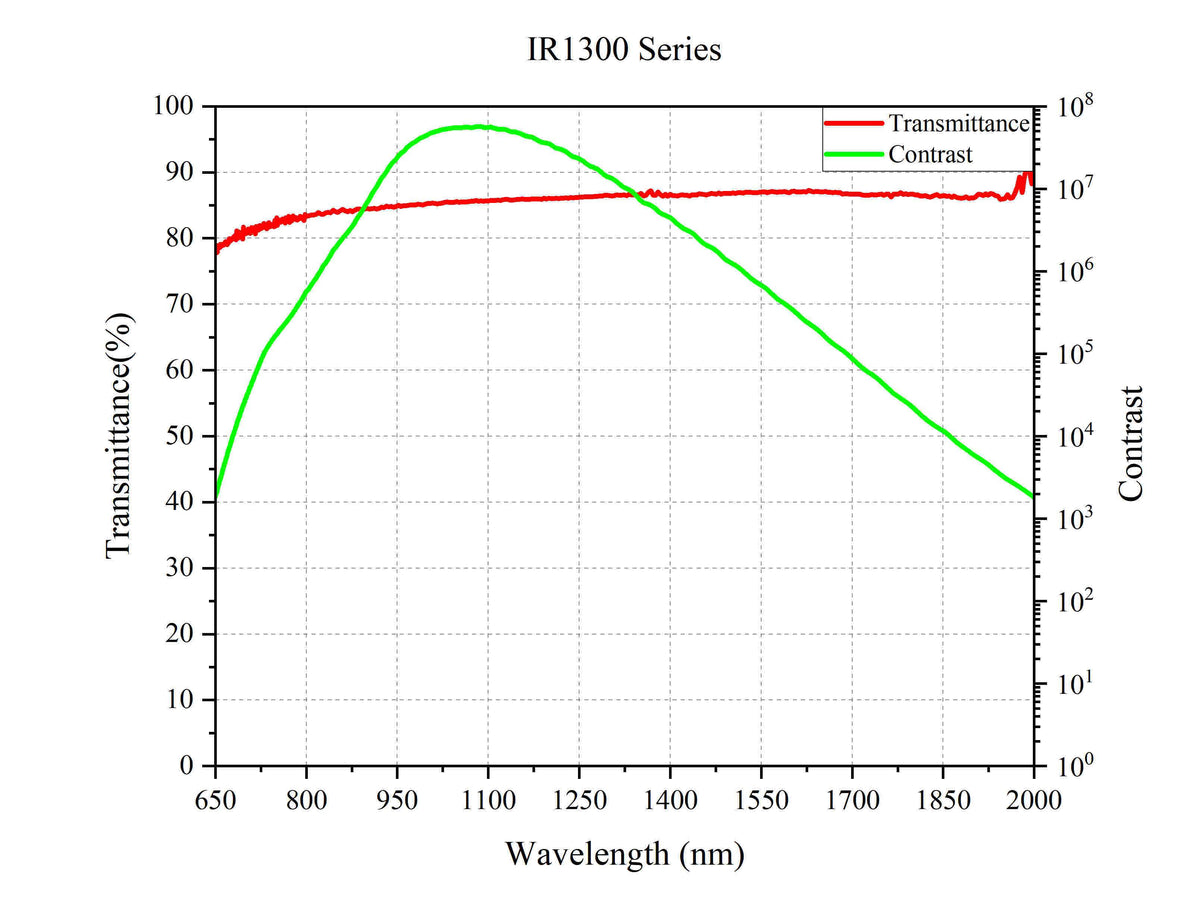

Reference Curve of Transmission and Extinction Ratio of IR1300 Series

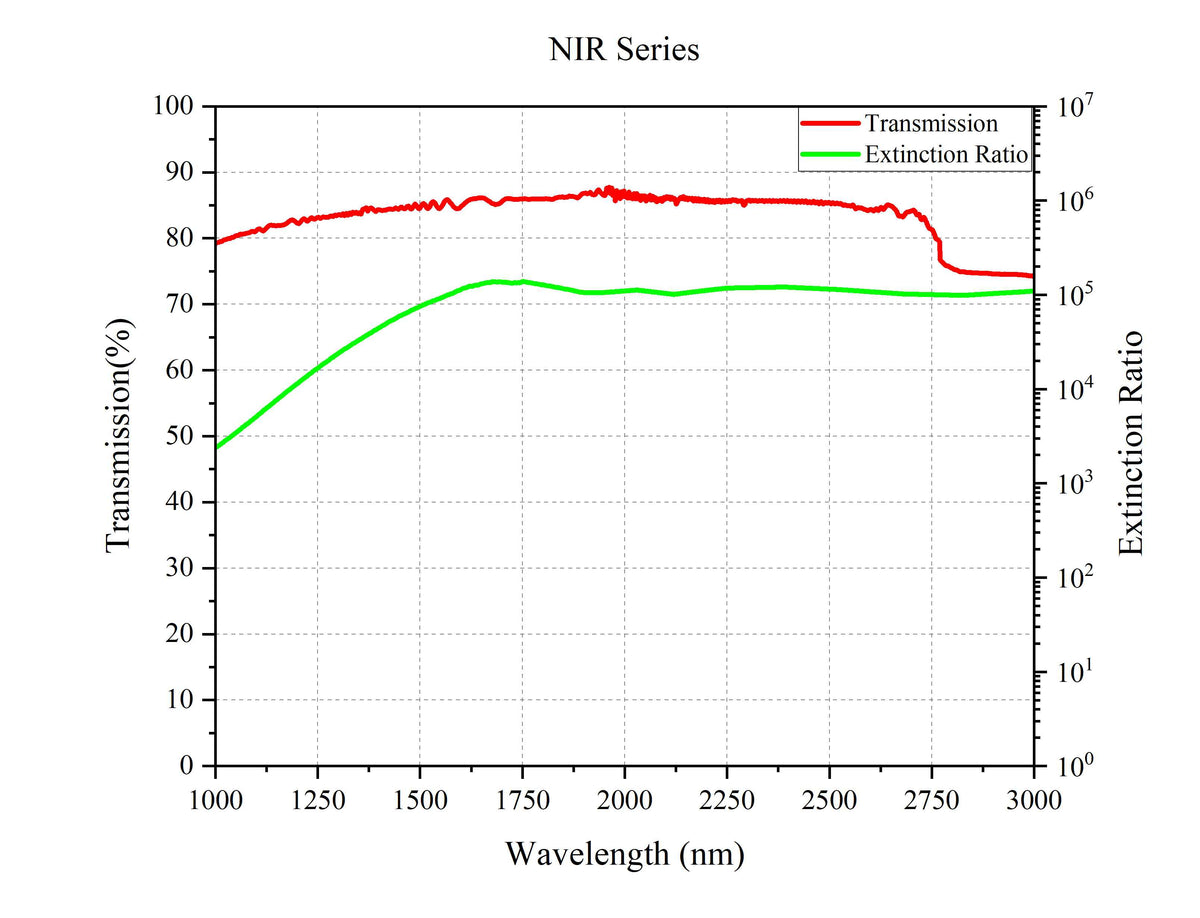

Curve - NIR

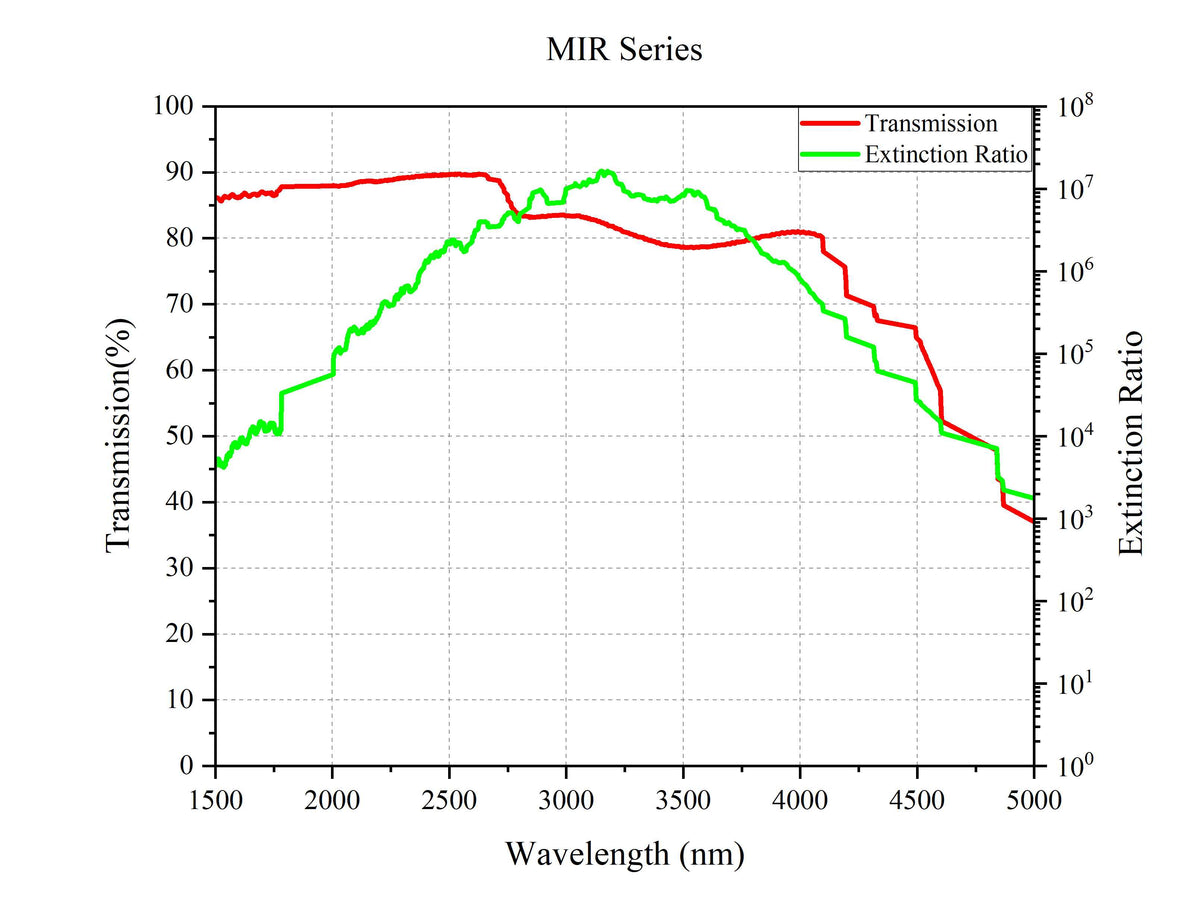

Curve - MIR

Product Family: Nanoparticle Thin Film Linear Polarizers (40 variants)
