What wavelength range does Nanoparticle Thin Film Linear Polarizers MNFLP25-IR1300 support?

Nanoparticle Thin Film Linear Polarizers MNFLP25-IR1300 operates at a center wavelength of 650.0 nm.

What documentation is available for Nanoparticle Thin Film Linear Polarizers MNFLP25-IR1300?

The following documents are available for download on the Nanoparticle Thin Film Linear Polarizers MNFLP25-IR1300 product page: Spec sheet. CAD drawing.Visit the Documents tab for direct download links.

Is Nanoparticle Thin Film Linear Polarizers MNFLP25-IR1300 available for purchase?

Yes, request a quote for pricing and lead time at WaveQuanta.Contact our sales team for current availability and volume pricing.

WaveQuanta

Nanoparticle Thin Film Linear Polarizers MNFLP25-IR1300

Name: Nanoparticle Thin Film Linear Polarizers MNFLP25-IR1300
Brand: WaveQuanta
SKU: MNFLP25-IR1300
Price: 1644.75 SGD
Availability: InStock

MNFLP25-IR1300

$1,644.75

In Stock

Key Specifications

Wavelength 650.0nm

Request Quote

Design Tools

Wavelength ↔ Wavenumber Convert between wavelength, frequency, and energy

View all 49 calculators →

RoHS REACH

Nanoparticle Thin Film Linear Polarizers — Model MNFLP25-IR1300

Silver-nanoparticle thin-film linear polarizer, operating wavelength 650 nm-2000 nm, extinction ratio >100000@850 nm-1600 nm; >10000@750 nm-1800 nm; >1000@650 nm-2000 nm, thickness 2.0 mm.

Overview

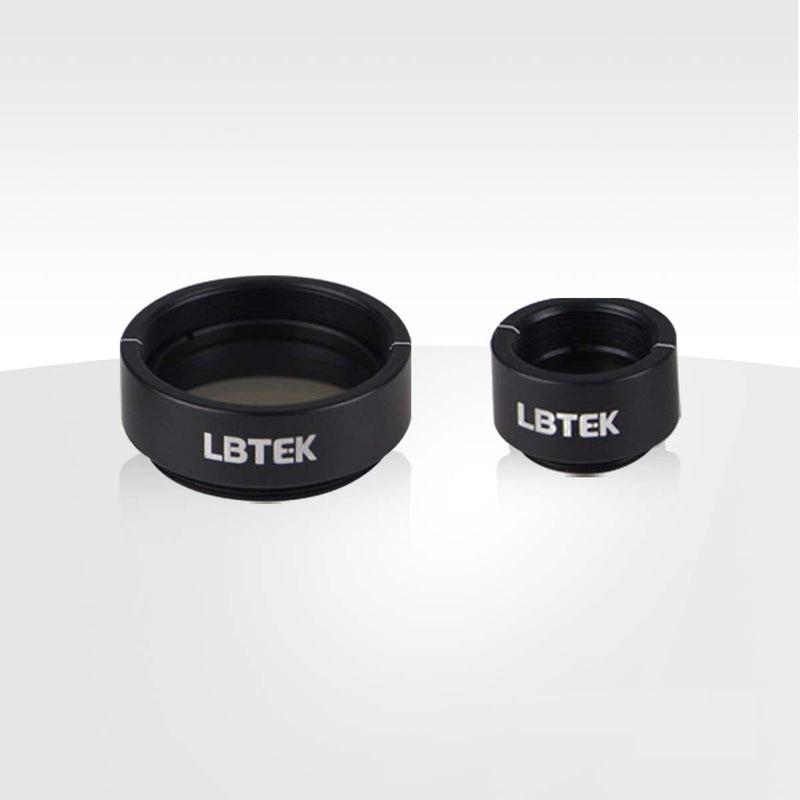

Mounted version of the nanoparticle thin-film linear polarizer, housed in an SM1-8A standard lens tube (mechanical housing non-removable). Features the same embedded silver nanoparticle film providing high extinction ratio, high damage threshold, and wide operating temperature range across ±20° AOI.

Key Features

Extinction ratio: >100000@850 nm-1600 nm; >10000@750 nm-1800 nm; >1000@650 nm-2000 nm
Operating wavelength: 650 nm-2000 nm
Damage threshold: CW linearly polarized, perpendicular to transmission axis: 1 W/cm²; CW linearly polarized, parallel to transmission axis: 5 W/cm²
Angle of incidence: 0°±20°
Operating temperature: -20 °C~120 °C
Surface finish: 40/20

Diameter Tolerance	+0.0/-0.2 mm
Clear Aperture	Ø20.7 mm
Thickness	2.0 mm
Thickness Tolerance	±0.2 mm
Operating Wavelength	650 nm-2000 nm
Transmitted Wavefront Error (TWE)(@633 nm)	<λ/4@Ø10 mm
Operating Temperature	-20 °C~120 °C
Damage Threshold	CW linearly polarized, perpendicular to transmission axis: 1 W/cm²; CW linearly polarized, parallel to transmission axis: 5 W/cm²
Optical Element Diameter	25.0 mm
Extinction Ratio	>100000@850 nm-1600 nm; >10000@750 nm-1800 nm; >1000@650 nm-2000 nm
Angle of Incidence (AOI)	0°±20°
Surface Quality (Scratch/Dig)	40/20
Mechanical housing	SM1-8A (lens tube, SM1 internal/external thread)
Mechanical housing diameter	30.5 mm
Mechanical housing diameter tolerance	+0.00/-0.05 mm
Mechanical housing thickness	12.0 mm (threaded length)
Installation Service Included	Yes

Specification Sheet PDF — Download

CAD Drawing Download

3D Model (STL) STL — Download

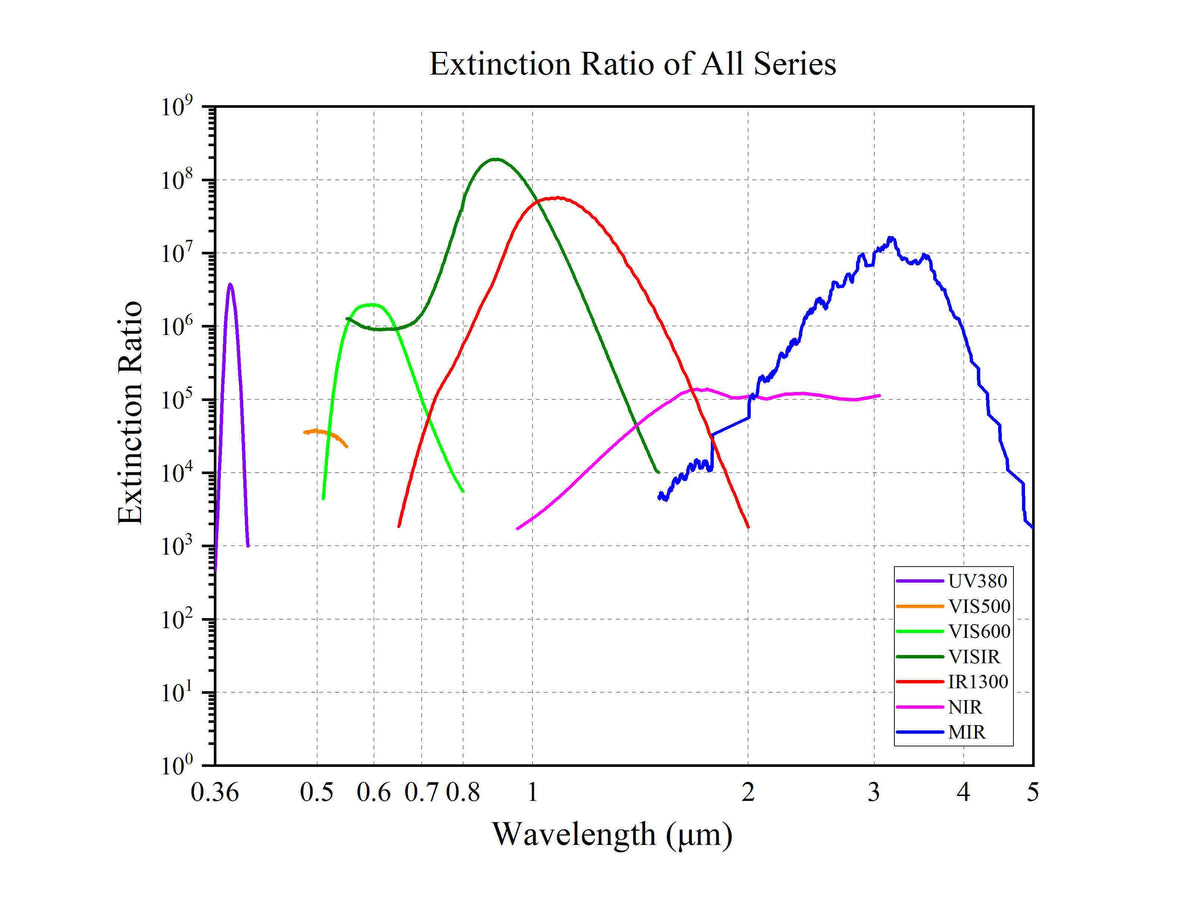

Curve - Extinction Ratio of All Series

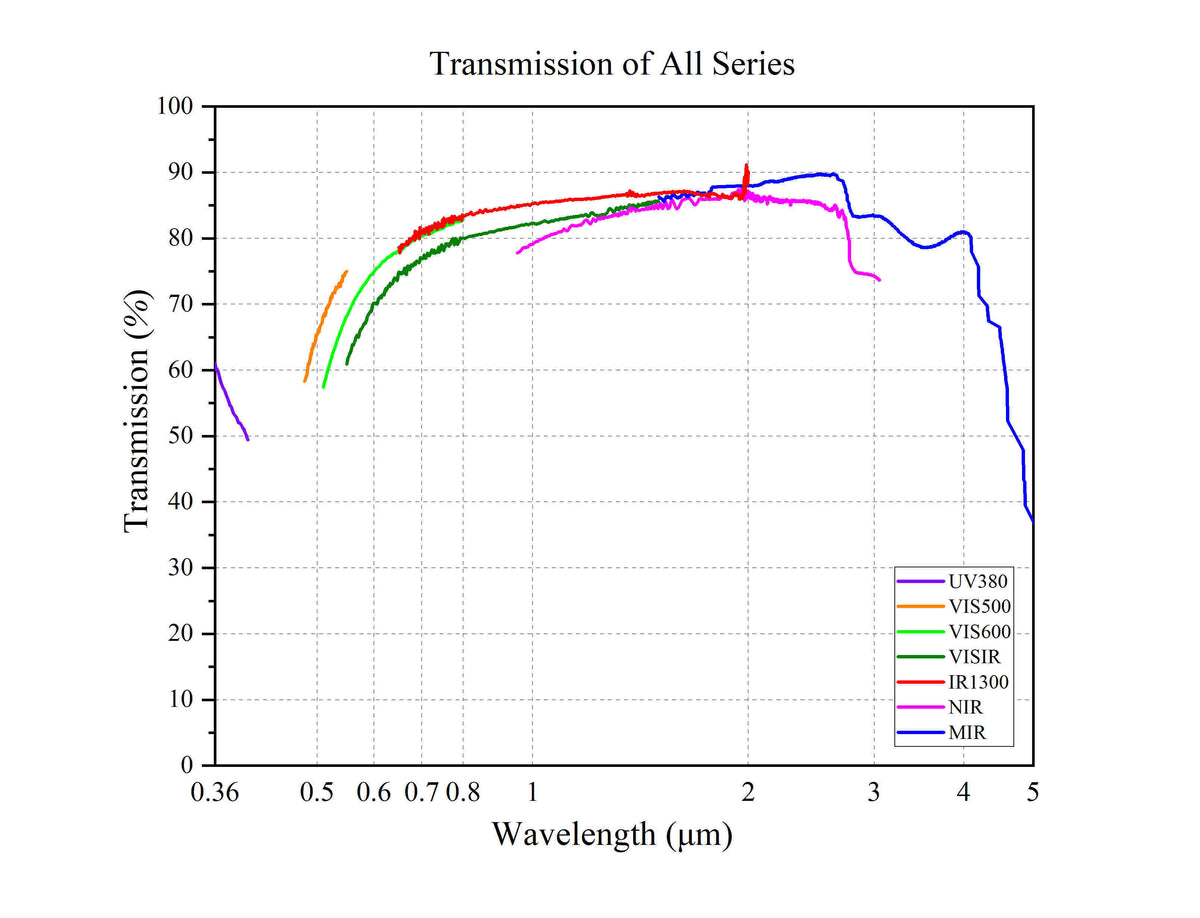

Curve - Transmission of All Series

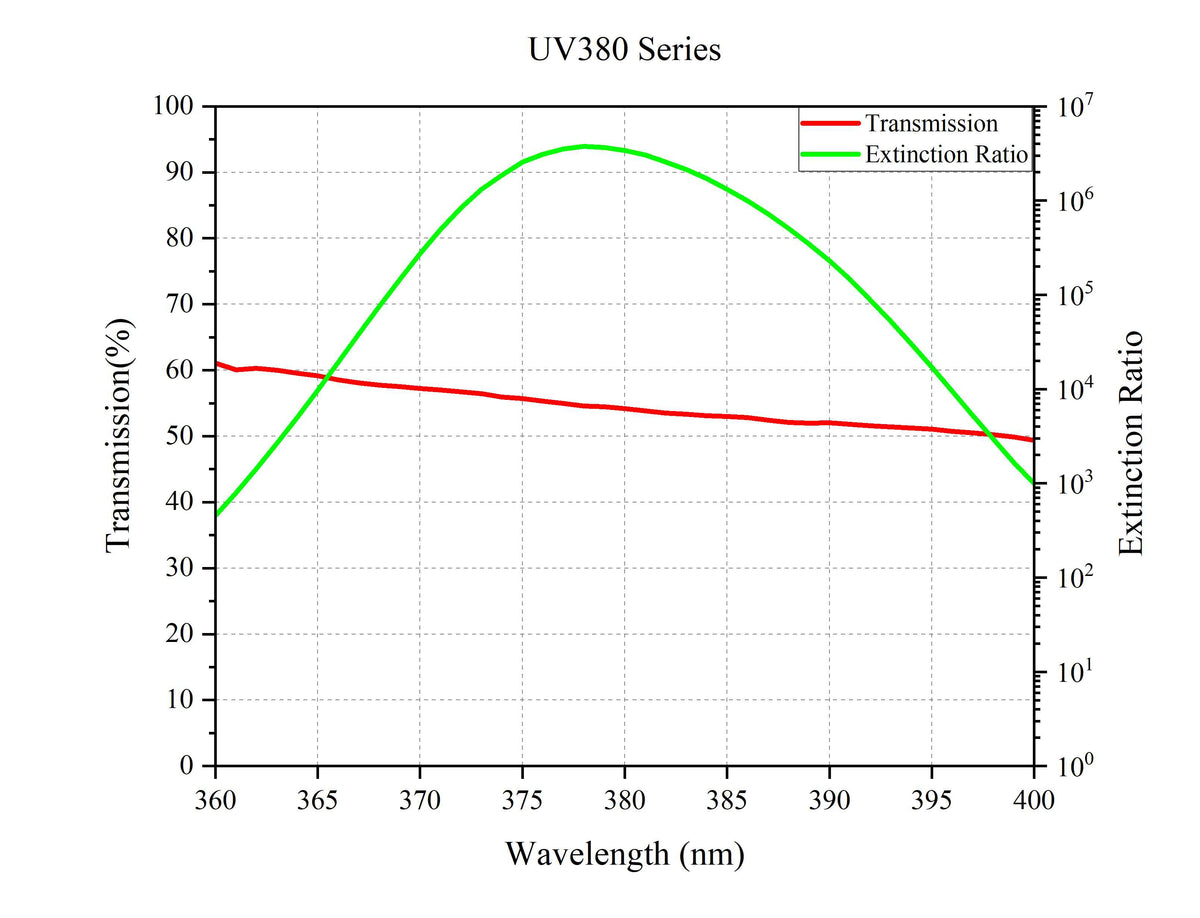

Curve - UV380

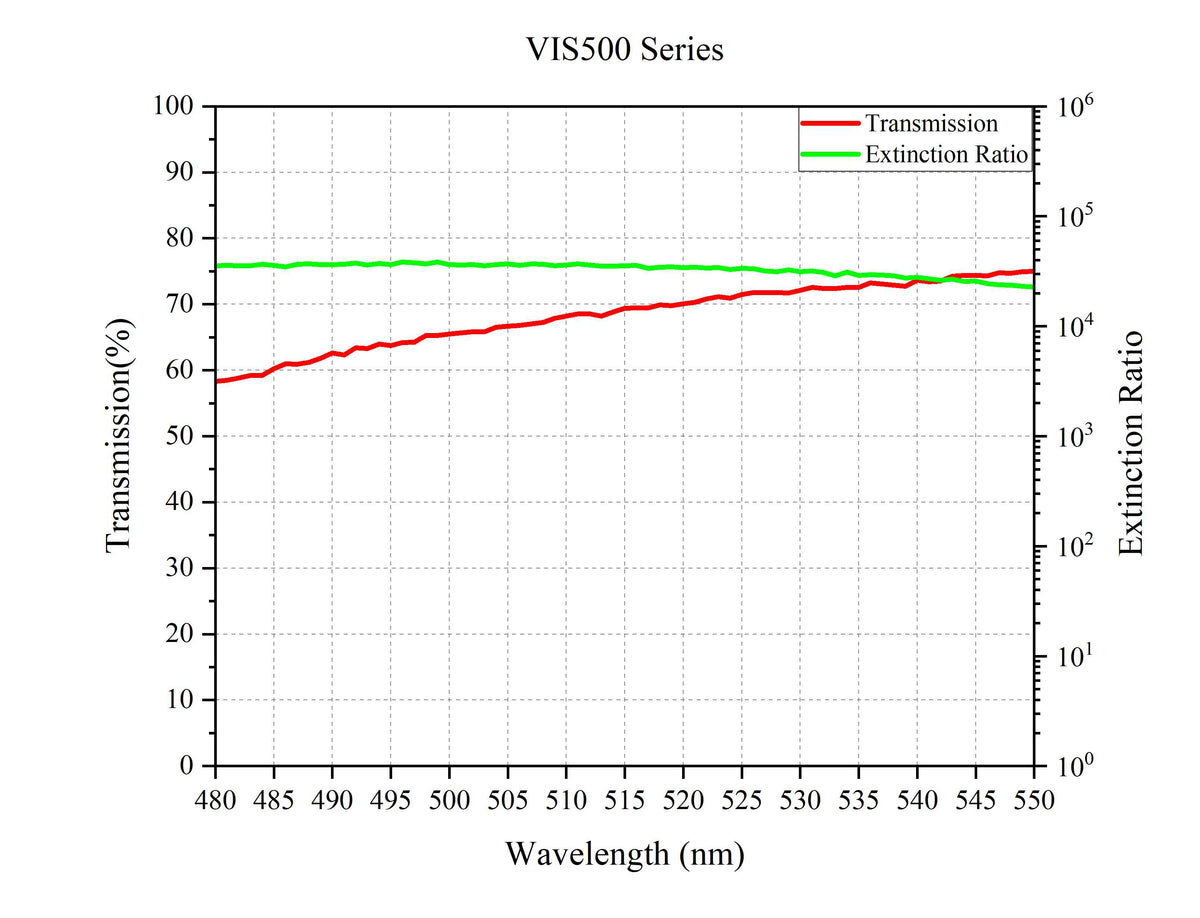

Curve - VIS500

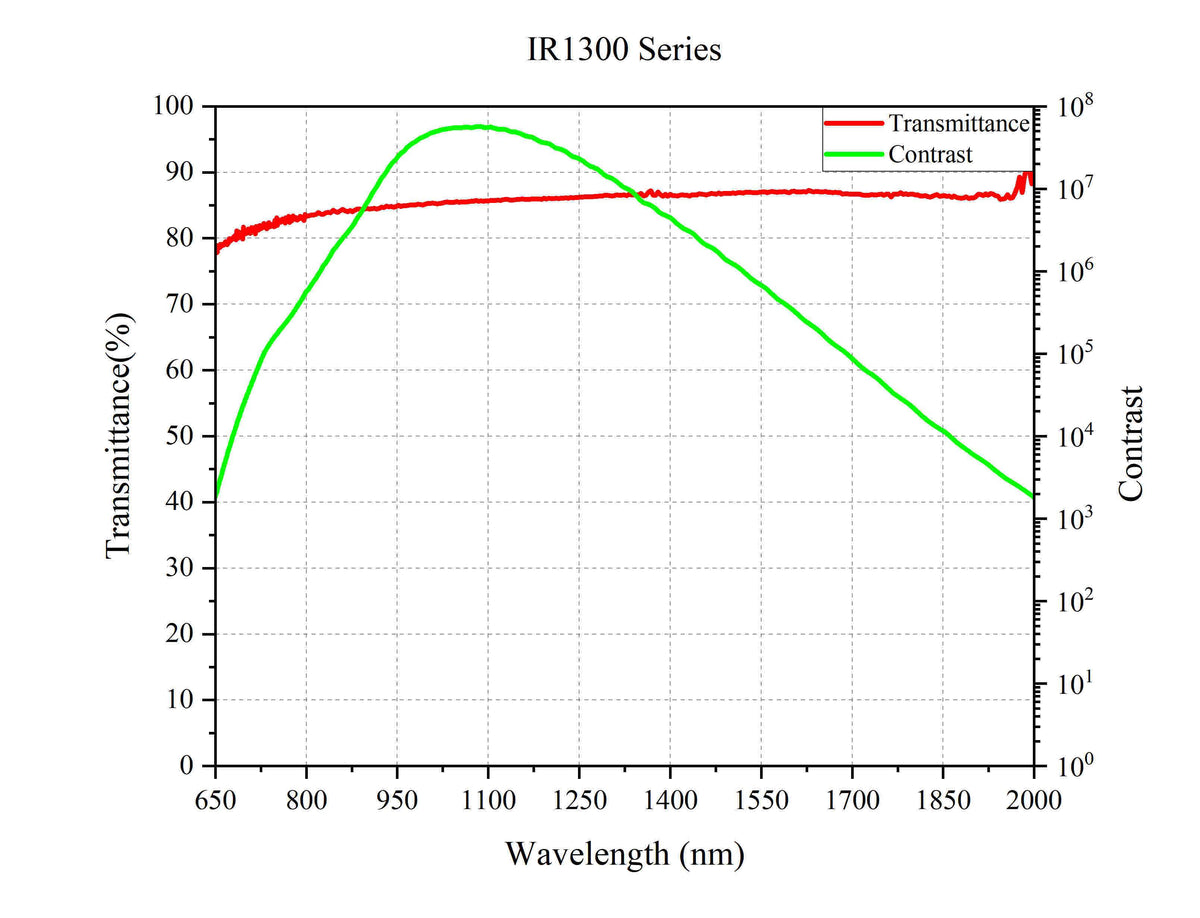

Reference Curve of Transmission and Extinction Ratio of IR1300 Series

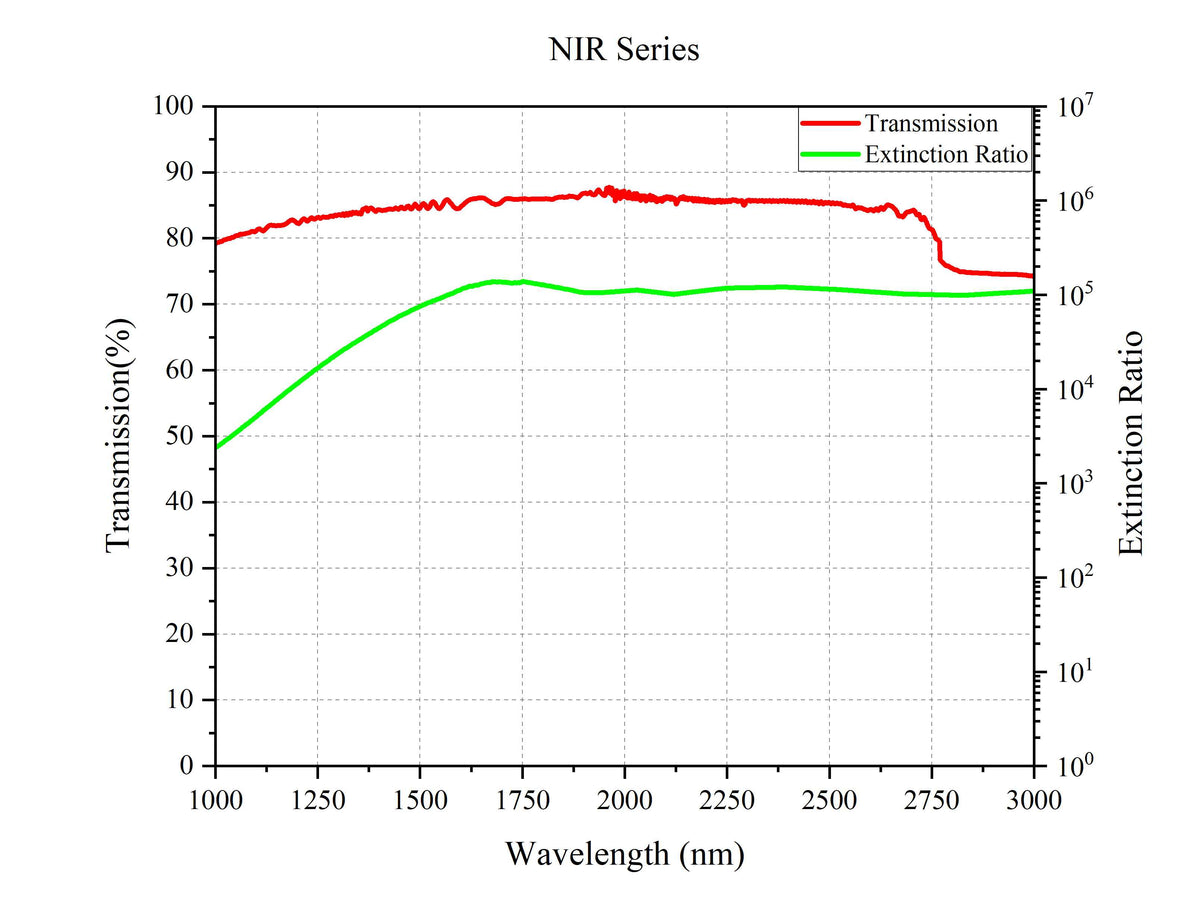

Curve - NIR

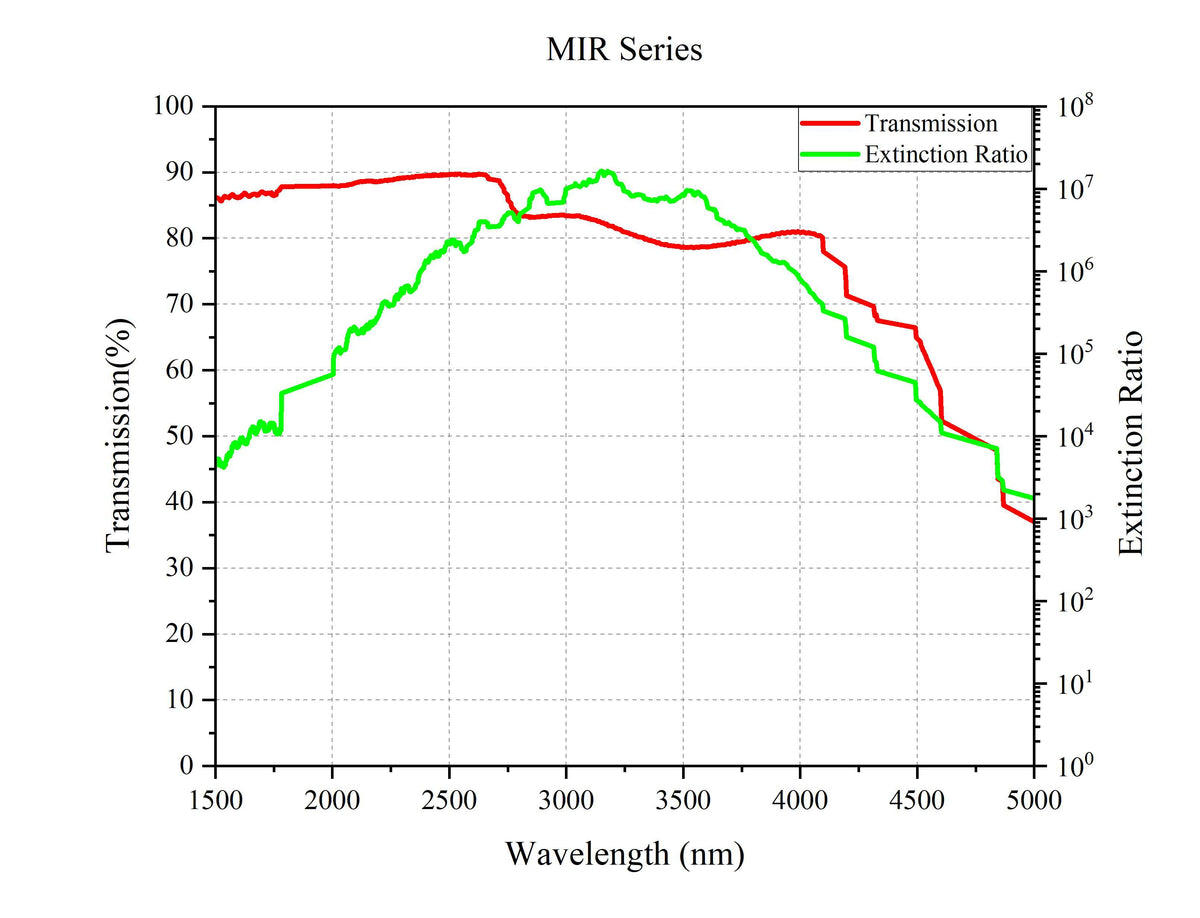

Curve - MIR

Product Family: Nanoparticle Thin Film Linear Polarizers (40 variants)

Product ▴▾	SKU	Optical Element Diameter ▴▾	Thickness ▴▾	Operating Wavelength ▴▾
Nanoparticle Thin Film Linear Polarizers NFLP25-IR1300-AR	`NFLP25-IR1300-AR`	25.0 mm	2.0 mm	1250 nm-1650 nm	View
Nanoparticle Thin Film Linear Polarizers NFLP25-VIS600-AR	`NFLP25-VIS600-AR`	25.0 mm	2.0 mm	510 nm-750 nm	View
Nanoparticle Thin Film Linear Polarizers NFLP25-VISIR-AR	`NFLP25-VISIR-AR`	25.0 mm	2.0 mm	600 nm-1200 nm	View
Nanoparticle Thin Film Linear Polarizers NFLP12-VISIR-AR	`NFLP12-VISIR-AR`	12.5 mm	2.0 mm	600 nm-1200 nm	View
Nanoparticle Thin Film Linear Polarizers NFLP12-VIS600-AR	`NFLP12-VIS600-AR`	12.5 mm	2.0 mm	510 nm-750 nm	View
Nanoparticle Thin Film Linear Polarizers MNFLP25-IR1300-AR	`MNFLP25-IR1300-AR`	25.0 mm	2.0 mm	1250 nm-1650 nm	View
Nanoparticle Thin Film Linear Polarizers MNFLP25-VISIR-AR	`MNFLP25-VISIR-AR`	25.0 mm	2.0 mm	600 nm-1200 nm	View
Nanoparticle Thin Film Linear Polarizers MNFLP25-VIS600-AR	`MNFLP25-VIS600-AR`	25.0 mm	2.0 mm	510 nm-750 nm	View
Nanoparticle Thin Film Linear Polarizers NFLP12-IR1300-AR	`NFLP12-IR1300-AR`	12.5 mm	2.0 mm	1250 nm-1650 nm	View
Nanoparticle Thin Film Linear Polarizers MNFLP12-VIS600-AR	`MNFLP12-VIS600-AR`	12.5 mm	2.0 mm	510 nm-750 nm	View
Nanoparticle Thin Film Linear Polarizers MNFLP12-VISIR-AR	`MNFLP12-VISIR-AR`	12.5 mm	2.0 mm	510 nm-740 nm	View
Nanoparticle Thin Film Linear Polarizers MNFLP12-IR1300-AR	`MNFLP12-IR1300-AR`	12.5 mm	2.0 mm	1250 nm-1650 nm	View
Nanoparticle Thin Film Linear Polarizers MNFLP25-VISIR	`MNFLP25-VISIR`	25.0 mm	2.0 mm	550 nm-1500 nm	View
Nanoparticle Thin Film Linear Polarizers MNFLP25-VIS600	`MNFLP25-VIS600`	25.0 mm	2.0 mm	510 nm-800 nm	View
Nanoparticle Thin Film Linear Polarizers MNFLP25-VIS500	`MNFLP25-VIS500`	25.0 mm	2.0 mm	480 nm-550 nm	View
Nanoparticle Thin Film Linear Polarizers MNFLP25-UV380	`MNFLP25-UV380`	25.0 mm	2.0 mm	365 nm-395 nm	View
Nanoparticle Thin Film Linear Polarizers MNFLP12-VISIR	`MNFLP12-VISIR`	12.5 mm	2.0 mm	550 nm-1500 nm	View
Nanoparticle Thin Film Linear Polarizers MNFLP12-VIS600	`MNFLP12-VIS600`	12.5 mm	2.0 mm	510 nm-800 nm	View
Nanoparticle Thin Film Linear Polarizers MNFLP12-VIS500	`MNFLP12-VIS500`	12.5 mm	2.0 mm	480 nm-550 nm	View
Nanoparticle Thin Film Linear Polarizers MNFLP12-UV380	`MNFLP12-UV380`	12.5 mm	2.0 mm	365 nm-395 nm	View
Nanoparticle Thin Film Linear Polarizers MNFLP12-IR1300	`MNFLP12-IR1300`	12.5 mm	2.0 mm	650 nm-2000 nm	View
Nanoparticle Thin Film Linear Polarizers MNFLP25-IR1300 Current	`MNFLP25-IR1300`	25.0 mm	2.0 mm	650 nm-2000 nm
Nanoparticle Thin Film Linear Polarizers MNFLP12-NIR	`MNFLP12-NIR`	12.5 mm	0.25 mm	1000 nm-3000 nm	View
Nanoparticle Thin Film Linear Polarizers MNFLP12-MIR	`MNFLP12-MIR`	12.5 mm	0.2 mm	1500 nm-5000 nm	View
Nanoparticle Thin Film Linear Polarizers MNFLP25-NIR	`MNFLP25-NIR`	25.0 mm	0.25 mm	1000 nm-3000 nm	View
Nanoparticle Thin Film Linear Polarizers MNFLP25-MIR	`MNFLP25-MIR`	25.0 mm	0.2 mm	1500 nm-5000 nm	View
Nanoparticle Thin Film Linear Polarizers NFLP25-MIR	`NFLP25-MIR`	25.0 mm	0.2 mm	1500 nm-5000 nm	View
Nanoparticle Thin Film Linear Polarizers NFLP25-NIR	`NFLP25-NIR`	25.0 mm	0.25 mm	1000 nm-3000 nm	View
Nanoparticle Thin Film Linear Polarizers NFLP25-VISIR	`NFLP25-VISIR`	25.0 mm	2.0 mm	550 nm-1500 nm	View
Nanoparticle Thin Film Linear Polarizers NFLP25-VIS600	`NFLP25-VIS600`	25.0 mm	2.0 mm	510 nm-800 nm	View
Nanoparticle Thin Film Linear Polarizers NFLP25-VIS500	`NFLP25-VIS500`	25.0 mm	2.0 mm	480 nm-550 nm	View
Nanoparticle Thin Film Linear Polarizers NFLP25-UV380	`NFLP25-UV380`	25.0 mm	2.0 mm	365 nm-395 nm	View
Nanoparticle Thin Film Linear Polarizers NFLP12-MIR	`NFLP12-MIR`	12.5 mm	0.2 mm	1500 nm-5000 nm	View
Nanoparticle Thin Film Linear Polarizers NFLP12-NIR	`NFLP12-NIR`	12.5 mm	0.25 mm	1000 nm-3000 nm	View
Nanoparticle Thin Film Linear Polarizers NFLP12-VISIR	`NFLP12-VISIR`	12.5 mm	2.0 mm	550 nm-1500 nm	View
Nanoparticle Thin Film Linear Polarizers NFLP12-VIS600	`NFLP12-VIS600`	12.5 mm	2.0 mm	510 nm-800 nm	View
Nanoparticle Thin Film Linear Polarizers NFLP12-VIS500	`NFLP12-VIS500`	12.5 mm	2.0 mm	480 nm-550 nm	View
Nanoparticle Thin Film Linear Polarizers NFLP12-UV380	`NFLP12-UV380`	12.5 mm	2.0 mm	365 nm-395 nm	View
Nanoparticle Thin Film Linear Polarizers NFLP12-IR1300	`NFLP12-IR1300`	12.5 mm	2.0 mm	650 nm-2000 nm	View
Nanoparticle Thin Film Linear Polarizers NFLP25-IR1300	`NFLP25-IR1300`	25.0 mm	2.0 mm	650 nm-2000 nm	View
