Princeton Instruments

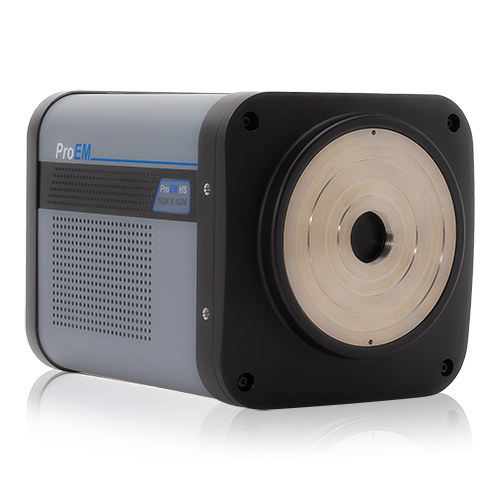

ProEM HS EMCCD Camera
PI-PROEM-HS-1024Contact for pricing
In Stock
Contact Sales
Design Tools
View all 49 calculators →Complete Your Setup
RoHS
REACH
The ProEM HS is a high-speed electron-multiplying CCD (EMCCD) camera designed for extreme low-light imaging and spectroscopy. Featuring on-chip electron multiplication gain up to 1000×, it achieves single-photon sensitivity with sub-electron effective read noise. Deep thermoelectric cooling to -95°C ensures minimal dark current. Available in 1024BX3 (1024×1024) and 512BX3 (512×512) formats with frame rates up to 34 fps full-frame.
Key Features
- Electron multiplication gain up to 1000×
- Single-photon sensitivity
- Effective read noise <1 e- with EM gain
- Thermoelectric cooling to -95°C
- Up to 34 fps full-frame
- Back-illuminated sensor with >90% peak QE
- Linear and photon-counting modes
Applications
- Single-molecule fluorescence
- Super-resolution microscopy (PALM/STORM)
- Astronomical spectroscopy
- Quantum optics
- Dynamic live-cell imaging
Specifications
| Parameter | Value |
|---|---|
| Wavelength Range Min | 200 nm |
| Wavelength Range Max | 1100 nm |
| Sensor Type | Back-Illuminated EMCCD |
| Pixel Size | 13.0 µm |
| Resolution | 1024x1024 px |
| Frame Rate | 34.0 fps |
| Cooling Method | Thermoelectric (TE) |
| Cooling Temperature | -95.0 °C |
| Spectral Range | 200-1100 nm |
| Quantum Efficiency | 95.0 % |
| Dark Current | 0.0002 e⁻/px/s |
| Weight | 4.5 kg |
| Wavelength Range | 200.0 – 1100.0 nm |
| Dark Current | 0.0002 e/px/h |
| Quantum Efficiency | 95.0% |
| Weight | 4.5 kg |
| Sensor Type | Back-Illuminated EMCCD |
| Pixel Size | 13.0 μm |
| Resolution | 1024x1024 |
| Frame Rate | 34.0 fps |
| Cooling Method | Thermoelectric (TE) |
| Cooling Temperature | -95.0 °C |
| Spectral Range | 200-1100 |
