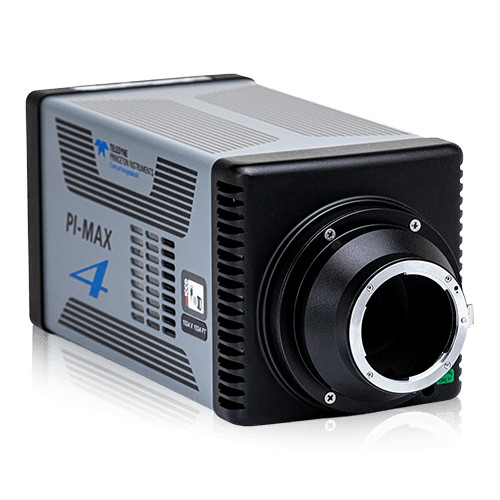

PI-MAX 4 Intensified CCD Camera
PI-PIMAX4-1024IContact for pricing
In Stock
Contact Sales
Design Tools
View all 49 calculators →Complete Your Setup
RoHS
REACH
The PI-MAX 4 is an intensified CCD (ICCD) camera system with ultrafast optical gating capability down to <500 ps. The image intensifier provides optical gains up to 10,000× for extreme low-light detection, while the gating enables time-resolved imaging and spectroscopy. Available in ICCD and emICCD (electron-multiplying) configurations. The SuperSynchro timing generator provides <30 ps insertion delay jitter for precise synchronization.
Key Features
- Ultrafast optical gating <500 ps
- Intensifier gain up to 10,000×
- SuperSynchro timing (<30 ps jitter)
- Available in ICCD and emICCD configurations
- Thermoelectric cooling to -25°C (intensifier)
- Up to 26 fps full-frame
- Gen II and Gen III intensifier options
Applications
- Time-resolved spectroscopy
- LIBS (Laser-Induced Breakdown Spectroscopy)
- Plasma diagnostics
- Combustion imaging
- Fluorescence lifetime imaging (FLIM)
Specifications
| Parameter | Value |
|---|---|
| Wavelength Range Min | 120 nm |
| Wavelength Range Max | 1100 nm |
| Sensor Type | Intensified CCD (ICCD) |
| Pixel Size | 13.0 µm |
| Resolution | 1024x1024 px |
| Frame Rate | 26.0 fps |
| Cooling Method | Thermoelectric (TE) |
| Cooling Temperature | -25.0 °C |
| Spectral Range | 120-1100 nm |
| Gating Time | <500 ps |
| Quantum Efficiency | 50.0 % |
| Weight | 7.0 kg |
| Wavelength Range | 120.0 – 1100.0 nm |
| Quantum Efficiency | 50.0% |
| Weight | 7.0 kg |
| Sensor Type | Intensified CCD (ICCD) |
| Pixel Size | 13.0 μm |
| Resolution | 1024x1024 |
| Frame Rate | 26.0 fps |
| Cooling Method | Thermoelectric (TE) |
| Cooling Temperature | -25.0 °C |
| Spectral Range | 120-1100 |
| Gating Time | <500 ps |
No documents available for this product.
No CAD drawings available for this product.
Product Family: Scientific Cameras (13 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| LANSIS Large Area Soft X-ray Imager |
PI-LANSIS-2048
| — | — | — | Contact |
| PI-MTE3 Thermoelectric X-ray CCD Camera |
PI-MTE3-2048
| — | — | — | Contact |
| NIRvana InGaAs Camera |
PI-NIRVANA-640
| — | — | — | Contact |
| PIXIS-XO Soft X-ray CCD Camera |
PI-PIXIS-XO-2048
| — | — | — | Contact |
| PIXIS TE-Cooled CCD Camera |
PI-PIXIS-2048B
| — | — | — | Contact |
| PyLoN-IR InGaAs Spectroscopy Camera |
PI-PYLON-IR-1024
| — | — | — | Contact |
| PyLoN LN2-Cooled CCD Camera |
PI-PYLON-400BR
| — | — | — | Contact |
| PI-MAX 4 Intensified CCD Camera Current |
PI-PIMAX4-1024I
| — | — | — | |
| ProEM HS EMCCD Camera |
PI-PROEM-HS-1024
| — | — | — | Contact |
| SOPHIA-XO Soft X-ray CCD Camera |
PI-SOPHIA-XO-2048
| — | — | — | Contact |
| KURO Back-Illuminated sCMOS Camera |
PI-KURO-2048B
| — | — | — | Contact |
| COSMOS Large Format Scientific CMOS Camera |
PI-COSMOS-4226
| — | — | — | Contact |
| BLAZE Spectroscopy CCD Camera |
PI-BLAZE-400
| — | — | — | Contact |
Compatible Products
Products commonly paired with the PI-MAX 4 Intensified CCD Camera.
