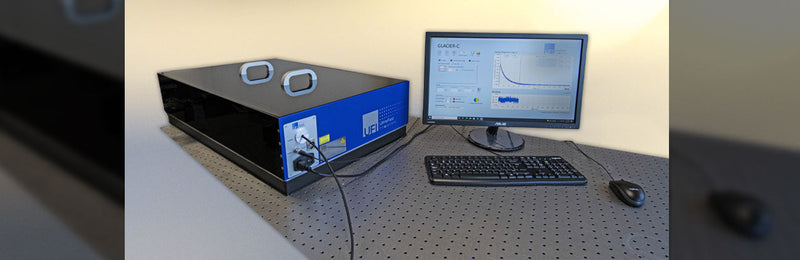

GLACIER®-C is a broadband version of the GLACIER® reflectometer, replacing single-wavelength CW lasers with a supercontinuum light source. This enables continuous-spectrum reflectivity / transmission measurements across a wide wavelength range — ideal for characterizing chirped-mirror coatings, dispersion-compensated mirrors, and ultra-broadband optics that require spectrum-resolved metrology.
GLACIER-C inherits the single-ppm precision of the GLACIER platform but provides full-spectrum data in a single measurement, eliminating the need for multiple discrete-wavelength runs.
Key Product Features
- Single-ppm sensitivity across full broadband spectrum
- Supercontinuum source — continuous wavelength coverage
- Ideal for chirped-mirror & dispersion-engineered coatings
- Single-measurement broadband loss curve
- Compatible with high-reflectivity coatings (R > 99.999%)
- Automated software with intuitive interface
Developed at the Max-Planck-Institute of Quantum Optics. UFI is a spin-off from LMU Munich and the Max Planck Society.
| Models | GLACIER | GLACIER-C | GLACIER®-123 |
|---|---|---|---|
| Light source | Single-wavelength CW lasers | Supercontinuum (broadband) | 1064 nm + harmonics |
| Wavelength options | 532 / 633 / 800 / 1064 / 1550 nm | Continuous broadband | 1064, 532, 355 nm |
| Number of wavelengths | Configurable (1-5+) | Continuous | Up to 3 |
| Measurement type | Discrete-λ R/T/A/S | Broadband R/T/A/S | Harmonic-resolved R/T/A/S |
| Sensitivity | Single ppm | Single ppm | Single ppm |
| Compatible R range | R > 99.999% | R > 99.999% | R > 99.999% |
Supercontinuum source provides single-measurement broadband loss curves.
Custom wavelength ranges on request.
Source: UltraFast Innovations manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
