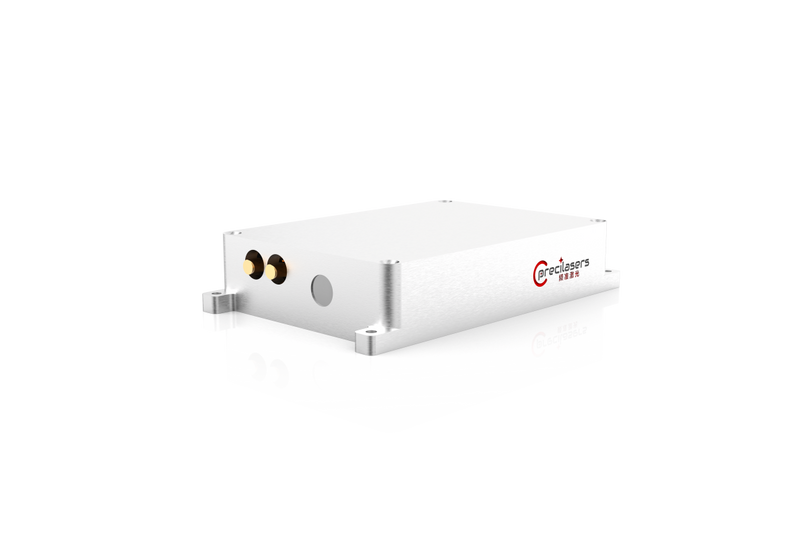

1060-1625nm Fixed external cavity diode laser
Contact for pricing
Contact Sales
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
1060-1625nm Fixed external cavity diode laser Precilasers’ fixed external cavity semiconductor lasers feature mode-hop-free operation, narrow linewidth, ultra-low intensity noise, and an ultra-wide modulation bandwidth. These characteristics make them ideal for a wide range of research applications, including atomic gravimeters, optical lattices, lidar, coherent optical communications, high-precision optical sensing, optical metrology, and precision spectroscopy.
Features
- Narrow Linewidth Low Intensity
- Noise High
- Speed Tuning Possible Linear
- Polarization Never Mode
- Excellent Beam Quality
Applications
- Rb Atom Experiment and
- Application Optical Phase Locking
- Fiber Optic Sensing
| Models | Specification |
|---|---|
| Available Wavelength Options | 1000-1260nm / 1260-1360nm / 1360-1525nm / 1525-1575nm / 1575-1625nm |
| Typical Wavelengths | 1064nm,1178nm / 1319nm / 1396.89nm / 1550.12nm,1560.48nm / 1589.95nm |
| Output Power | >10mW |
| Linewidth (1) (100µs integration time) | <20kHz / <20kHz / <20kHz/10kHz (2) / <10kHz/5kHz (2) / <10kHz/5kHz (2) |
| Tuning Range (Temperature) | >4GHz / >7GHz / >4GHz/7GHz (3) / >10GHz/7GHz (3) / >10GHz/7GHz (3) |
| Current Tuning Range | >500MHz |
| Current Tuning Bandwidth | >1MHz |
| Intensity Noise (10Hz-10MHz integration) | <0.03% |
| Intensity Noise (10kHz) | <-140dBc/Hz |
| Polarization Extinction Ratio | >20dB |
| Power Stability (3 Hour RMS) | <1% |
| Beam Quality | M 2 <1.1 |
| Output Mode | Single-mode polarization-maintaining fiber output, FC/APC connector |
| Package | Including power supply and temperature control driver, volume: 117mm*83mm*25mm OR undriven Butterfly Package Package |
| Weight | <0.5kg |
| Operating Temperature | 0-60°C |
| Power Consumption | <3W |
| Powered By | 5VDC, 1A, power adapter included |
Source: Precilasers manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
