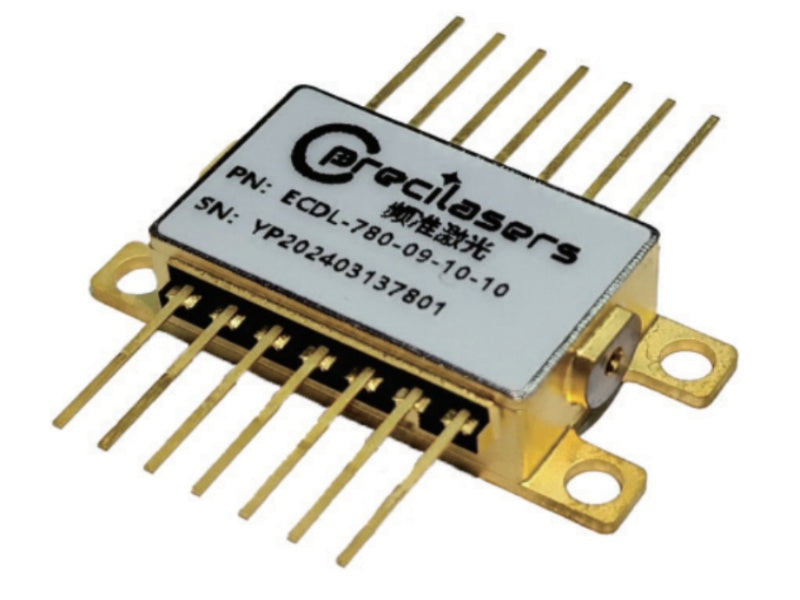

780nm Fixed Externally Cavity Diode Laser(spatial output) Precilasers' spatial output 780nm semiconductor laser diode emits continuous laser with narrow line width and linear polarization.
Features
- Narrow Linewidth Linear Polarization
- Continuous Laser
| Models | FECL-SF-X-BF (1) |
|---|---|
| Center Wavelength | 780.23nm |
| Threshold Current | 120mA |
| Maximum Current | 250mA |
| Working Current | 180mA |
| Output Power | 24.4mW |
| Temperature Frequency Tuning Range | 17.5GHz |
| Linewidth (2) (100 us integration) | 75kHz |
| Thermistor | 10kΩ |
| I-TEC Limits | 1500mA |
Source: Precilasers manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
No CAD drawings available for this product.
Product Family: Tunable Lasers (ECDL) (7 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| 780nm Fixed Externally Cavity Diode Laser (fiber output) |
| — | — | — | Contact |
| 780nm Fixed Externally Cavity Diode Laser(spatial output) Current |
| — | — | — | |
| 450-1000nm Fixed external cavity diode laser |
| — | — | — | Contact |
| 1060-1625nm Fixed external cavity diode laser |
| — | — | — | Contact |
| 770-795nm Fixed external cavity diode laser |
| — | — | — | Contact |
| 633nm Fixed external cavity diode laser |
| — | — | — | Contact |
| 630-1600nm External cavity diode laser |
| — | — | — | Contact |
