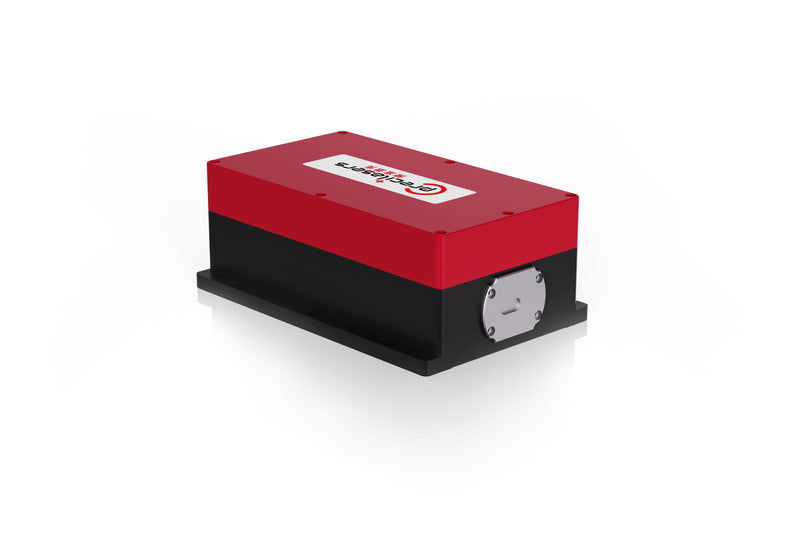

633nm Fixed external cavity diode laser
Contact for pricing
Contact Sales
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
633nm Fixed external cavity diode laser Based on fixed outer cavity semiconductor technology, Precilasers can provide fixed outer cavity semiconductor lasers with a central wavelength of 633nm. The product adopts optical communication-level semiconductor laser packaging technology, combined with a driving source with high modulation bandwidth, to achieve characteristics such as narrow line width, low intensity noise, optional output mode and tunable.
Features
- Narrow Linewidth Low Intensity
- Noise High
- Speed Tuning Possible Linear
- Polarization Excellent Beam Quality
| Models | Specification |
|---|---|
| Center Wavelength | 633nm |
| Linewidth (1) (100µs integration time ) | <200KHz |
| Package Type | Butterfly Package , Without drive , No isolator / System Integration, With current source and temperature control drive (Built-in isolator) |
| Output Mode | Free Space / Free Space / FC/APC (2) / Free Space / FC/APC (2) |
| Beam Quality | <1.3 / <1.3 / <1.1 / <1.3 / <1.1 |
| Output Power | >15mw / >30mw / >15mw / >10mw / >30mw / >20mw |
| Tuning | Tunable / Not Tunable / Tunable / Not Tunable |
| Temperature Frequency Tuning Range | >5GHz / / / >5GHz / / |
| Polarization Extinction Ratio | >20dB |
| Power Stability (3 Hours RMS) | <1% |
| Intensity Noise (10Hz-10MHz integration) | <0.03% / <0.05% / <0.03% / <0.05% |
| Intensity Noise (10kHz) | <-140dBc/Hz / <-130dBc/Hz / <-140dBc/Hz / <-130dBc/Hz |
| Current Tuning Range | >500MHz / / / >500MHz / / |
| Current Tuning Bandwidth | >1MHz / / / >1MHz / / |
| Weight | Driver version included, <1.5kg |
| Operating Temperature | 0-60°C |
| Power Consumption | <3W |
| Powered By | 5VDC, 1A, power adapter included |
Source: Precilasers manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
