Precilasers

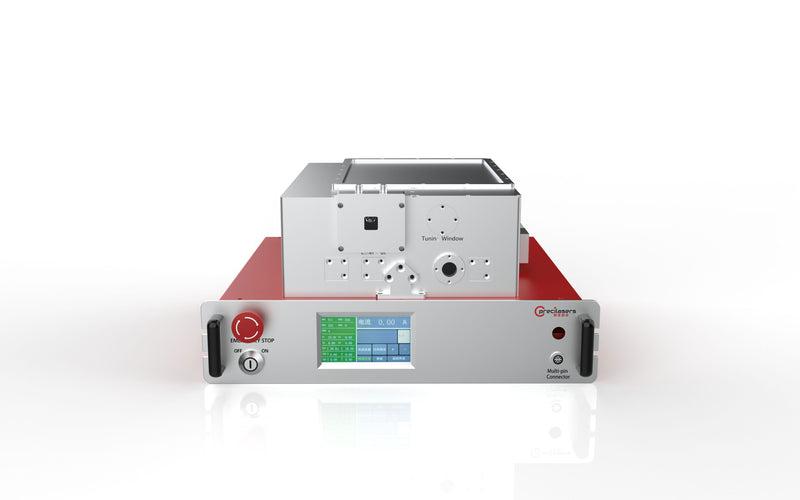

461nm Narrow linewidth laser
Contact for pricing
Contact Sales
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
461nm Narrow linewidth laser Based on single frequency seed laser,low noise fiber amplifier and high efficiency frequency convert technique, Precilasers can provide narrow linewidth 460-488nm CW lasers,features with high frequency stability,long life and good beam quality.
Features
- Narrow Linewidth High Power
- High power Stability Good
- Beam Quality Never Mod
- Hop
| Models | FL-SF-X-Y (1) -CW |
|---|---|
| Wavelength Range | 460-488nm |
| Typical Wavelength | 460nm, 480nm, 488nm |
| Linewidth (2) (100 us integration ) | <40kHz |
| Operational Mode | CW |
| Output Power | >50mW / >1W / >3W / >6W |
| Beam Diameter | 1±0.15 mm |
| Beam Waist Location | output aperture±0.5m |
| Beam Divergence (full angle) | <1mrad |
| Beam Circularity | 0.9-1.1 |
| Beam Pointing Stability (PP) | <15µrad / <50µrad |
| Beam Quality | TEM00, M²<1.3 |
| Polarization | Linear, >20dB |
| Power Stability | <0.75% @3hours, RMS |
| Relative Intensity Noise | <0.2%(RMS, 10Hz-10MHz integration) |
| Cooling | Air cooling / Water cooling |
| Cold Start | <2 hours |
| Warm Start | <30 minutes |
| Controller Size | ≤483mm x 420mm x 133mm (50mW) / ≤483mm x 520mm x 132mm (1W,3W,6W) |
| Laser Head Size | ≤466mm x 133mm x 52mm(50mW) / ≤253mm x 455mm x 118.5mm (1W,3W,6W) |
| Chiller Size | NA / ≤58cm x 29cm x 52cm |
| Chiller Weight | ≤25kg |
| Cable Length Between Laser Head And Controller | >1.5m |
| Operating Temperature (No condensing) | 15-30 °C (Air cooling) / 15-35 °C (Water cooling) |
| Power Supply | 100V-240V, AC, 50/60Hz |
| Communication | RS422 |
Source: Precilasers manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
No CAD drawings available for this product.
