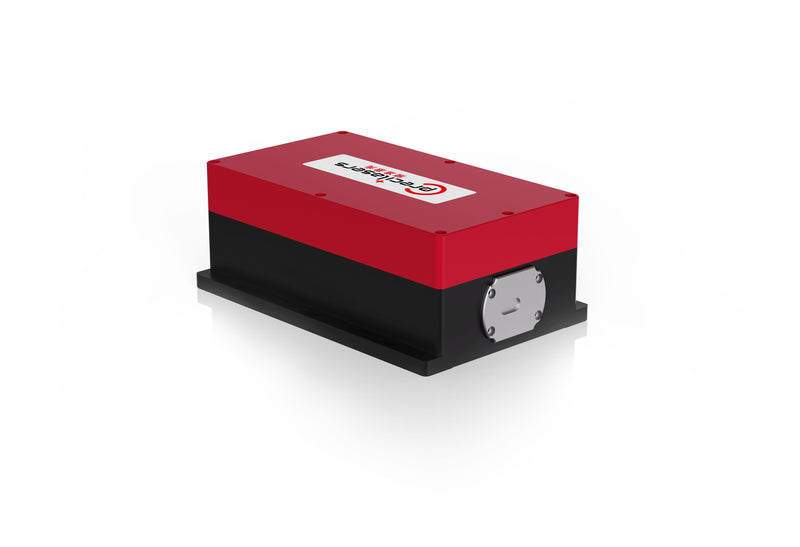

450-1000nm Fixed external cavity diode laser
Contact for pricing
Contact Sales
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
450-1000nm Fixed external cavity diode laser Precilasers’ fixed external cavity semiconductor lasers feature mode-hop-free operation, narrow linewidth, ultra-low intensity noise, and an ultra-wide modulation bandwidth. These characteristics make them ideal for a wide range of research applications, including atomic gravimeters, optical lattices, lidar, coherent optical communications, high-precision optical sensing, optical metrology, and precision spectroscopy.
Features
- Narrow Linewidth Low Intensity
- Noise High
- Speed Tuning Possible Linear
- Polarization Never Mode
- Excellent Beam Quality
Applications
- Rb Atom Experiment and
- Application Optical Phase Locking
- Fiber Optic Sensing
| Models | Specification |
|---|---|
| Available Wavelength Options | 450-1000nm |
| Typical Wavelengths | 461nm / 679nm / 689nm / 698nm / 707nm / 780nm / 795nm / 813nm / 852nm |
| Linewidth (1) (100µs integration time ) | <200kHz/100kHz (2 ) |
| Temperature Frequency Tuning Range (Never mode hop) | >5GHz |
| Package Type | Butterfly Package, No isolator / With current source and temperature control drive, Built-in isolator |
| Output Power | >15mW / >15mW/30mW (3) / >10mW/20mW (3) / >10mW/20mW (3) |
| Output Mode | Free Space / Free Space / Fiber Output / Fiber Port |
| Beam Quality | TEM00mode,M2<1.3 / TEM00mode,M2<1.3 / TEM00mode,M2<1.1 / TEM00mode,M2<1.1 |
| Polarization Extinction Ratio | >20dB |
| Power Stability (3 Hours RMS) | <1% |
| Intensity Noise (10Hz-10MHz integration) | <0.03% |
| Intensity Noise (10kHz) | <-140dBc/Hz |
| Current Tuning Range | >500MHz |
| Current Tuning Bandwidth | >1MHz |
| Weight | Driver version included, <1.5kg |
| Operating Temperature | 0-60°C |
| Power Consumption | <3W |
| Powered By | 5VDC, 1A, power adapter included |
Source: Precilasers manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
No CAD drawings available for this product.
