3-inch Stainless Steel Optical Mount MT-AM3

✔ In Stock — Ships Today

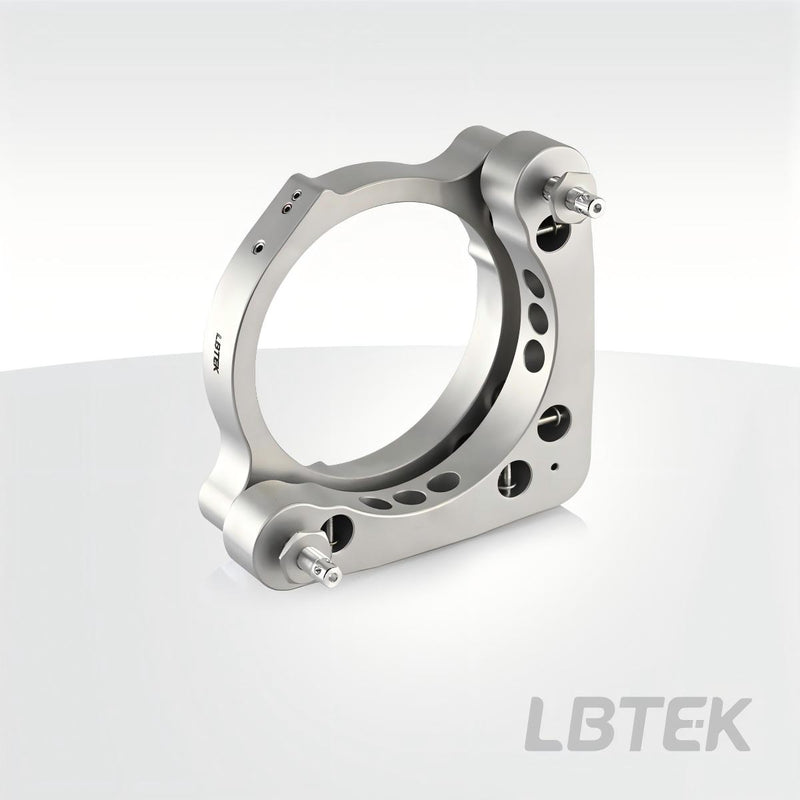

LBTEK 3-inch stainless steel lens mount for mounting optical components with a diameter of 76.2 mm. The optical component is secured via flexible spring leaves and fixing screws. Two M6×0.25 precision adjusters provide the adjustment mount with an angular adjustment range of ±4°. Comes without knobs but with lock nuts; adjustment without knobs requires the use of a hex key. The adjusters feature side through-holes for easy insertion and precise adjustment. The optical adjustment mount has M4 countersunk mounting holes on the side. Includes two M4 thin-head hex socket screws and one each of 2.0 mm and 2.5 mm hex keys with purchase.

Key Features

  • For installing optical components with a diameter of 76.2 mm
  • 2 precision adjusters with side through-holes for easy insertion during fine adjustment
  • Adjuster, without knob, with locking nut
  • Adjustable angle ±4°
  • Adjustment accuracy 0.19°/per revolution
  • Flexible spring leaf and fixing screws secure the optical component

Application

Application Example

Material 316L Stainless Steel
Surface Treatment Sandblasting
Applicable optical element diameter Ø76.2 mm
Optical component mounting method Flexible spring piece and fixing screw
Countersunk Hole Specification/Quantity M4/6 pcs
Optical axis center height 50.8 mm
Mounting Hardware Included 2 M4×14 hex socket head cap screws
Minimum optical element thickness 4 mm
Hex Wrench 2.0\2.5 mm, one each
Adjustable pitch/yaw angle range ±4°
Adjuster specifications/quantity No knob, with side hole, with lock nut M6×0.25 precision regulator/2 pcs
Specification Sheet PDF — Download
Lead Time: 8.0 week1s
CAD Drawing Download

Product Family: MT High-Stability Mounts (50 variants)
