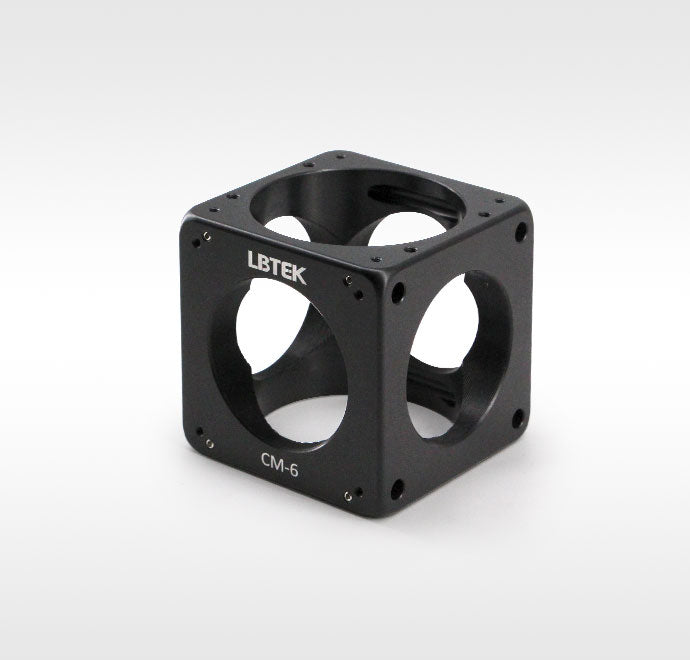

60 mm coaxial cube and accessories CM-6

The LBTEK 60 mm coaxial cube is designed for 60 mm coaxial systems, with the engraved surface serving as the front face. The top and bottom faces feature through-holes with a diameter of 63.5 mm, along with M3 threaded holes for mounting 60 mm coaxial cube accessories such as cover plates or adjustable platforms, enabling the installation of optical components. When used in conjunction with CM-6B1C and CM-6B2C, it can clamp rectangular or other objects with a length and width less than 42 mm and a thickness between 32 mm and 66 mm, provided the top and bottom surfaces are parallel. The front, back, left, and right faces all feature SM2 threaded through-holes for integrating other accessories, such as SM2 threaded sleeves. The left and right side faces include Ø6 mm through-holes for mounting Ø6 mm rods, while the front and back faces have M3 threaded holes for securing Ø6 mm rods.
