60 mm coaxial cube and accessories CM-6B4C
CM-6B4C$79.01
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
Complete Your Setup
RoHS
REACH
60 mm coaxial cube and accessories — Model CM-6B4C
✔ In Stock — Ships Today

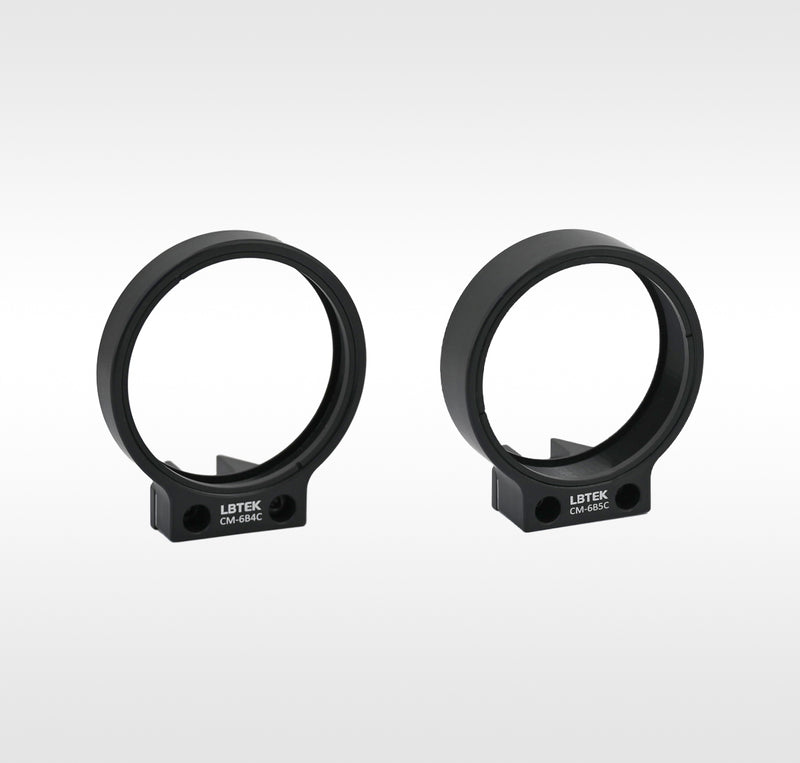

The Ø50.8 mm optical component mounts provided by LBTEK are compatible with 60 mm coaxial systems via CM-6B2, and can also be mounted to free space using M4 countersunk slots. Among them, CM-6B4C is used to mount Ø50.8 mm optical components with a maximum thickness of 6.7 mm, while CM-6B5C is used for Ø50.8 mm optical components with a maximum thickness of 12.3 mm, both secured by retaining rings.
Key Features
- Material: 6061-T6 Aluminum Alloy
- Optical Component Installation Specification: Ø50.8 mm
- Maximum Optical Component Thickness: 6.7 mm or 12.3 mm
Application
Used in conjunction with the CM-6B2 platform, install into the CM-6 cube
| Clear Aperture | 48.3 mm |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: 60 mm coaxial cube and accessories (12 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| 60 mm coaxial cube and accessories FHM2 |
FHM2
| — | — | — | View |
| 60 mm coaxial cube and accessories CM-6B3C |
CM-6B3C
| — | — | — | View |
| 60 mm coaxial cube and accessories CM-6 |
CM-6
| — | — | — | View |
| 60 mm coaxial cube and accessories CM-6B2 |
CM-6B2
| — | — | — | View |
| 60 mm coaxial cube and accessories CM-6B4C Current |
CM-6B4C
| — | — | — | |
| 60 mm coaxial cube and accessories CM-6B5C |
CM-6B5C
| — | — | — | View |
| 60 mm coaxial cube and accessories CM-6A-A |
CM-6A-A
| — | — | — | View |
| 60 mm coaxial cube and accessories CM-6A |
CM-6A
| — | — | — | View |
| 60 mm coaxial cube and accessories CM-6A-B |
CM-6A-B
| — | — | — | View |
| 60 mm coaxial cube and accessories CM-6B1 |
CM-6B1
| — | — | — | View |
| 60 mm coaxial cube and accessories CM-6B1C |
CM-6B1C
| — | — | — | View |
| 60 mm coaxial cube and accessories CM-6B2C |
CM-6B2C
| — | — | — | View |
