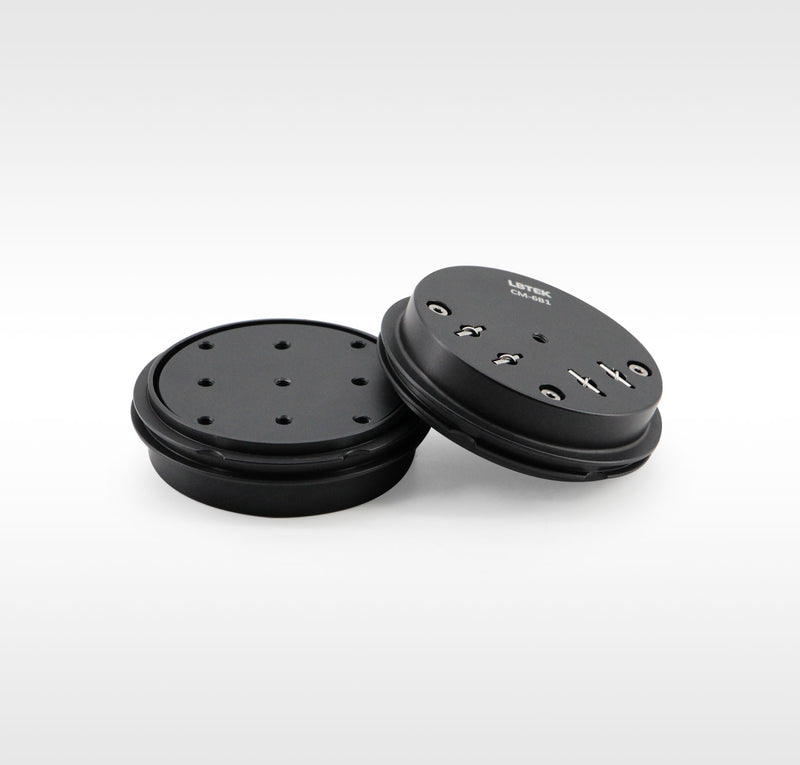

60 mm coaxial cube and accessories — Model CM-6B1
✔ In Stock — Ships Today
The LBTEK 60 mm coaxial prism mount can be installed on the top or bottom of a 60 mm coaxial cube. Equipped with three M5×025 adjusters, it provides ±3° pitch, yaw, and 6 mm displacement in the Z-axis direction. The bottom features M4 threaded holes for free-space applications, while the mounting surface has nine M4 threaded holes uniformly distributed within a 36.5 mm × 36.5 mm square area with 18.25 mm spacing. It is compatible with CA-1 and CA-2 clamping arms for mounting optical components such as beam splitter cubes and prisms (clamping arms sold separately).
Key Features
- Applicable for coaxial systems and free space
- Provides ±3° pitch and yaw adjustment, with 6 mm adjustment along the Z-axis
- Suitable for mounting beam splitter cubes and prisms
Application
Install square components in conjunction with the pressure arm
No specifications available for this product.
