60 mm coaxial cube and accessories CM-6B2

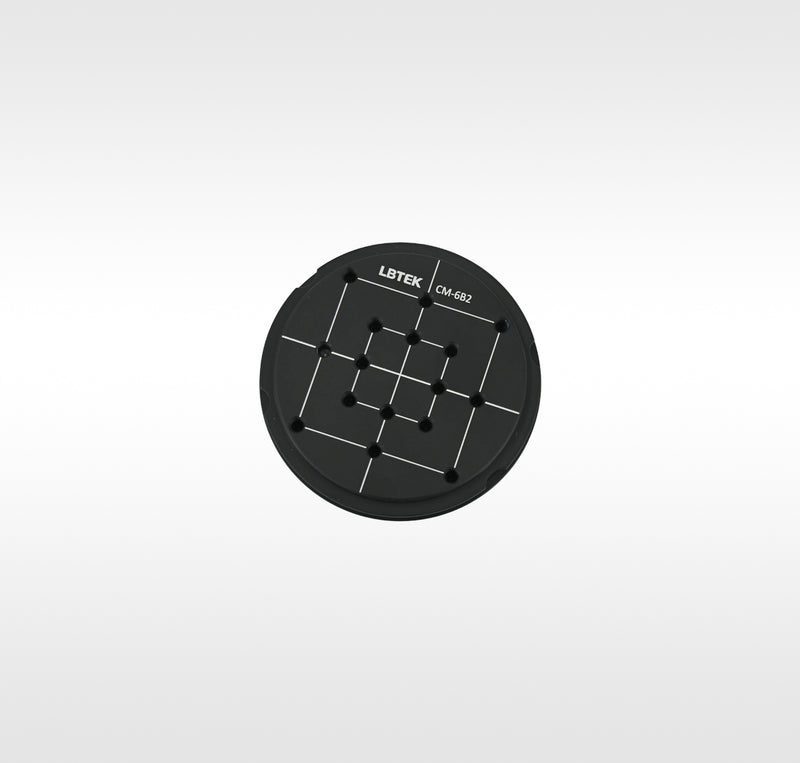

The LBTEK 60 mm coaxial prism platform CM-6B2 can be installed on the top or bottom of a 60 mm coaxial cube by tightening the included M4 round-head screws through the four arc-shaped slots on the edge of the CM-6B2 into the coaxial cube, followed by rotating the CM-6B2 platform to lock the M4 round-head screws. Rough rotational adjustment is possible during installation. The bottom features M4 threaded holes for free-space applications, while the platform surface has 16 M4 threaded holes. These threaded holes can be used to mount CA-1 and CA-2 clamping arms (which come with M4 studs) for installing optical components such as beam splitter cubes and prisms. Note that the clamping arms are sold separately. They can also be used to mount other devices with M4 mounting options, such as CM-6B4C and CM-6B5C.
