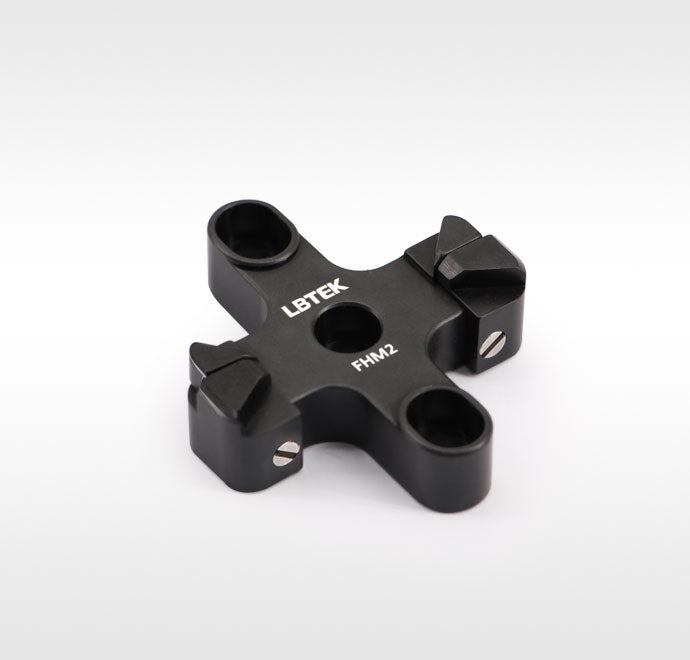

60 mm coaxial cube and accessories — Model FHM2
✔ In Stock — Ships Today
The rectangular filter mount provided by LBTEK is compatible with 60 mm coaxial systems through CM-6B1. It can also be used in free space via M4 countersunk slots. The spring-loaded clamping arm can secure filters with a maximum thickness of 4 mm. Simply apply a horizontal force to place the optical component in the generated gap, then release the clamping arm to secure the optical component. It can be used with CM-6 to hold rectangular optical components with heights less than 63 mm and lengths between 30 mm and 53 mm.
Key Features
- Material: 6061-T6 Aluminum Alloy
- Maximum Clamping Thickness 4 mm for Rectangular Optical Elements
- Can Accommodate Rectangular Optical Elements up to 63 mm in Length and 30 mm~53 mm in Width within CM-6 Coaxial Cube
Application
Compatible with the CM-6B1 adjustable platform for installation into the CM-6 coaxial cube
No specifications available for this product.
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
