60 mm coaxial cube and accessories CM-6A-A

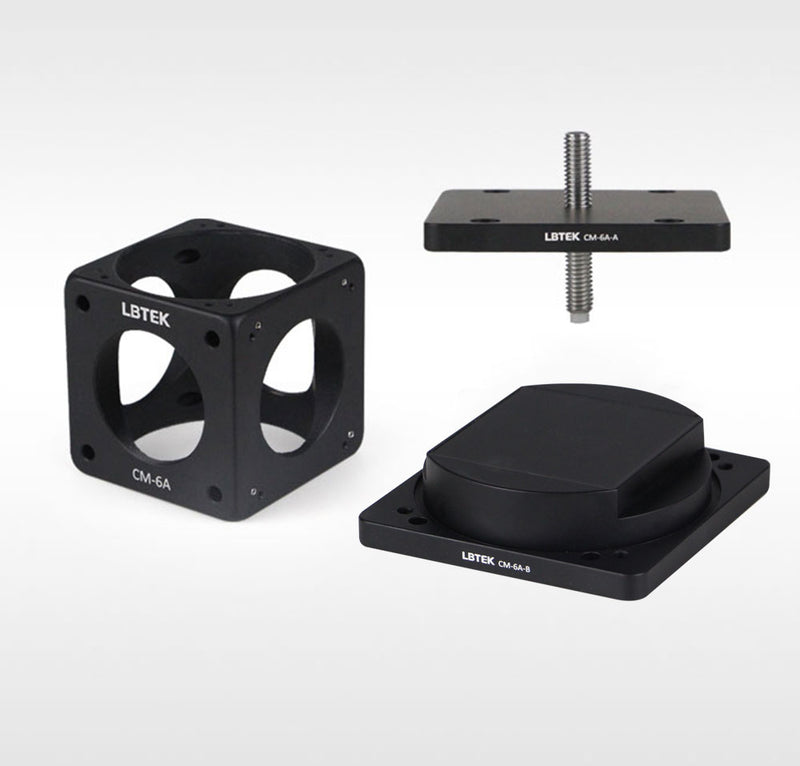

The LBTEK 60 mm coaxial beam splitter cube mount is compatible with 60 mm coaxial systems. The main frame CM-6A is often paired with the pressure plate CM-6A-A and base plate CM-6A-B to mount Ø50.8 mm beam splitter cubes. With the engraved side as the front, all four sides (front, back, left, and right) of the main frame CM-6A feature SM2 threaded through-holes for integrating other accessories, such as SM2 threaded sleeves. The front and back sides include Ø6 mm through-holes for securing Ø6 mm rods with set screws, while the left and right sides have M3 threaded holes for mounting Ø6 mm rods. The pressure plate CM-6A-A and base plate CM-6A-B work together to clamp the optical component, with O-ring rubber seals on both plates to encapsulate the cube. The CM-6A-A features a central M8 rubber-tipped screw for clamping, adjustable with a 4 mm hex key. The CM-6A-B has an M6 threaded mounting hole at the bottom for connecting to optical rods.
