60 mm coaxial cube and accessories — Model CM-6B1C
✔ In Stock — Ships Today

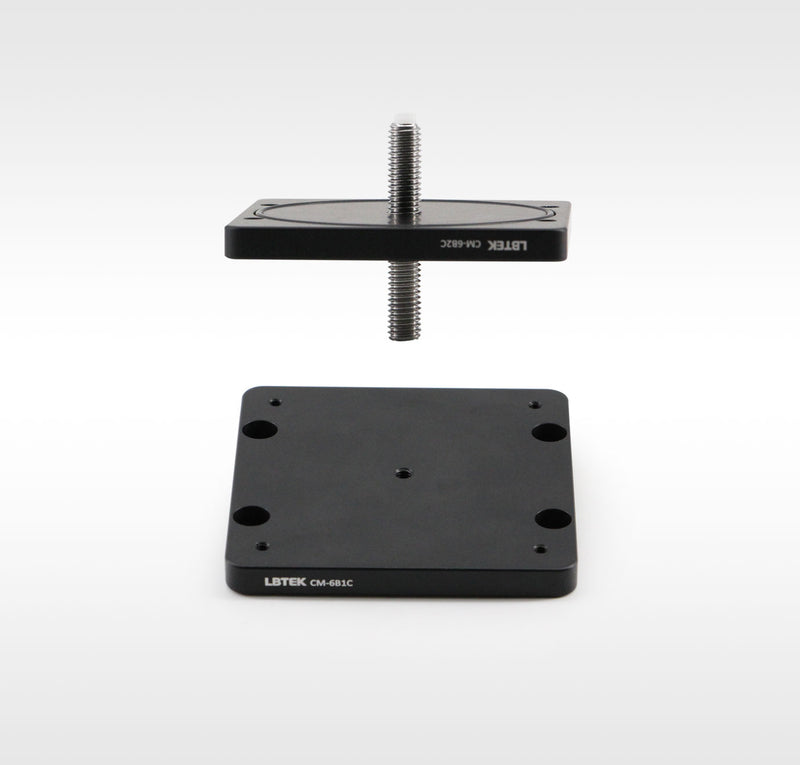

The LBTEK 60 mm coaxial cube mounting plate is designed for 60 mm coaxial cubes. When used in combination, it enables the clamping of rectangular or other objects with length and width less than 40 mm and thickness between 32 mm to 66 mm, featuring parallel top and bottom surfaces. Among them, CM-6B1C serves as the cube cover plate, while CM-6B2C functions as the cube clamping plate. When used together, they securely clamp the object to be mounted. The mounting plate is equipped with an O-ring to encapsulate the cube. The CM-6B1C features M4 threaded mounting holes on the bottom, and the CM-6B2C has an M8 rubber-tipped screw at the center for pressing the object to be mounted. Adjustment is performed using a 4 mm hex wrench.
Key Features
- Used to press optical components tightly
- Equipped with O-ring for sealing
- Cover plate and pressure plate are used in combination
Application
Install square components in conjunction with CM-6
No specifications available for this product.
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: 60 mm coaxial cube and accessories (12 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| 60 mm coaxial cube and accessories FHM2 |
FHM2
| — | — | — | View |
| 60 mm coaxial cube and accessories CM-6B3C |
CM-6B3C
| — | — | — | View |
| 60 mm coaxial cube and accessories CM-6 |
CM-6
| — | — | — | View |
| 60 mm coaxial cube and accessories CM-6B2 |
CM-6B2
| — | — | — | View |
| 60 mm coaxial cube and accessories CM-6B4C |
CM-6B4C
| — | — | — | View |
| 60 mm coaxial cube and accessories CM-6B5C |
CM-6B5C
| — | — | — | View |
| 60 mm coaxial cube and accessories CM-6A-A |
CM-6A-A
| — | — | — | View |
| 60 mm coaxial cube and accessories CM-6A |
CM-6A
| — | — | — | View |
| 60 mm coaxial cube and accessories CM-6A-B |
CM-6A-B
| — | — | — | View |
| 60 mm coaxial cube and accessories CM-6B1 |
CM-6B1
| — | — | — | View |
| 60 mm coaxial cube and accessories CM-6B1C Current |
CM-6B1C
| — | — | — | |
| 60 mm coaxial cube and accessories CM-6B2C |
CM-6B2C
| — | — | — | View |
