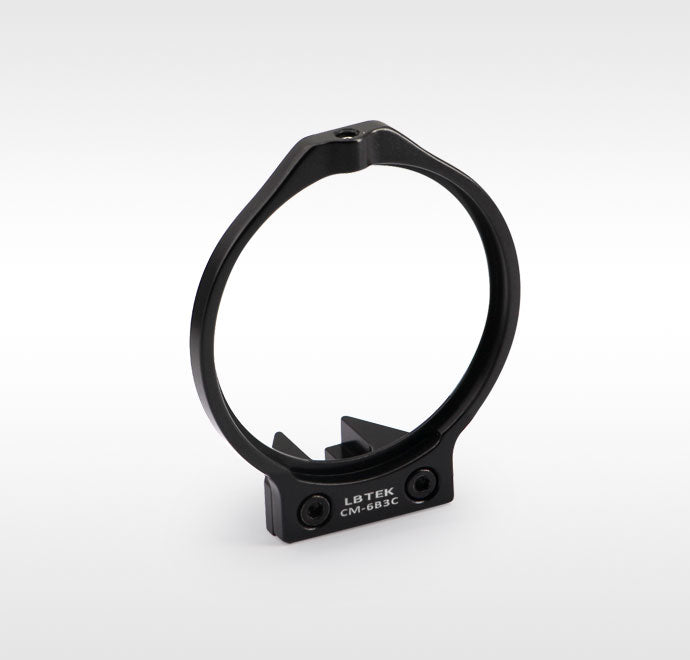

60 mm coaxial cube and accessories — Model CM-6B3C
✔ In Stock — Ships Today
The Ø50.8 mm optical component mount provided by LBTEK is compatible with 60 mm coaxial systems via CM-6B1, and can also be installed in free space using M4 countersunk slots. This mount is suitable for optical components with Ø50.8 mm diameter and minimum thickness of 2.5 mm, and can be secured using knurled screws with a dual-wire locking structure.
Key Features
- Material: 6061-T6 Aluminum Alloy
- Optical Component Installation Specification: Ø50.8 mm
- Minimum Optical Component Thickness: 2.5 mm
Application
Compatible with the CM-6B1 adjustable platform for installation into the CM-6 coaxial cube
| Clear Aperture | 48.3 mm |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: 60 mm coaxial cube and accessories (12 variants)
