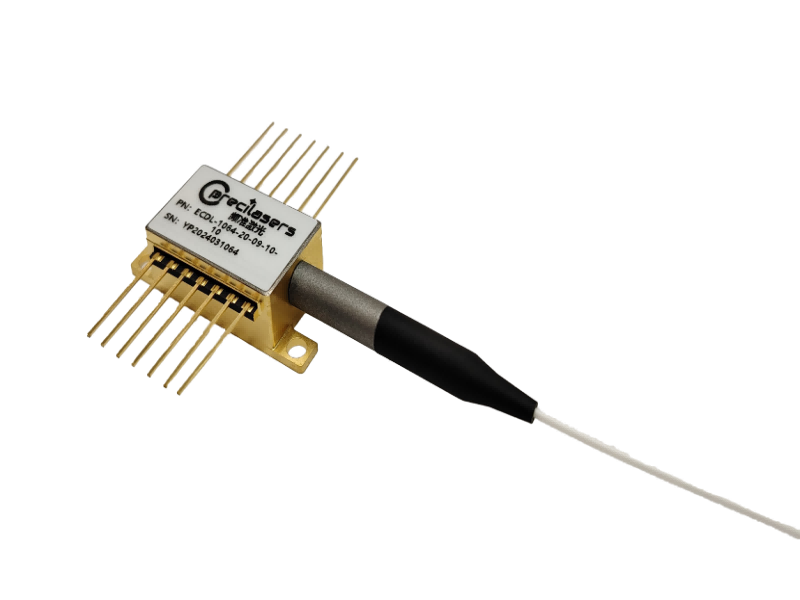

780nm Fixed Externally Cavity Diode Laser (fiber output)
Contact for pricing
Contact Sales
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
780nm Fixed Externally Cavity Diode Laser (fiber output) Precilasers is a 780nm diode laser, which emits continuous laser with narrow line width and linear polarization.
Features
- Narrow Linewidth Linear Polarization
- Continuous Laser
| Models | FECL-SF-X-BF (1) |
|---|---|
| Center Wavelength | 780.23nm |
| Threshold Current | 120mA |
| Maximum Current | 250mA |
| Working Current | 250mA |
| Output Power | mW |
| Temperature Frequency Tuning Range | 17.5GHz |
| Linewidth (2) (100us integration ) | 75kHz |
| Thermistor | 10kΩ |
| I-TEC Limits | 1500mA |
Source: Precilasers manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
No CAD drawings available for this product.
