Yi-Laser

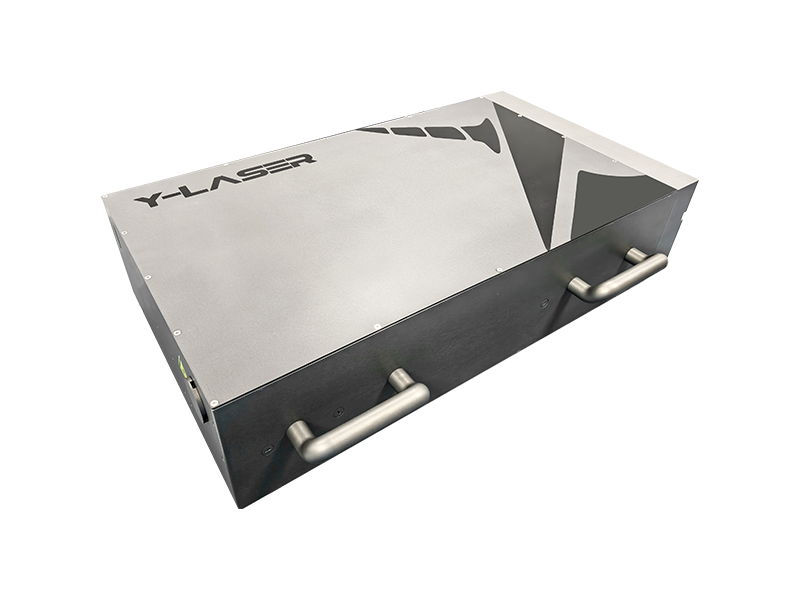

HELIOS-HE Femtosecond Laser - 10W
YL-HELIOS-HE-10WContact for pricing
In Stock
Key Specifications
Contact Sales
Wavelength
1030.0nm
Pulse Width
250.0fs
Avg Power
10.0W
Design Tools
Time-Bandwidth Product
Check if your pulse is transform-limited
Pulse Stretching & Compression
Calculate GVD, TOD, and pulse broadening
Watt \u2194 dBm Converter
Convert between optical power units
Wavelength \u2194 Wavenumber
Convert between wavelength, frequency, and energy
View all 49 calculators →
Complete Your Setup
RoHS
REACH
HELIOS-10W-HE and HELIOS-20W-HE series femtosecond lasers are designed for high-precision scientific and industrial applications. Offering high stability, broad tunability, and excellent temporal resolution, this series includes compact, high energy, and high power models to meet a wide range of needs.
It supports applications like ultrafast optics, laser processing, biomedical imaging, and three-photon microscopy. The HELIOS-10W-HE and HELIOS-20W-HE series features an efficient water-cooling system and modular design, ensuring stable performance in various environments. With strict quality control and testing, these lasers are built for long-term, continuous use, and the modular design allows for flexible configuration adjustments to suit specific needs.
Key Features
- Pulse energy up to 3mJ
- Pulse duration < 190fs
- Excellent beam quality M² < 1.2
- Long-term stability < 0.5% RMS
- 24/7 industrial operation capability
- Maximum output power
- Maximum single pulse energy
- Pulse duration
Applications
- Carrier-Envelope Phase Stabilization
- Cars And Srs Microscopy
| Maximum Output Power | 10W |
| Maximum Single Pulse Energy | 1mJ |
| Pulse Duration | <250fs（190fs Optional） |
| Pulse Width Adjustment Range | 250fs - 10ps（190fs Optional） |
| Repetition Frequency Range | 10kHz - 100kHz（10kHz-1MHz）Optional |
| Pulse Selection | Single shot - 100kHz(Single shot - 1MHz) Optional |
| Central Wavelength | 1036 ± 5nm |
| Polarization | Linear polarization |
| Beam Quality | M² <1.2 |
| Beam Diameter | 5 ± 1mm |
| Pulse Pointing Stability | < 20 µrad/℃ |
| Pre-pulse Contrast | <1:1000 |
| Post-pulse Contrast | <1:500 |
| Pulse Energy Stability | <1% RMS @8h |
| Long-term Power Stability | <0.5% RMS @24h |
| Dimensions (L×W×H) | 668 × 400 × 223mm |
| Weight | 61kg |
| Chiller | 220V / 0.6–7.7A / 1.26 kW (CWUP-20AI) |
HELIOS-HE Femtosecond Laser - 10W — Dimensional Drawing (click to enlarge)

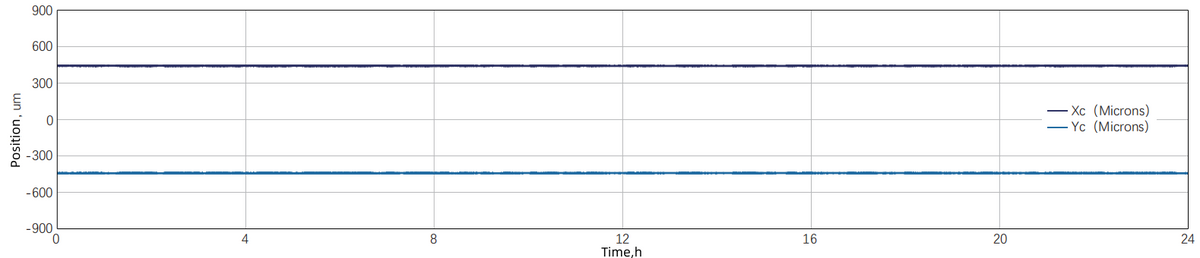

Pointing stability — Graph

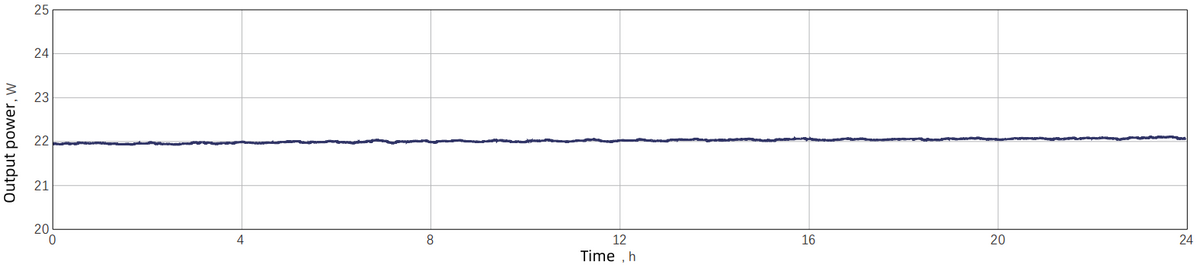

Power stability — Graph

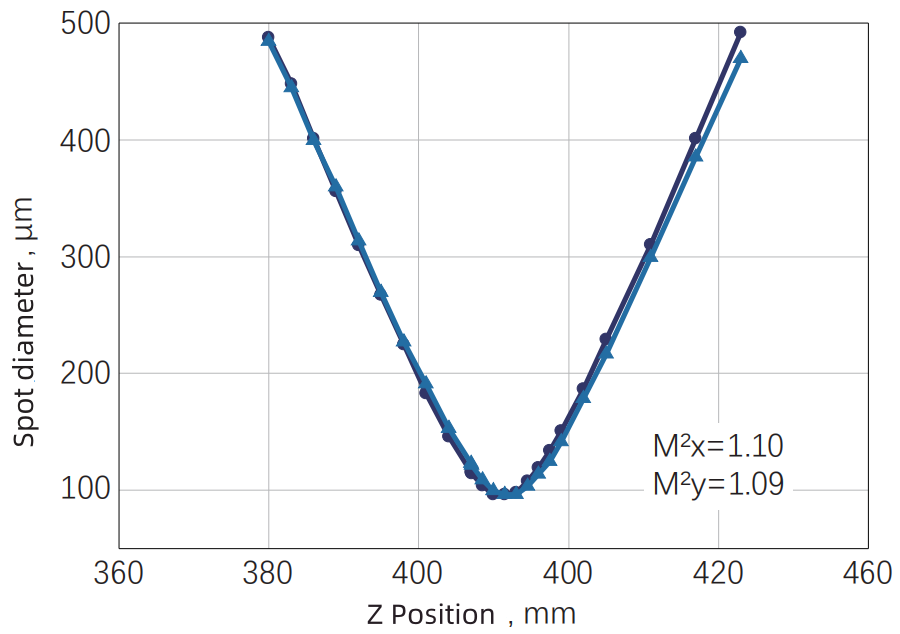

Typical M² measurement data — Graph

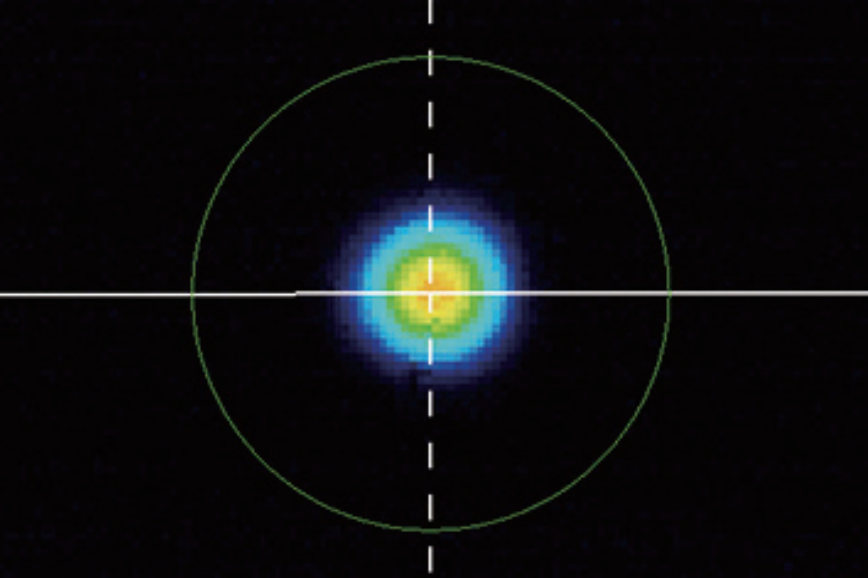

Typical far-field spot — Graph

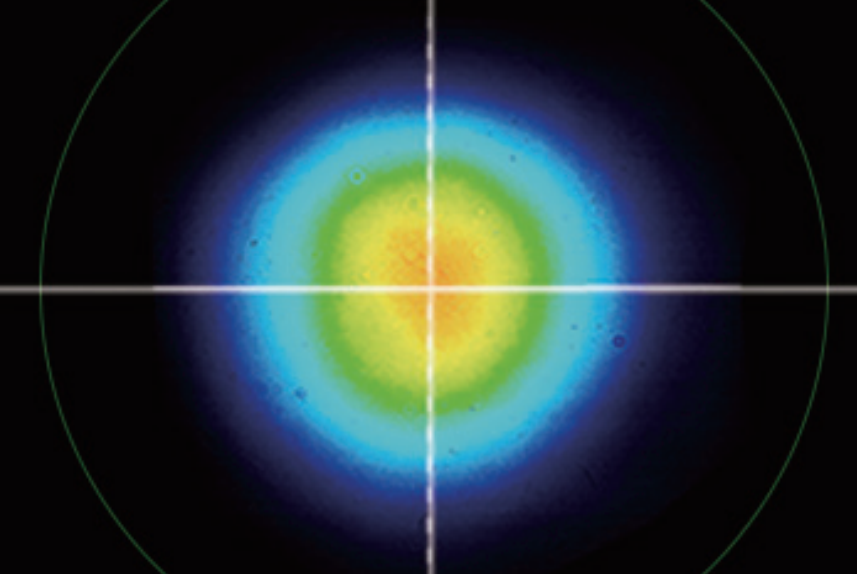

Typical near-field spot — Graph

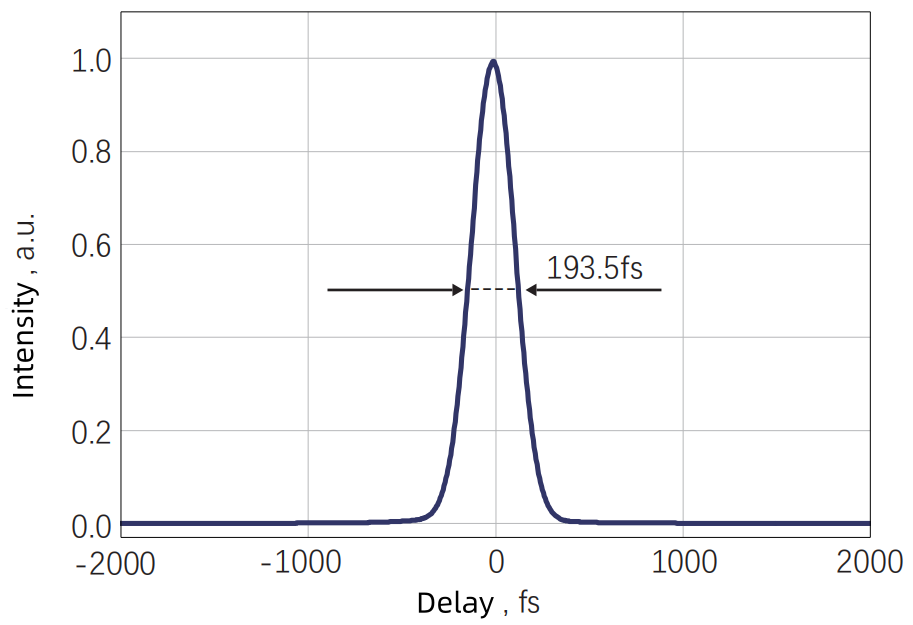

Typical pulse width — Graph

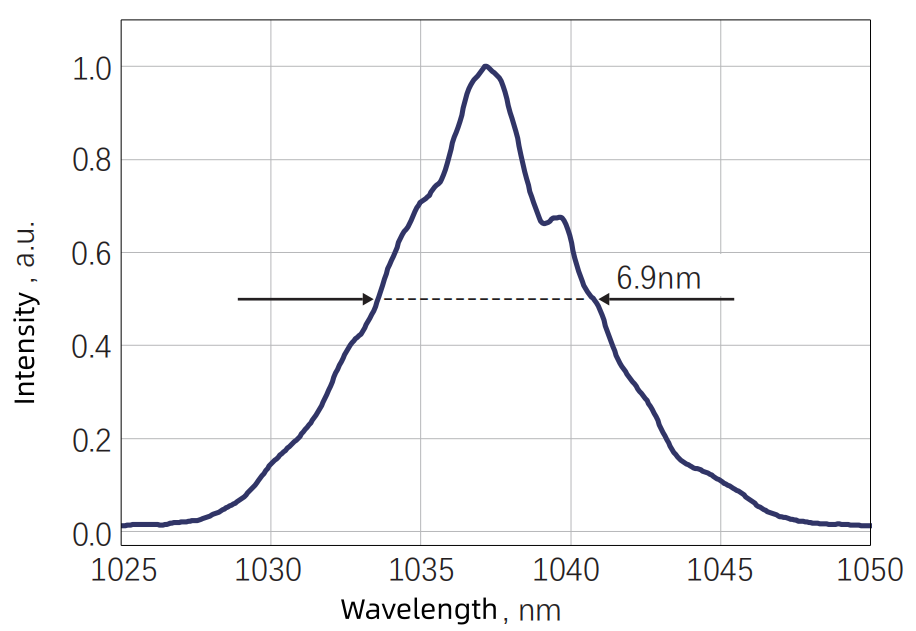

Typical spectrum — Graph
