Micro Dovetail Translation Stage CFF-25
CFF-25$63.21
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
The Micro Dovetail Translation Stage CFF-25 from WaveQuanta is a high-performance Stages Actuators designed for micrometer-precision optical alignment and positioning. Key specification: travel range: 13 mm. Available from stock for immediate shipment. Sourced directly from WaveQuanta, this product meets the high standards required for scientific research and precision photonics applications.
ā In Stock ā Ships Today

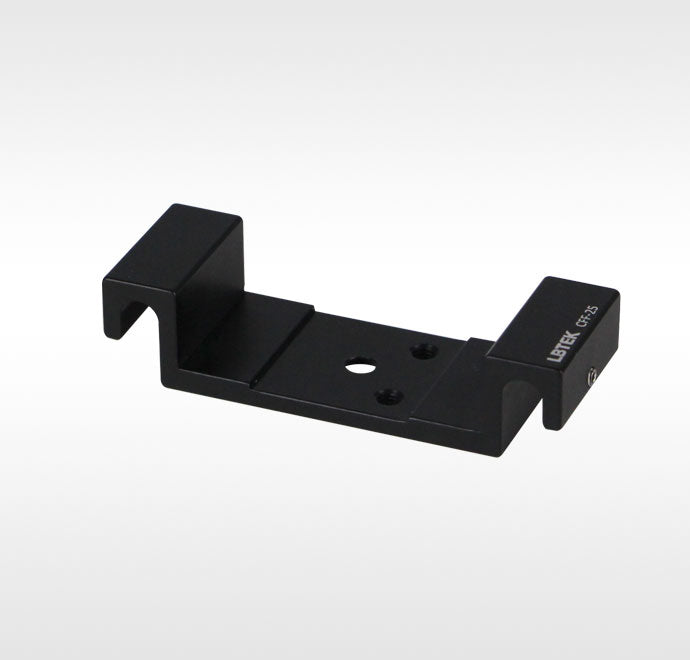

The 60 mm coaxial system adapter bracket from LBTEK enables the installation of micro dovetail translation stages into 60 mm coaxial optical systems. The miniature dovetail stage can be directly mounted via the central M4 countersunk hole or alternatively adapted using the RAF-25 rotary adapter (mounted via M4 tapped holes). Within the coaxial system, the position can be adjusted by sliding along the post, with final fixation achieved by tightening the two M3 set screws on the side using a 1.5 mm hex key.
Key Features
- It mounts the micro dovetail translation stage onto a 60 mm coaxial system;
- Center with M4 countersunk hole and tapped hole;
- It is mounted on the side by M3 screws;
Application
The top plate connects the microĀ dovetail translation stage with the rotaryĀ mount and is installed in the 60 mm coaxial system via a coaxial adapter bracket.
Ā
| Travel Range | 13 mm |
| Lead Time | In Stock |
No CAD drawings available for this product.
Product Family: Micro Dovetail Translation Stage (10 variants)
