Micro Dovetail Translation Stage RAF-25
RAF-25$106.32
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
The Micro Dovetail Translation Stage RAF-25 from WaveQuanta is a high-performance Stages Actuators designed for micrometer-precision optical alignment and positioning. Key specification: travel range: 13 mm. Available from stock for immediate shipment. Sourced directly from WaveQuanta, this product meets the high standards required for scientific research and precision photonics applications.
✔ In Stock — Ships Today

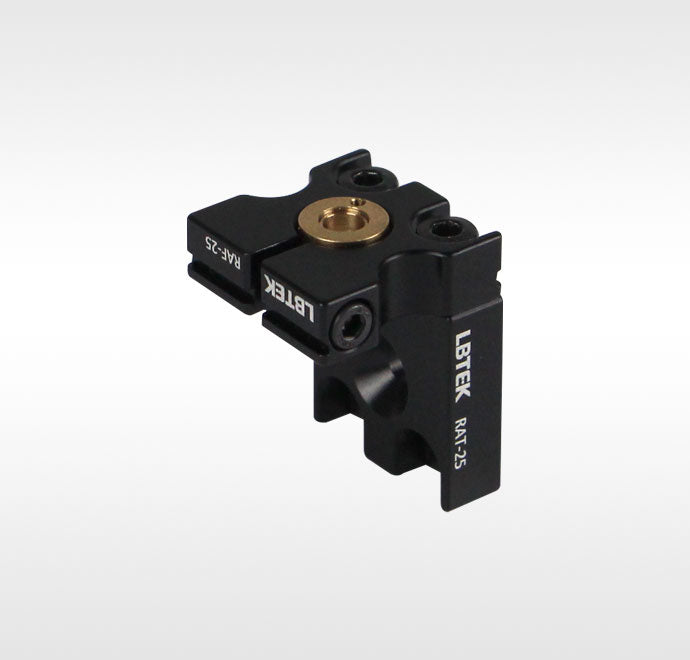

The rotary adapter bracket from LBTEK features 360° adjustable rotation on one side with a flexible locking mechanism, which can be secured by tightening the M3 socket head cap screw (using a 2.5 mm hex key) on the side. The other side integrates a right angle adapter bracket(RAT-25 bracket), allowing installation to existing single-axis, dual-axis, or three-axis configurations via M4 screws. This mount can connect to micro dovetail translation stages or other optomechanical components with M4 tapped holes, such as vertically mounting two micro dovetail stages or using the FTF-25 base adapter to fix stages perpendicularly on optical tables /breadboards. By removing the right angle adapter bracket, it can also be paired with the CFF-25 coaxial adapter for integration into 60 mm coaxial systems.
Key Features
- It mounts two LS25-13C1 translation stages vertically;
- One side can rotate 360º;
- Flexible locking structure;
Application
Rotary adapter bracket for connecting and installing XY two-axis micro dovetail translation stage and single-axis micro dovetail translation stage.
| Travel Range | 13 mm |
| Lead Time | In Stock |
No CAD drawings available for this product.
Product Family: Micro Dovetail Translation Stage (10 variants)
