Micro Dovetail Translation Stage LS25-13C1XYZM
LS25-13C1XYZM$600.31
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
The Micro Dovetail Translation Stage LS25-13C1XYZM from WaveQuanta is a high-performance Stages Actuators designed for micrometer-precision optical alignment and positioning. Key specification: travel range: 13 mm. Available from stock for immediate shipment. Sourced directly from WaveQuanta, this product meets the high standards required for scientific research and precision photonics applications.
ā In Stock ā Ships Today

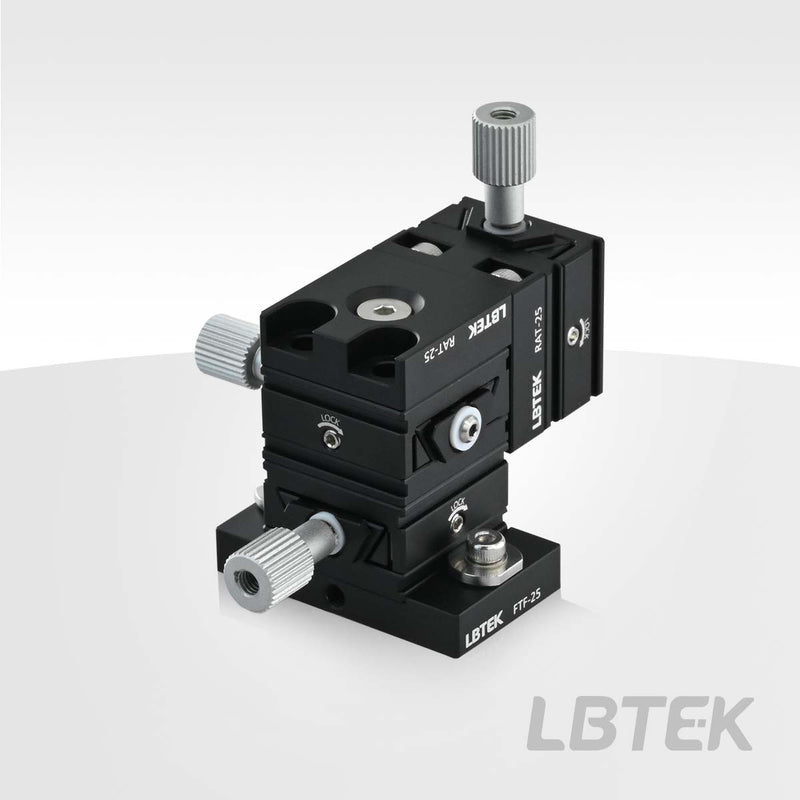

The XYZ three-axis micro dovetail translation stage from LBTEK integrates three single-axis stages with right-angle adapters to achieve XYZ three-axis configuration, meeting multi-axis positioning requirements. It provides smooth linear motion along each axis's full 13 mm travel range, utilizing M3Ć0.35 precision micrometer drives. The stage incorporates side-locking screws (1.5 mm hex key compatible) to prevent unintended movement, while the central M4 tapped hole on the stage offers versatile mounting options. The base adapter allows secure installation on breadboards or optical tables with quick-release functionality. Ā
Key Features
- XYZ three-axis drive;
- Stage size 25 mm Ć 25 mm;
- Travel 13 mm;
- Adapter can be locked;
Application
The right angle adapter plate can be manually replaced with the RAF-25 rotary adjustment frame to achieve rotational adjustment.
| Travel Range | 13 mm |
| Lead Time | In Stock |
No CAD drawings available for this product.
Product Family: Micro Dovetail Translation Stage (10 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Micro Dovetail Translation Stage FTF-25 |
FTF-25
| — | — | — | View |
| Micro Dovetail Translation Stage CFF-25 |
CFF-25
| — | — | — | View |
| Micro Dovetail Translation Stage RAT-25 |
RAT-25
| — | — | — | View |
| Micro Dovetail Translation Stage RAF-25 |
RAF-25
| — | — | — | View |
| Micro Dovetail Translation Stage TP-25 |
TP-25
| — | — | — | View |
| Micro Dovetail Translation Stage LS25-13C1XYZM Current |
LS25-13C1XYZM
| — | — | — | |
| Micro Dovetail Translation Stage LS25-13C1XZM |
LS25-13C1XZM
| — | — | — | View |
| Micro Dovetail Translation Stage LS25-13C1XYM |
LS25-13C1XYM
| — | — | — | View |
| Manual Rotary Translation Stage RP-3B |
RP-3B
| — | — | — | View |
| Micro Dovetail Translation Stage LS25-13C1 |
LS25-13C1
| — | — | — | View |
