Micro Dovetail Translation Stage LS25-13C1XYM
✔ In Stock — Ships Today

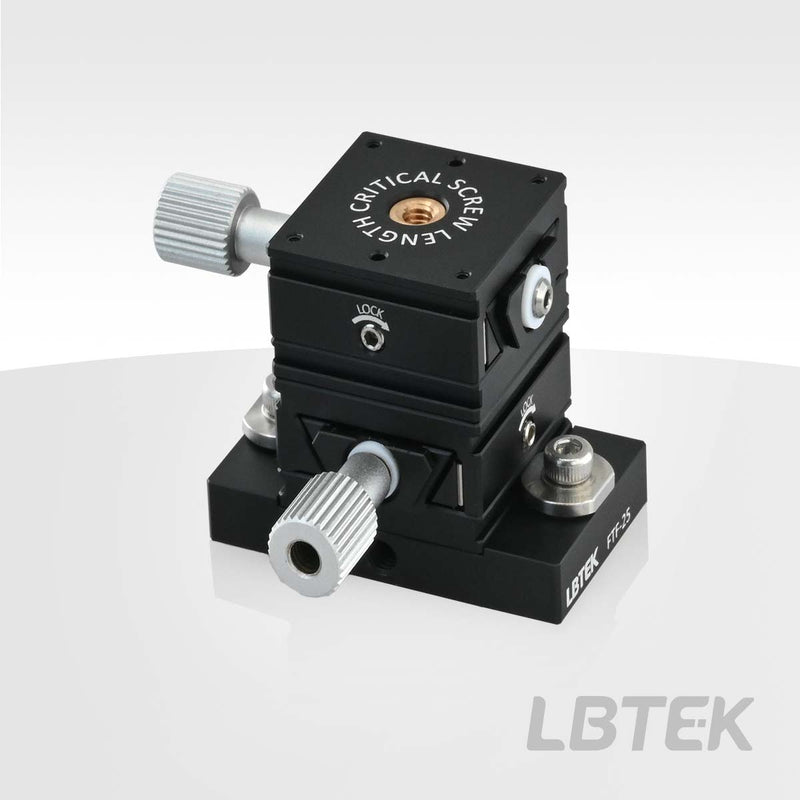

The dual-axis micro dovetail translation stage from LBTEK combines two single-axis stages to create an XY two-axis system, providing smooth linear positioning across the full 13 mm travel range of each axis with M3×0.35 precision adjustment screws. The stage features locking screws on the sides (requiring a 1.5 mm hex key) to secure positions and prevent unintended movement, while the central M4 tapped hole on the stage offers multiple mounting options. The base adapter allows quick installation and removal from breadboards or optical tables.
Key Features
- XY dual-axis drive;
- Stage size 25 mm × 25 mm;
- Travel 13 mm;
- Adapter can be locked;
Application
The XY two-axis miniature dovetail translation stage is mounted on the dovetail guide rail DR50-150 and the guide rail base DR50F-25.
| Material | 6061-T6 aluminum alloy |
| Number of axes | Dual-axis |
| Adjustment accuracy | 0.35 mm/rev |
| Applicable diameter | 1 kg |
| Stage Travel | 35.6 mm |
| Drive position | End direct drive |
| Surface Treatment | Black anodized |
| XY-axis travel | X-axis travel 13 mm, Y-axis travel 13 mm |
| Load Capacity | 0.2 kg |
| Tabletop size | 25 mm×25 mm |
| Tabletop threaded hole specifications | M4 |
| Bottom mounting threaded hole specification/quantity | M6/1 piece |
| Dimensions | 52 mm×45.5 mm×35.6 mm |
| Weight | 0.075 kg |
| Hex Key Wrenches Included | 1.5 mm key quantity 1, countersunk socket screw M6x12 quantity 1 |
No CAD drawings available for this product.
