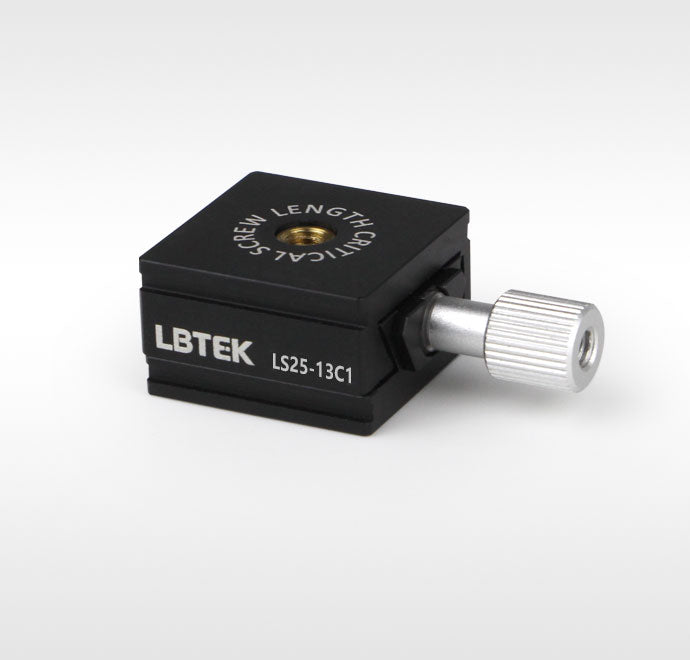

Micro Dovetail Translation Stage LS25-13C1
LS25-13C1$163.17
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
The Micro Dovetail Translation Stage LS25-13C1 from WaveQuanta is a high-performance Stages Actuators designed for micrometer-precision optical alignment and positioning. Key specification: travel range: 13 mm. Available from stock for immediate shipment. Sourced directly from WaveQuanta, this product meets the high standards required for scientific research and precision photonics applications.
✔ In Stock — Ships Today
The micro dovetail translation stage from LBTEK features a 25 mm×25 mm stage size with 13 mm maximum travel, utilizing M3×0.35 precision adjustment screws. The stage incorporates locking screws on the side (requiring 1.5 mm hex keys) to prevent unintended movement, while M4 tapped holes on both top and bottom surfaces provide versatile mounting options, with a maximum thread engagement depth of 3.5 mm for all tapped holes.
Key Features
- Single axis;
- Stage size 25 mm × 25 mm;
- Travel 13 mm;
- Adapter can be locked;
Application
Using M4 studs for translation stage assembly and optomechanical component expansion.
| Travel Range | 13 mm |
| Lead Time | In Stock |
