Micro Dovetail Translation Stage TP-25
TP-25$44.79
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
The Micro Dovetail Translation Stage TP-25 from WaveQuanta is a high-performance Stages Actuators designed for micrometer-precision optical alignment and positioning. Key specification: travel range: 13 mm. Available from stock for immediate shipment. Sourced directly from WaveQuanta, this product meets the high standards required for scientific research and precision photonics applications.
✔ In Stock — Ships Today

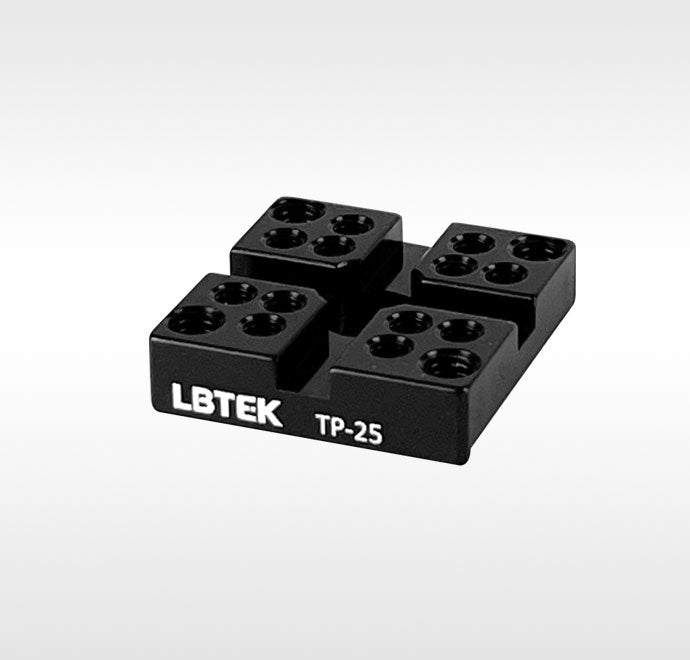

The micro dovetail translation stage top plate from LBTEK features an M4 countersunk mounting hole at the center of the top plate for installing micro dovetail stages. A reference edge extending along the bottom edge of the base plate prevents unwanted rotation when connected to the stage. The top plate surface includes two 4 mm wide keyways, with orthogonal keyway alignment for convenient assembly integration, along with twelve M3 and four M4 tapped mounting holes for securing various components.
Key Features
- Two 4 mm wide central keyways for component positioning;
- Positioning edge prevents misalignment during mounting plate installation;
- M3 and M4 tapped mounting holes for increased installation options;
Application
The top plate connects the micro dovetail translation stage with the rotary mount and is installed in the 60 mm coaxial system via a coaxial adapter bracket.
| Material | 6061-T6 aluminum alloy |
| Surface Treatment | Black anodized |
| Tabletop size | 26 mm×25 mm |
| Thickness | M4 |
| Material | 12 M3, 4 M4 |
| Dimensions | 26 mm×25 mm×8 mm |
No documents available for this product.
No CAD drawings available for this product.
Product Family: Micro Dovetail Translation Stage (10 variants)
