Micro Dovetail Translation Stage LS25-13C1XZM
LS25-13C1XZM$450.09
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
The Micro Dovetail Translation Stage LS25-13C1XZM from WaveQuanta is a high-performance Stages Actuators designed for micrometer-precision optical alignment and positioning. Key specification: travel range: 13 mm. Available from stock for immediate shipment. Sourced directly from WaveQuanta, this product meets the high standards required for scientific research and precision photonics applications.
ā In Stock ā Ships Today

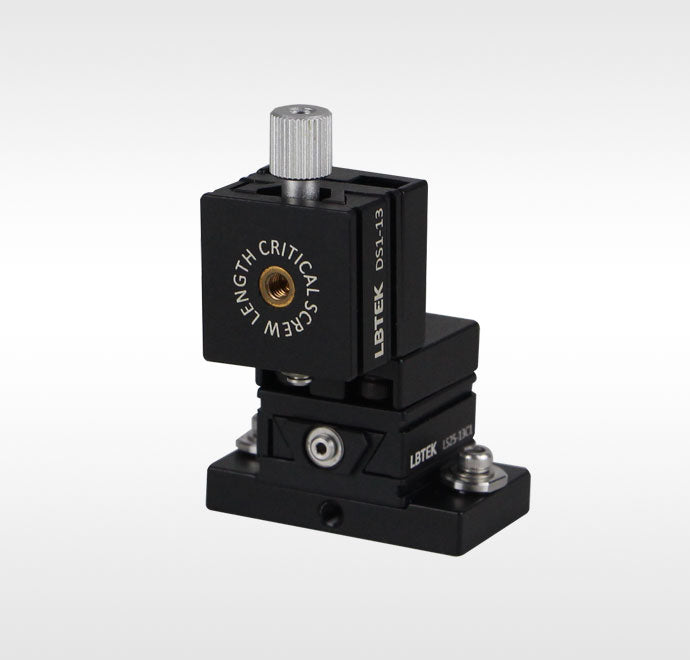

The dual-axis micro dovetail translation stage from LBTEK combines two single-axis stages with a right angle adapter bracket to create an XZ two-axis configuration, providing smooth linear positioning across the full 13 mm travel range of each axis through M3Ć0.35 precision adjustment screws. The stage features locking screws on the sides (requiring a 1.5 mm hex key) to secure positions and prevent unintended movement, while the central M4 tapped hole on the stage offers multiple mounting options. The base adapter allows quick installation and removal from breadboards or optical tables.
Key Features
- XZ dual-axis drive;
- Stage size 25 mm Ć 25 mm;
- Travel 13 mm;
- Adapter can be locked;
Application
The XZ two-axis micro dovetail translation stage is mounted on the dovetail rail DR50-150 and the rail base DR50F-25.
| Material | 6061-T6 aluminum alloy |
| Surface Treatment | Black anodized |
| Bottom mounting threaded hole specification/quantity | M6/1 piece |
| Tabletop size | 25 mmĆ25 mm |
| Number of axes | Dual-axis |
| Drive position | End direct drive |
| Stage Travel | 55 mm |
| Load Capacity | 0.2 kg |
| Tabletop threaded hole specifications | M4 |
| Attribute 2297 | X-axis travel 13 mm, Z-axis travel 13 mm |
| Adjustment accuracy | 0.35 mm/rev |
| Dimensions | 43 mmĆ57.8 mmĆ72.3 mm |
| Weight | 0.1 kg |
| Hex Key Wrenches Included | 1.5 mm key quantity 1, countersunk socket screw M6x12 quantity 1 |
No CAD drawings available for this product.
