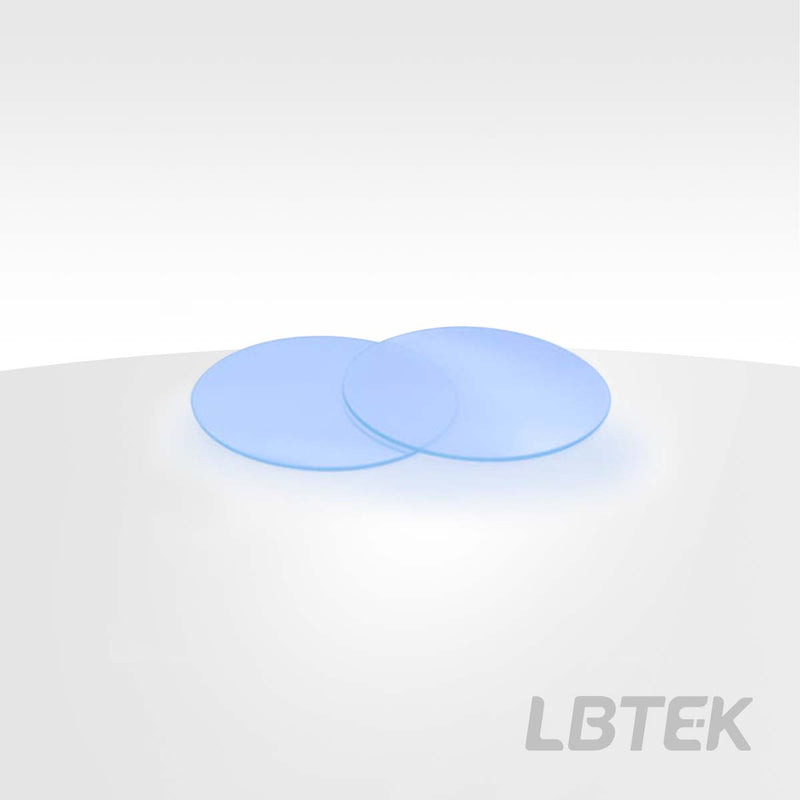

Non-Polarizing Plate Beamsplitters, UV Fused Silica, Circular BS2119-C

BS2119-C
$159.36
In Stock
Key Specifications
Wavelength 1100.0nm
Diameter 25.4mm
Reflectance 1.0%
Request Quote

Design Tools

Wavelength \u2194 Wavenumber Convert between wavelength, frequency, and energy
View all 49 calculators →
RoHS REACH

Non-Polarizing Plate Beamsplitters, UV Fused Silica, Circular — Model BS2119-C

Operating wavelength 1100 nm-1650 nm, Ø25.4 mm, substrate UV Fused Silica.

Product Description

  • Optical material: UV Fused Silica
  • Operating wavelength: 400 nm-700 nm, 700 nm-1100 nm, 1100 nm-1650 nm
  • Applications: beam splitting, beam combining

LBTEK's Non-Polarizing Plate Beamplitters are coated with a dielectric beamsplittier coating on one side and an anti-reflection coating on the other. When a light beam is incident on the beamsplitter coating surface at an angle of 45°, different splitting ratios can be achieved. Currently, five splitting ratios are available: 10:90, 30:70, 50:50, 70:30, and 90:10. The anti-reflection coating options include 400 nm-700 nm, 700 nm-1100 nm, and 1100 nm-1650 nm. The backside is coated with an anti-reflection coating to reduce reflections (ghost images). For applications sensitive to such phenomena, please consider using non-polarizing beamsplitter cubes. LBTEK also offers customization services for plate beamsplitters with other materials, sizes, and coating systems. If needed, please contact the technical support.

Non-Polarizing Plate Beamsplitters, UV Fused Silica, Circular

  • Optical material: UV fused silica
  • Applications: Beam splitting, Beam combining
  • Diameter: 25.4 mm; Thickness: 5.0 mm

The LBTEK Circular Non-Polarizing Plate Beamsplitter has a diameter of 25.4 mm and a thickness of 5 mm, with one side coated with a dielectric beamsplitter coating and the other side coated with an anti-reflection coating. When the light beam is incident on the beamsplitting surface at an agle of 45°, different splitting ratios can be obtained. The arrow on the side of the product points to the surface coated with the beamsplitter coating, while the back side is coated with an anti-reflection coating to reduce back reflection (ghost images). For applications sensitive to ghosting, please consider using a non-polarizing beamsplitter cube. The splitting ratio accuracy is sensitive to the polarization state of the incident light. Please refer to the pages of performance curves for details.

Clear Aperture90% CA
Operating Wavelength1100 nm-1650 nm
Thickness5.0 mm
Diameter25.4 mm
Specification Sheet PDF — Download
CAD Drawing Download
3D Model (STL) STL — Download
product
WaveQuanta

Economical Plate Beamsplitters, Circular BS6737

BS6737
λ 450.0nm
$47.05
Request Quote

Product Family: Non-Polarizing Plate Beamplitters (37 variants)

Product ▴▾ SKU Size ▴▾ Clear Aperture ▴▾ Operating Wavelength ▴▾
Non-Polarizing Plate Beamsplitters, UV Fused Silica, Rectangular 36.0 mm×25.0 mm×1.0 mm BSF21091-780-SP BSF21091-780-SP 90% CA 90% CA 780 nm View
Non-Polarizing Plate Beamsplitters, UV Fused Silica, Rectangular 36.0 mm×25.0 mm×1.0 mm BS2R55-B BS2R55-B 90% CA 90% CA 700 nm-1100 nm View
Non-Polarizing Plate Beamsplitters, UV Fused Silica, Rectangular 36.0 mm×25.0 mm×1.0 mm BS2R55-A BS2R55-A 90% CA 90% CA 400 nm-700 nm View
Non-Polarizing Plate Beamsplitters, UV Fused Silica, Rectangular 36.0 mm×25.0 mm×1.0 mm BS2R19-A BS2R19-A 90% CA 90% CA 400 nm-700 nm View
Non-Polarizing Plate Beamsplitters, UV Fused Silica, Rectangular 36.0 mm×25.0 mm×1.0 mm BS2R37-A BS2R37-A 90% CA 90% CA 400 nm-700 nm View
Non-Polarizing Plate Beamsplitters, UV Fused Silica, Rectangular 36.0 mm×25.0 mm×1.0 mm BS2R73-A BS2R73-A 90% CA 90% CA 400 nm-700 nm View
Non-Polarizing Plate Beamsplitters, UV Fused Silica, Rectangular 36.0 mm×25.0 mm×1.0 mm BS2R91-A BS2R91-A 90% CA 90% CA 400 nm-700 nm View
Non-Polarizing Plate Beamsplitters, UV Fused Silica, Rectangular 36.0 mm×25.0 mm×1.0 mm BS2R19-B BS2R19-B 90% CA 90% CA 700 nm-1100 nm View
Non-Polarizing Plate Beamsplitters, UV Fused Silica, Rectangular 36.0 mm×25.0 mm×1.0 mm BS2R37-B BS2R37-B 90% CA 90% CA 700 nm-1100 nm View
Non-Polarizing Plate Beamsplitters, UV Fused Silica, Rectangular 36.0 mm×25.0 mm×1.0 mm BS2R73-B BS2R73-B 90% CA 90% CA 700 nm-1100 nm View
Non-Polarizing Plate Beamsplitters, UV Fused Silica, Rectangular 36.0 mm×25.0 mm×1.0 mm BS2R91-B BS2R91-B 90% CA 90% CA 700 nm-1100 nm View
Non-Polarizing Plate Beamsplitters, UV Fused Silica, Rectangular 36.0 mm×25.0 mm×1.0 mm BS2R55-C BS2R55-C 90% CA 90% CA 1100 nm-1650 nm View
Non-Polarizing Plate Beamsplitters, UV Fused Silica, Rectangular 36.0 mm×25.0 mm×1.0 mm BS2R19-C BS2R19-C 90% CA 90% CA 1100 nm-1650 nm View
Non-Polarizing Plate Beamsplitters, UV Fused Silica, Rectangular 36.0 mm×25.0 mm×1.0 mm BS2R37-C BS2R37-C 90% CA 90% CA 1100 nm-1650 nm View
Non-Polarizing Plate Beamsplitters, UV Fused Silica, Rectangular 36.0 mm×25.0 mm×1.0 mm BS2R73-C BS2R73-C 90% CA 90% CA 1100 nm-1650 nm View
Non-Polarizing Plate Beamsplitters, UV Fused Silica, Rectangular 36.0 mm×25.0 mm×1.0 mm BS2R91-C BS2R91-C 90% CA 90% CA 1100 nm-1650 nm View
Non-Polarizing Plate Beamsplitters, UV Fused Silica, Rectangular 36.0 mm×25.0 mm×1.0 mm BSF21011-780-SP BSF21011-780-SP 90% CA 90% CA 780 nm View
Non-Polarizing Plate Beamsplitters, UV Fused Silica, Rectangular 36.0 mm×25.0 mm×1.0 mm BSF210191-780-SP BSF210191-780-SP 90% CA 90% CA 780 nm View
Non-Polarizing Plate Beamsplitters, UV Fused Silica, Rectangular 36.0 mm×25.0 mm×1.0 mm BSF21021-780-SP BSF21021-780-SP 90% CA 90% CA 780 nm View
Non-Polarizing Plate Beamsplitters, UV Fused Silica, Circular BS2255-1064-SP BS2255-1064-SP 30 mm >90% CA 700 nm-1100 nm View
Non-Polarizing Plate Beamsplitters, UV Fused Silica, Circular BS2155-B BS2155-B 25.4 mm 90% CA 700 nm-1100 nm View
Non-Polarizing Plate Beamsplitters, UV Fused Silica, Circular BS2119-B BS2119-B 25.4 mm 90% CA 700 nm-1100 nm View
Non-Polarizing Plate Beamsplitters, UV Fused Silica, Circular BS2191-B BS2191-B 25.4 mm 90% CA 700 nm-1100 nm View
Non-Polarizing Plate Beamsplitters, UV Fused Silica, Circular BS2137-B BS2137-B 25.4 mm 90% CA 700 nm-1100 nm View
Non-Polarizing Plate Beamsplitters, UV Fused Silica, Circular BS2173-B BS2173-B 25.4 mm 90% CA 700 nm-1100 nm View
Non-Polarizing Plate Beamsplitters, UV Fused Silica, Circular BS2155-A BS2155-A 25.4 mm 90% CA 400 nm-700 nm View
Non-Polarizing Plate Beamsplitters, UV Fused Silica, Circular BS2119-A BS2119-A 25.4 mm 90% CA 400 nm-700 nm View
Non-Polarizing Plate Beamsplitters, UV Fused Silica, Circular BS2137-A BS2137-A 25.4 mm 90% CA 400 nm-700 nm View
Non-Polarizing Plate Beamsplitters, UV Fused Silica, Circular BS2173-A BS2173-A 25.4 mm 90% CA 400 nm-700 nm View
Non-Polarizing Plate Beamsplitters, UV Fused Silica, Circular BS2191-A BS2191-A 25.4 mm 90% CA 400 nm-700 nm View
Non-Polarizing Plate Beamsplitters, UV Fused Silica, Circular BS2155-C BS2155-C 25.4 mm 90% CA 1100 nm-1650 nm View
Non-Polarizing Plate Beamsplitters, UV Fused Silica, Circular BS2119-C Current BS2119-C 25.4 mm 90% CA 1100 nm-1650 nm
Non-Polarizing Plate Beamsplitters, UV Fused Silica, Circular BS2137-C BS2137-C 25.4 mm 90% CA 1100 nm-1650 nm View
Non-Polarizing Plate Beamsplitters, UV Fused Silica, Circular BS2173-C BS2173-C 25.4 mm 90% CA 1100 nm-1650 nm View
Non-Polarizing Plate Beamsplitters, UV Fused Silica, Circular BS2191-C BS2191-C 25.4 mm 90% CA 1100 nm-1650 nm View
Non-Polarizing Plate Beamsplitters, UV Fused Silica, Circular BS2055-B BS2055-B 12.7 mm 90% CA 700 nm-1100 nm View
Non-Polarizing Plate Beamsplitters, UV Fused Silica, Circular BS2073-633-SP BS2073-633-SP 12.7 mm >90% CA 633 nm View
