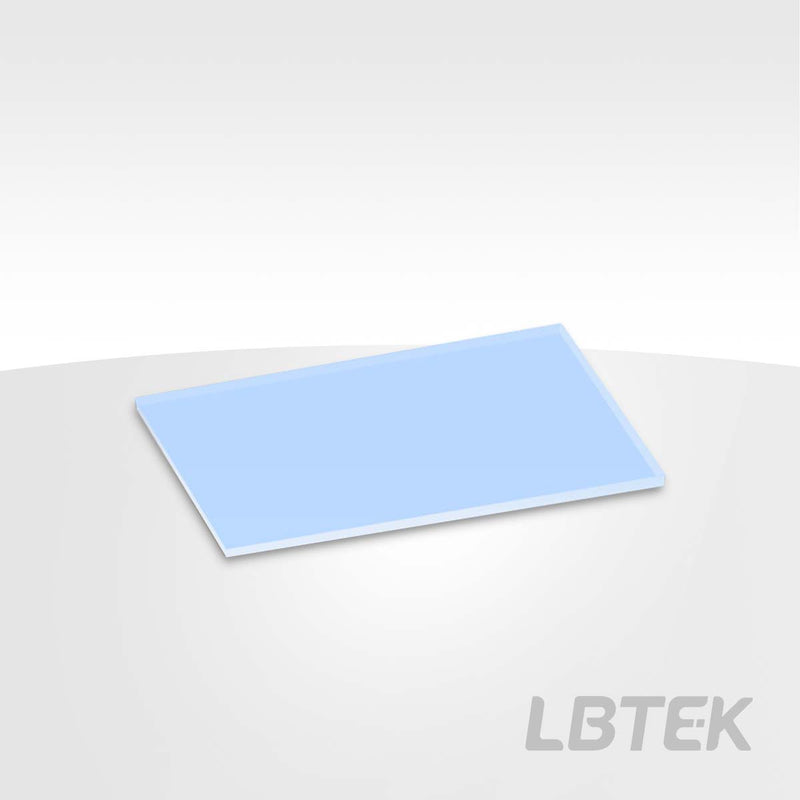

Non-Polarizing Plate Beamsplitters, UV Fused Silica, Rectangular 36.0 mm×25.0 mm×1.0 mm BS2R91-B

BS2R91-B
$162.70
In Stock
Key Specifications
Wavelength 700.0nm
LIDT 0.46J/cm²
Reflectance 1.0%
Request Quote

Design Tools

LIDT Calculator Verify damage threshold for your laser parameters Wavelength \u2194 Wavenumber Convert between wavelength, frequency, and energy
View all 49 calculators →
RoHS REACH

Non-Polarizing Plate Beamsplitters, UV Fused Silica, Rectangular 36.0 mm×25.0 mm×1.0 mm — Model BS2R91-B

Operating wavelength 700 nm-1100 nm, substrate UV Fused Silica.

Product Description

  • Optical material: UV Fused Silica
  • Operating wavelength: 400 nm-700 nm, 700 nm-1100 nm, 1100 nm-1650 nm
  • Applications: beam splitting, beam combining

LBTEK's Non-Polarizing Plate Beamplitters are coated with a dielectric beamsplittier coating on one side and an anti-reflection coating on the other. When a light beam is incident on the beamsplitter coating surface at an angle of 45°, different splitting ratios can be achieved. Currently, five splitting ratios are available: 10:90, 30:70, 50:50, 70:30, and 90:10. The anti-reflection coating options include 400 nm-700 nm, 700 nm-1100 nm, and 1100 nm-1650 nm. The backside is coated with an anti-reflection coating to reduce reflections (ghost images). For applications sensitive to such phenomena, please consider using non-polarizing beamsplitter cubes. LBTEK also offers customization services for plate beamsplitters with other materials, sizes, and coating systems. If needed, please contact the technical support.

Non-Polarizing Plate Beamsplitters, UV Fused Silica, Rectangular 36.0 mm×25.0 mm×1.0 mm

  • Optical material: UV fused silica
  • Dimensions: 36.0 mm×25.0 mm×1.0 mm
  • Applications: beam splitting, beam combining

The LBTEK Rectangular Non-Polarizing Plate Beamsplitter measures 36.0 mm × 25.0 mm × 1.0 mm, with one side coated with a dielectric beamsplitter coating and the other side coated with an anti-reflection coating. When the light beam is incident on the beamsplitting surface at an agle of 45°, different splitting ratios can be obtained. The back side is coated with an anti-reflection coating to reduce back reflections (ghost images). For applications sensitive to ghosting, please consider using a non-polarizing beamsplitter cube. The splitting ratio accuracy is sensitive to the polarization state of the incident light. Please refer to the pages of performance curves for details.

Material UV Fused Silica
Size 36.0 mm×25.0 mm×1.0 mm
Dimensional tolerance ±0.20 mm
Clear Aperture 90% CA
Thickness Tolerance ±0.05 mm
Operating Wavelength 700 nm-1100 nm
Coating Anti-Reflection (AR) Coating，Beam Splitter Coating
AR Coating Reflectance Ravg<1%（45°AOI）
Beam Splitter Performance Tabs = 10 ± 8%, Rabs = 90 ± 8%, Tabs + Rabs > 99%, |Ts - Tp| < 35%, |Rs - Rp| < 35% (45°AOI)
Splitting Ratio 90:10 (R:T)
Surface Quality (Scratch/Dig) 40/20
Transmitted Wavefront Error (TWE) (@633 nm) λ/2
Damage Threshold 0.46J/cm2@780nm，120fs，100Hz，Ø13.32μm (100 Pulses)
Specification Sheet PDF — Download
CAD Drawing Download
3D Model (STL) STL — Download
Curve - 3366
Curve - 3366
Curve - 50/50 Split
Curve - 50/50 Split
