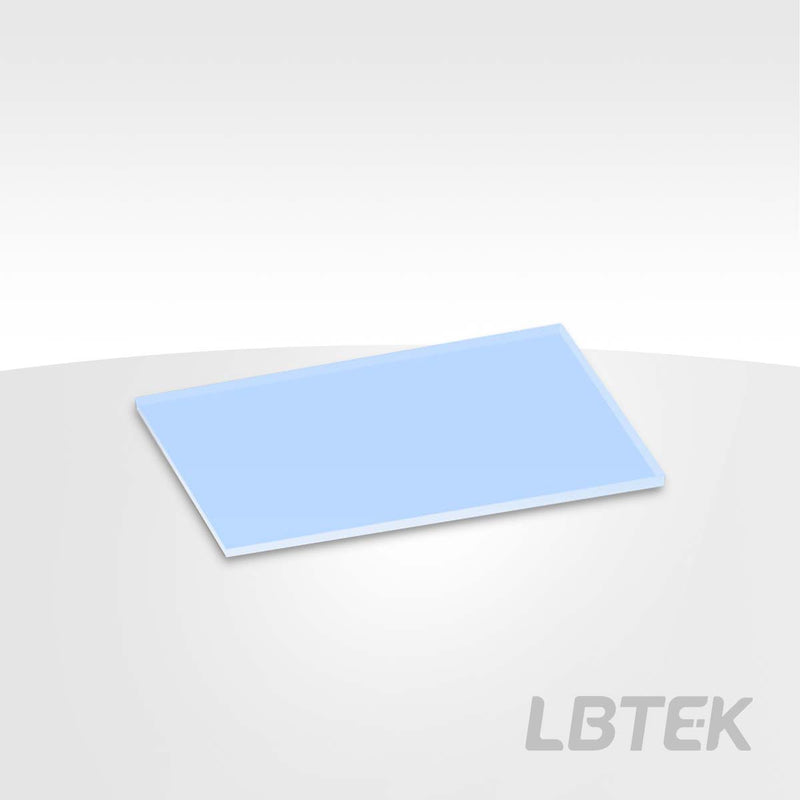

Non-Polarizing Plate Beamsplitters, UV Fused Silica, Rectangular 36.0 mm×25.0 mm×1.0 mm BSF21011-780-SP

BSF21011-780-SP
$120.86
In Stock
Key Specifications
Wavelength 780.0nm
LIDT 0.46J/cm²
Reflectance 1.0%
Request Quote

Design Tools

LIDT Calculator Verify damage threshold for your laser parameters Wavelength \u2194 Wavenumber Convert between wavelength, frequency, and energy
View all 49 calculators →
RoHS REACH

Non-Polarizing Plate Beamsplitters, UV Fused Silica, Rectangular 36.0 mm×25.0 mm×1.0 mm — Model BSF21011-780-SP

Operating wavelength 780 nm, substrate UV Fused Silica.

Product Description

  • Optical material: UV Fused Silica
  • Operating wavelength: 400 nm-700 nm, 700 nm-1100 nm, 1100 nm-1650 nm
  • Applications: beam splitting, beam combining

LBTEK's Non-Polarizing Plate Beamplitters are coated with a dielectric beamsplittier coating on one side and an anti-reflection coating on the other. When a light beam is incident on the beamsplitter coating surface at an angle of 45°, different splitting ratios can be achieved. Currently, five splitting ratios are available: 10:90, 30:70, 50:50, 70:30, and 90:10. The anti-reflection coating options include 400 nm-700 nm, 700 nm-1100 nm, and 1100 nm-1650 nm. The backside is coated with an anti-reflection coating to reduce reflections (ghost images). For applications sensitive to such phenomena, please consider using non-polarizing beamsplitter cubes. LBTEK also offers customization services for plate beamsplitters with other materials, sizes, and coating systems. If needed, please contact the technical support.

Non-Polarizing Plate Beamsplitters, UV Fused Silica, Rectangular 36.0 mm×25.0 mm×1.0 mm

  • Optical material: UV fused silica
  • Dimensions: 36.0 mm×25.0 mm×1.0 mm
  • Applications: beam splitting, beam combining

The LBTEK Rectangular Non-Polarizing Plate Beamsplitter measures 36.0 mm × 25.0 mm × 1.0 mm, with one side coated with a dielectric beamsplitter coating and the other side coated with an anti-reflection coating. When the light beam is incident on the beamsplitting surface at an agle of 45°, different splitting ratios can be obtained. The back side is coated with an anti-reflection coating to reduce back reflections (ghost images). For applications sensitive to ghosting, please consider using a non-polarizing beamsplitter cube. The splitting ratio accuracy is sensitive to the polarization state of the incident light. Please refer to the pages of performance curves for details.

Clear Aperture90% CA
Damage Threshold0.46J/cm2@780nm, 120fs, 100Hz, Ø13.32μm (100 Pulses)
Thickness Tolerance±0.1 mm
Clear Aperture90% CA
Operating Wavelength780 nm
Substrate Material10.0 mm×10.0 mm×1.5 mm
Damage Threshold0.46J/cm2@780nm, 120fs, 100Hz, Ø13.32μm (100 Pulses)
Low damage threshold detected (0.46 J/cm²). For high-power applications, consider WaveQuanta premium IBS-coated optics with enhanced damage resistance.
Specification Sheet PDF — Download
CAD Drawing Download
3D Model (STL) STL — Download

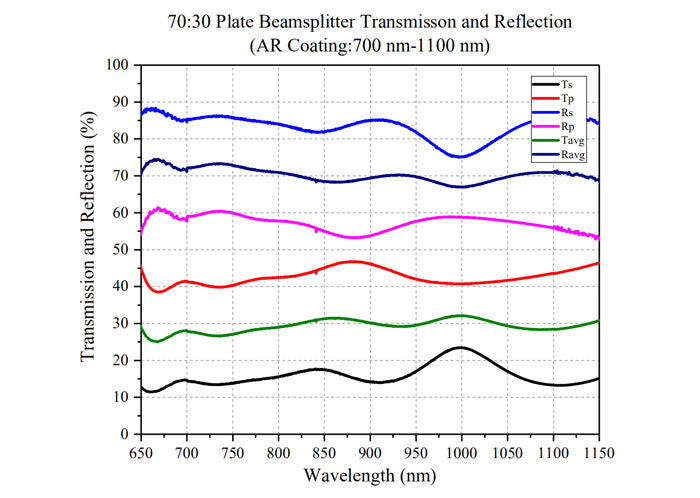

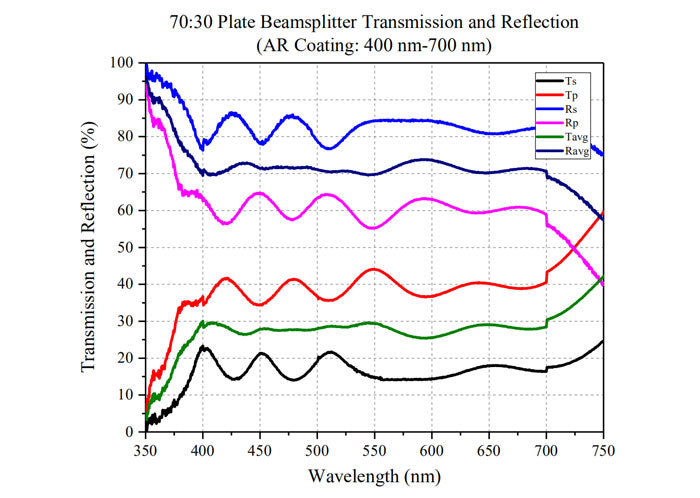

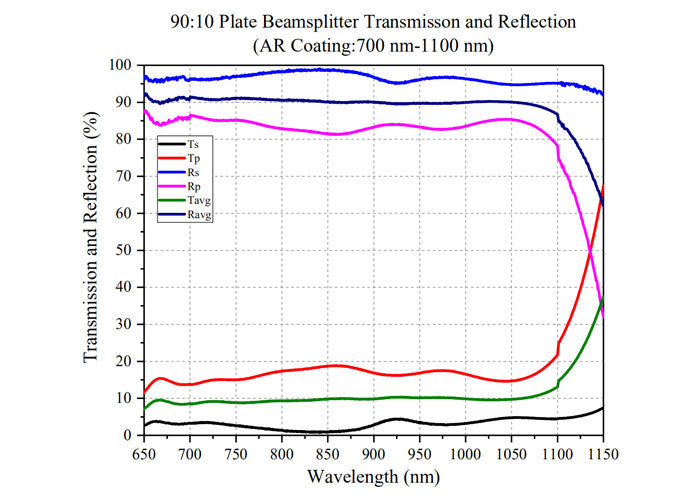

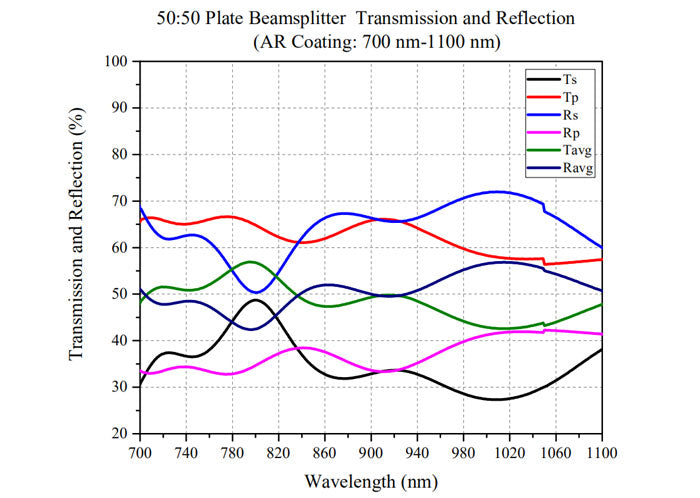

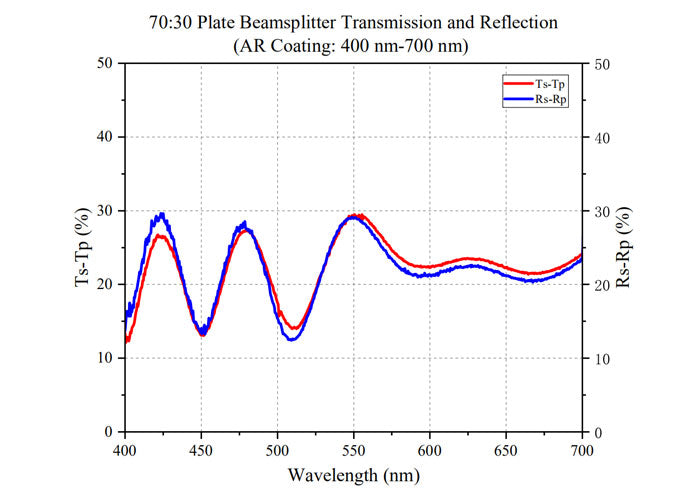

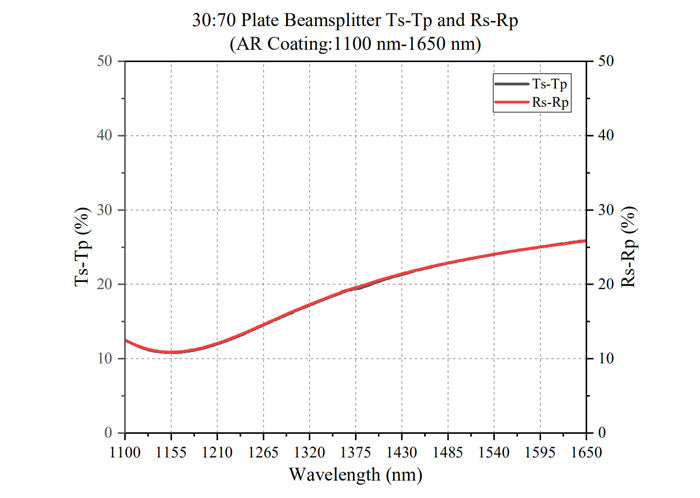

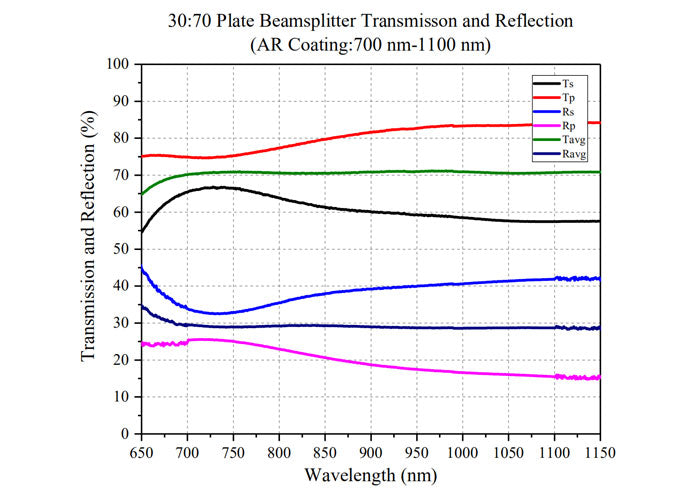

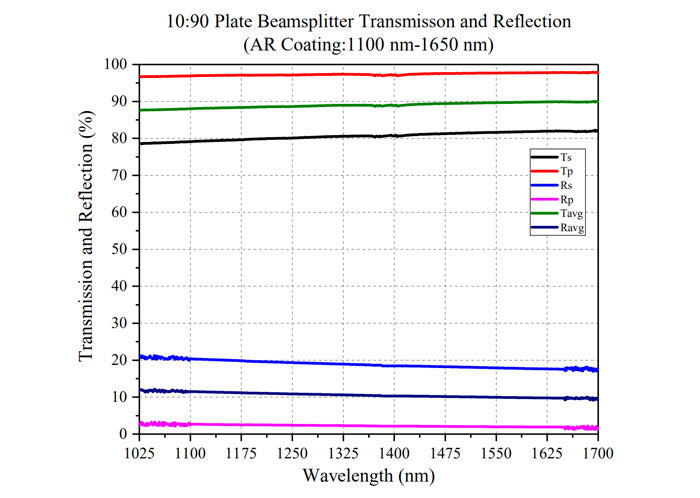

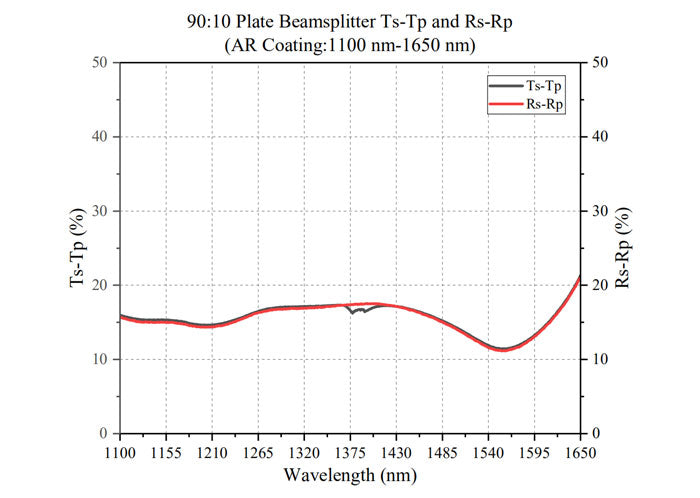

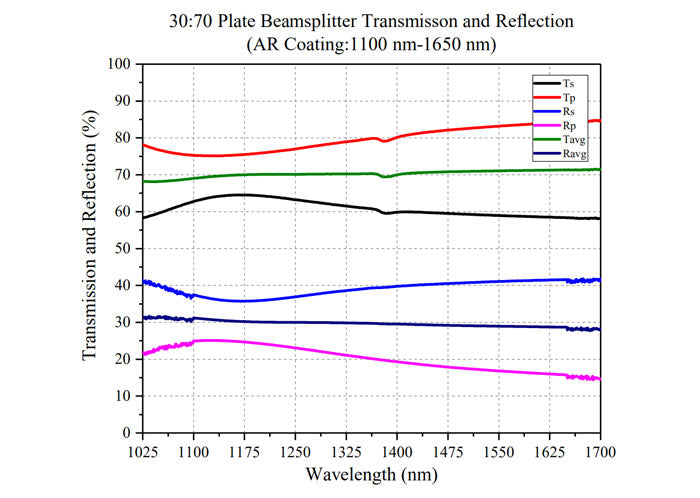

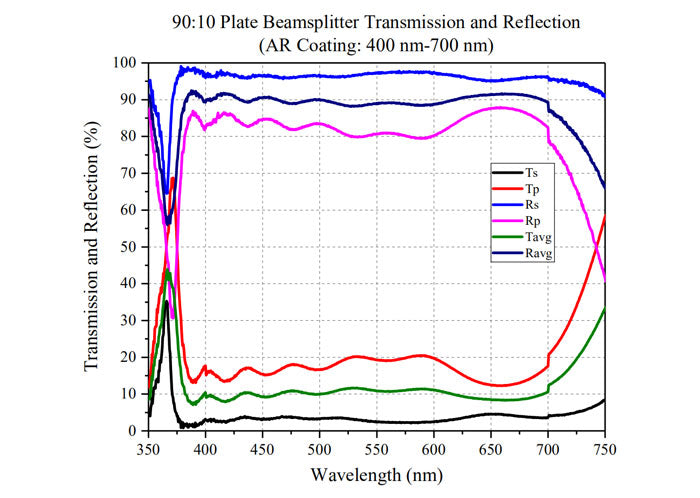

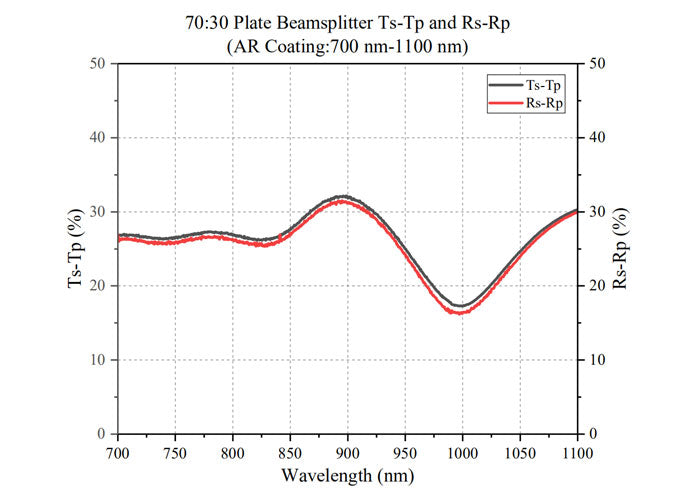

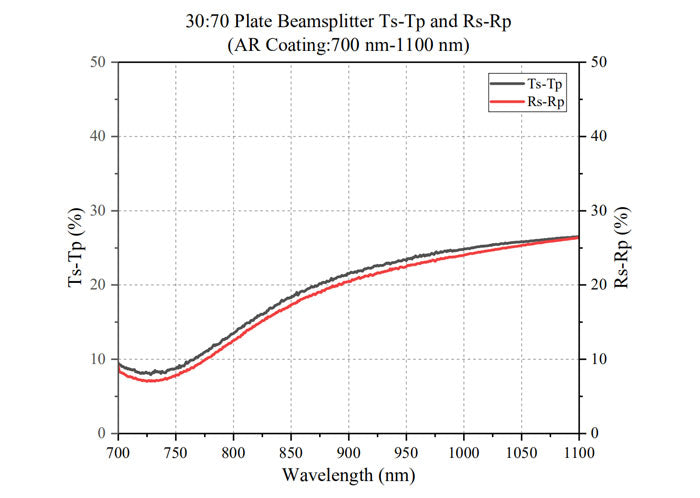

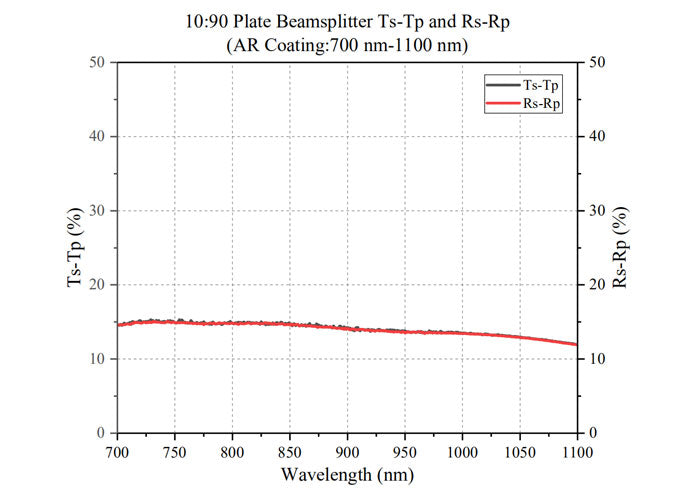

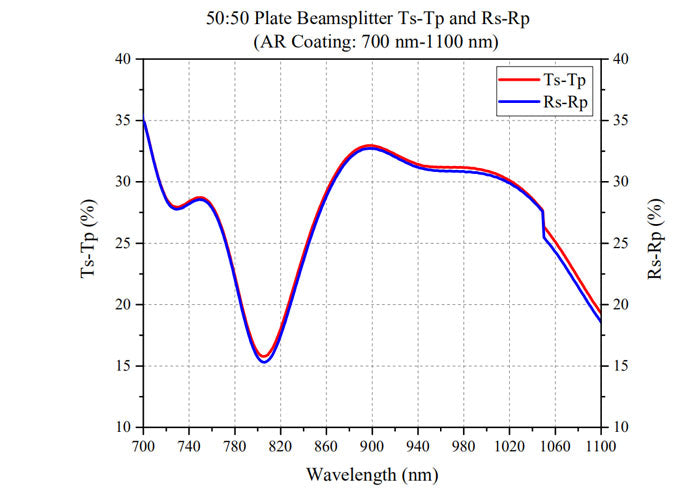

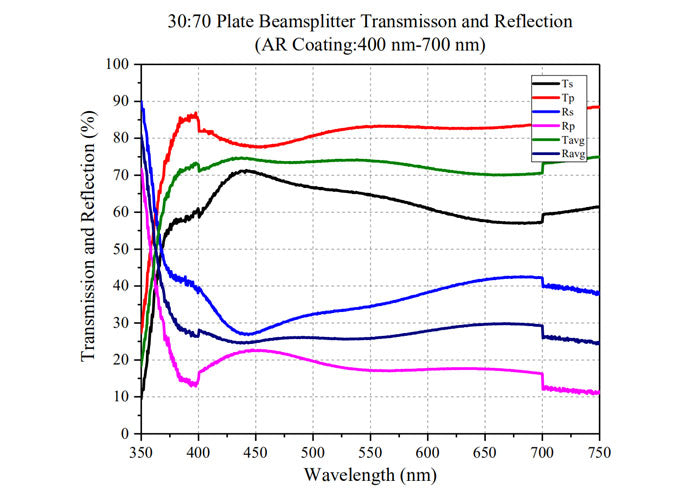

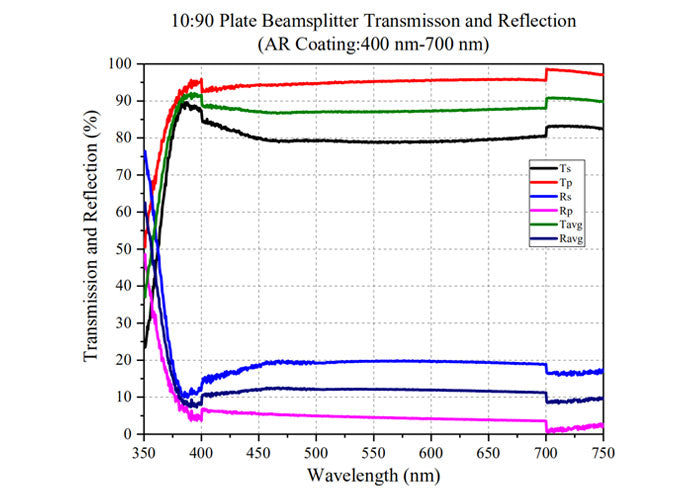

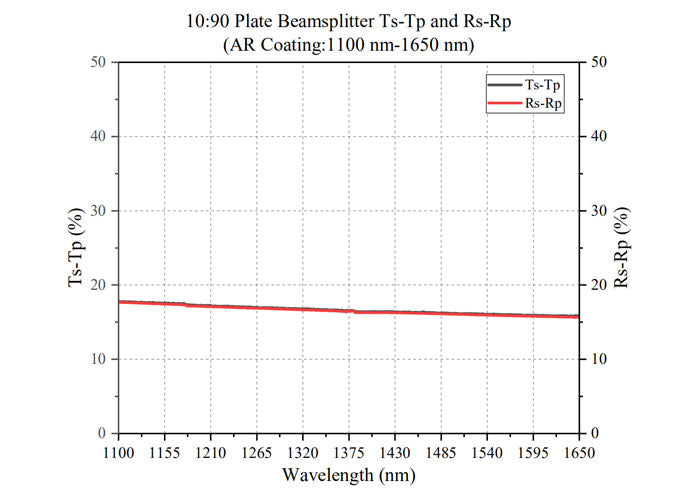

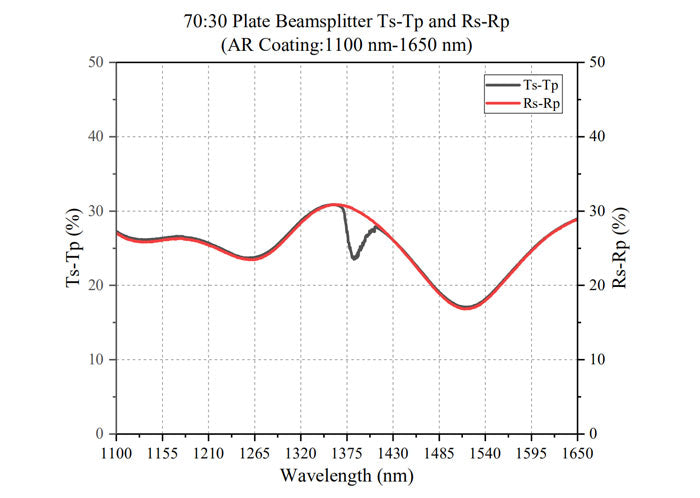

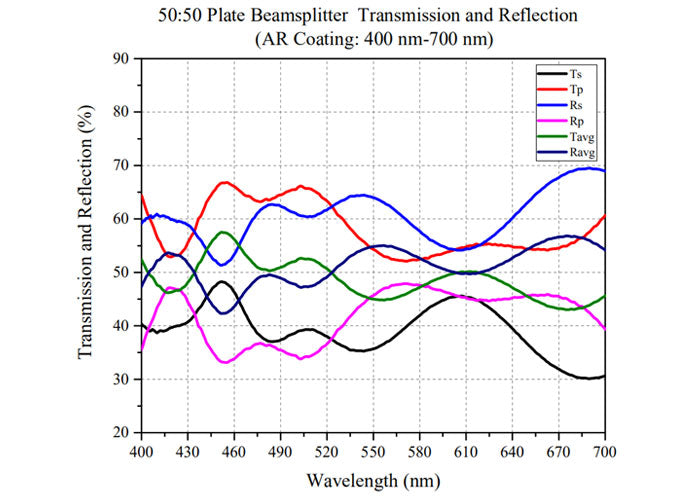

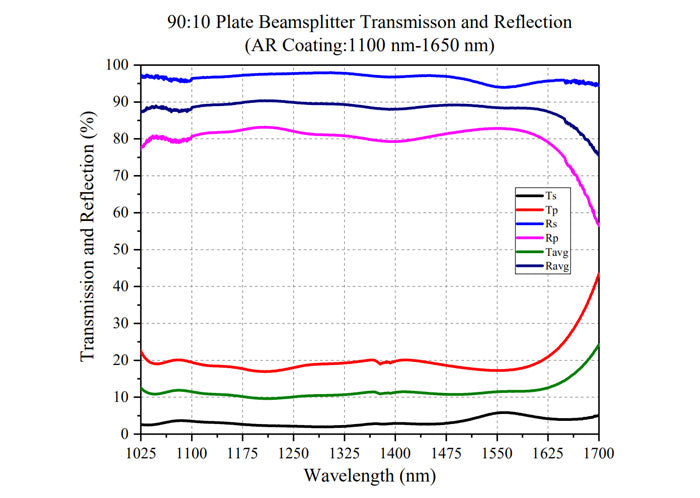

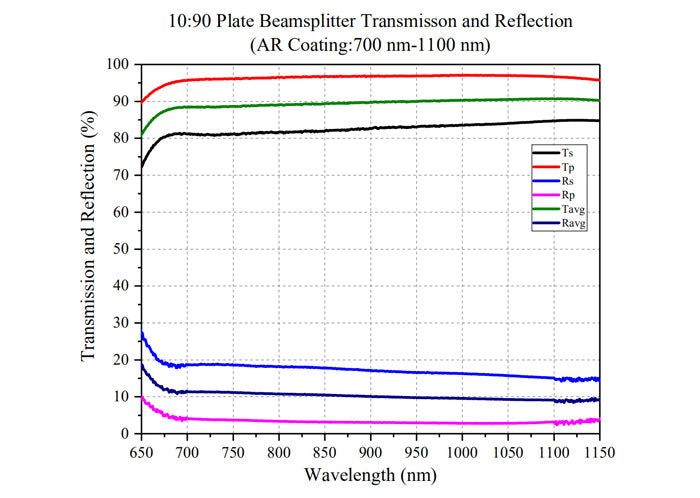

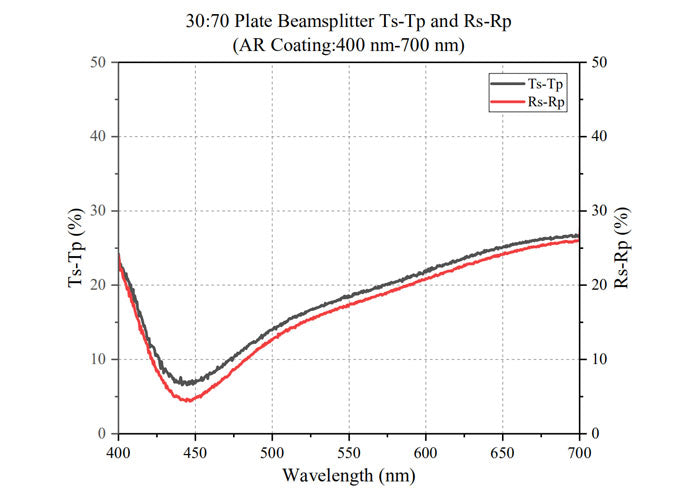

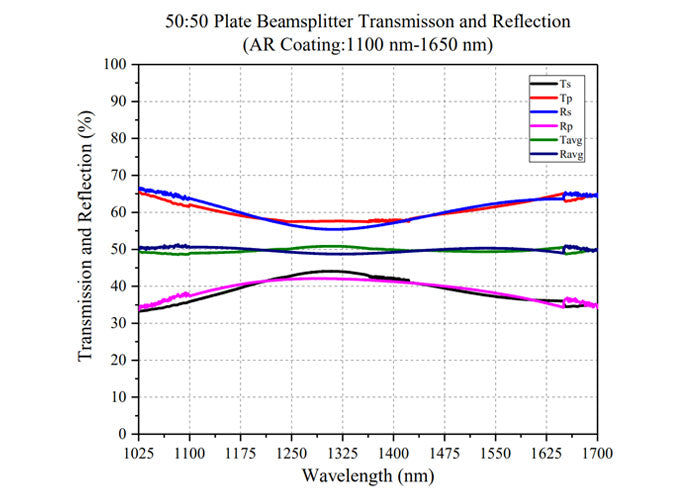

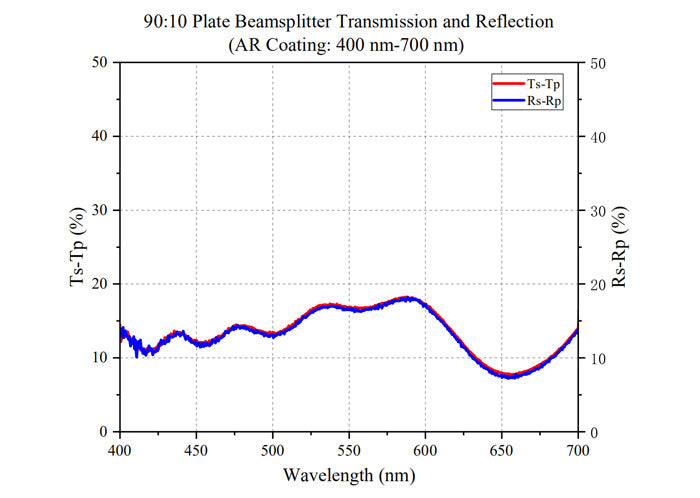

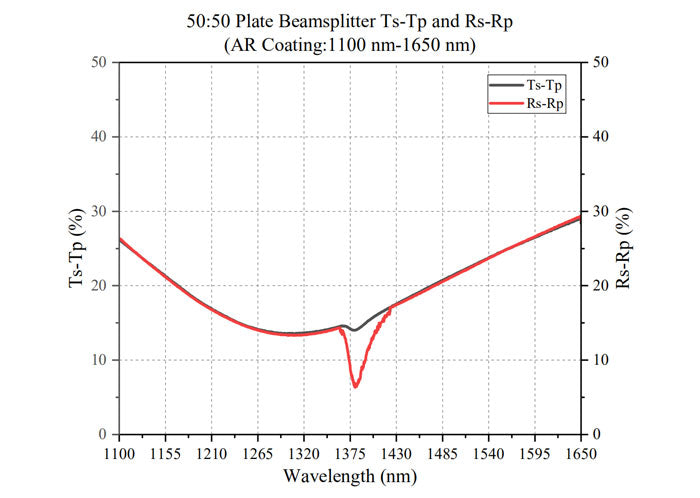

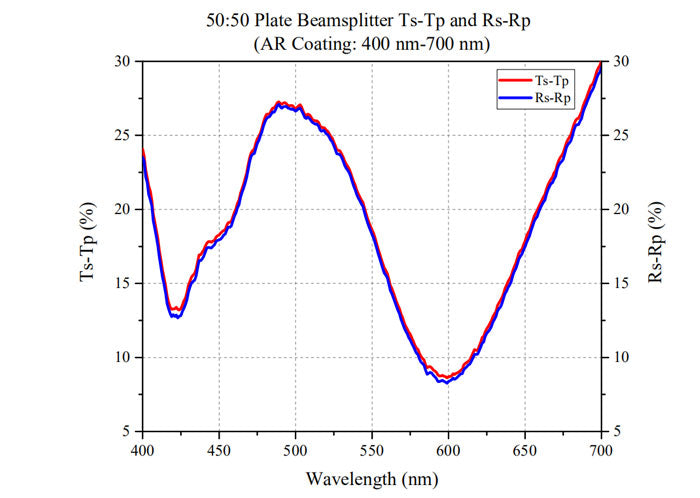

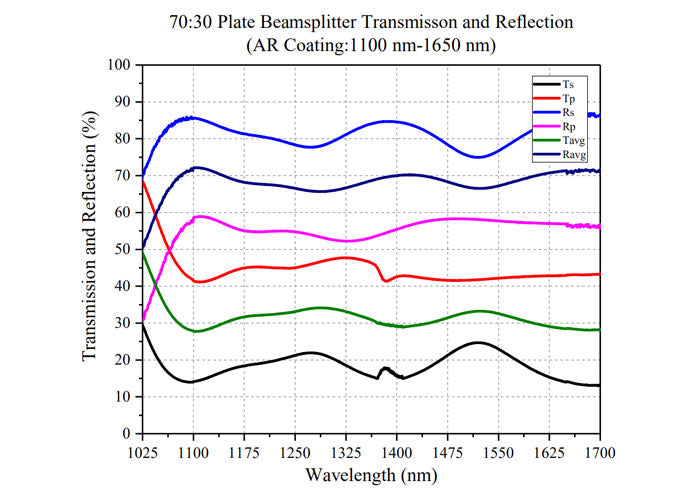

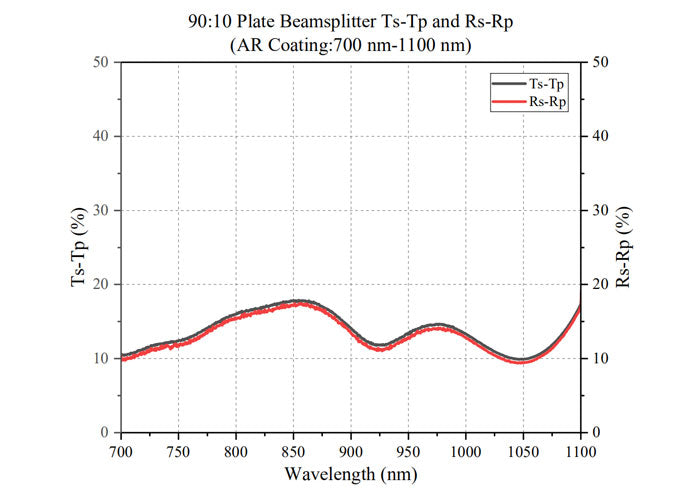

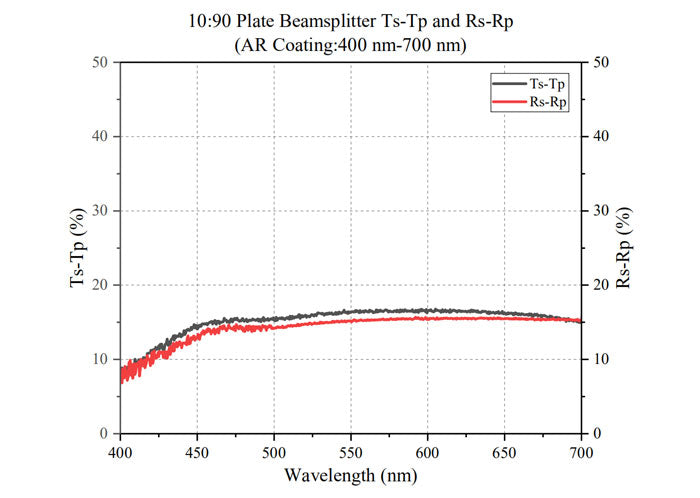

Curve 1
