Precilasers

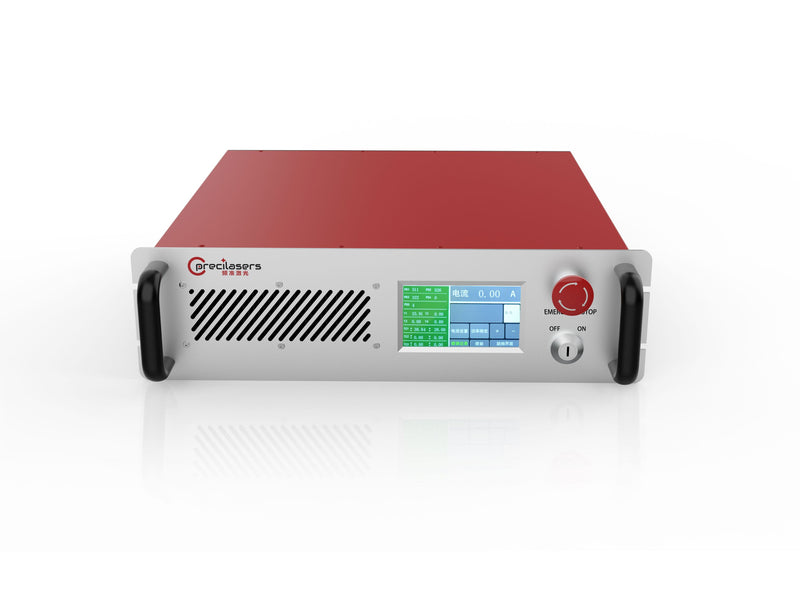

1064nm High-power picosecond laser
Contact for pricing
Contact Sales
Design Tools
Time-Bandwidth Product
Check if your pulse is transform-limited
Pulse Stretching & Compression
Calculate GVD, TOD, and pulse broadening
View all 49 calculators →
RoHS
REACH
1030-1120 nm Ytterbium-doped picosecond seed laser Picosecond laser -->
Features
- Narrow Pulse Width High
- Power Linear Polarization Excellent
- Beam Quality High Power
- Stability
Applications
- Optical Precision Measurement Quantum
- Computing Quantum Precision Measurement
| Models | FL-PS-1064-XX |
|---|---|
| Center Wavelength | 1064nm |
| Tuning Range | >10nm |
| Operation Mode | Pulsed laser amplifier output |
| Pulse Width | <6ps / <8ps / <12ps / <20ps |
| Pulse Energy | <2000nJ |
| Average Power | 5-100W |
| Maximum Peak Power | >50kW |
| Spectral Width | <5nm |
| Repetition Frequency | 20-120MHz |
| Polarization | Linear polarization, >100:1 |
| Power Stability | <1% @3hours, RMS |
| Beam Quality | TEM 00 , M²<1.1 |
| Output Mode | Fiber collimator head output |
| Cooling | Air cooling |
| Temperature(No condensation conditions) | 15-35 °C |
| Power Supply | 100V-240V, AC, 50/60Hz |
| Communication | RS422 |
Source: Precilasers manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
No CAD drawings available for this product.
Product Family: Picosecond Lasers (7 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| 266nm Solid-state picosecond laser |
| — | — | — | Contact |
| 355nm Solid-state picosecond laser |
| — | — | — | Contact |
| 532nm Solid-state picosecond laser |
| — | — | — | Contact |
| 1950-2050 nm Thulium-doped picosecond laser |
| — | — | — | Contact |
| 1530-1590 nm Erbium-doped picosecond seed laser |
| — | — | — | Contact |
| 1064nm High-power picosecond laser Current |
| — | — | — | |
| 1030-1120 nm Ytterbium-doped picosecond seed laser |
| — | — | — | Contact |
