Precilasers

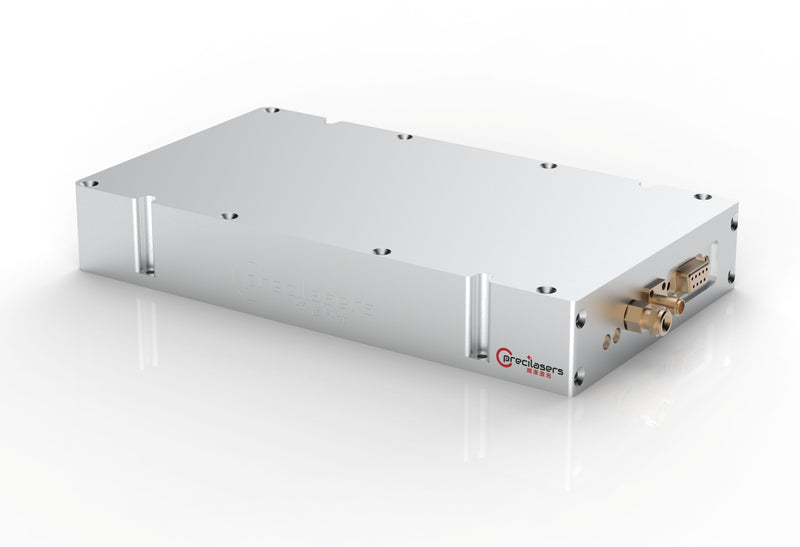

1530-1590 nm Erbium-doped picosecond seed laser
Contact for pricing
Contact Sales
Design Tools
Time-Bandwidth Product
Check if your pulse is transform-limited
Pulse Stretching & Compression
Calculate GVD, TOD, and pulse broadening
View all 49 calculators →
RoHS
REACH
1530-1590 nm Erbium-doped picosecond seed laser This system adopts Nonlinear Amplifying Loop Mirror (NALM) technology to achieve long-term, high-stability pulse output. Core Capabilities Environmental Resilience: Capable of reliable operation in both high and low-temperature environments. High-Power Output: Utilizes an advanced laser amplification scheme to realize long-term, high-power pulsed laser output.
Features
- Broad Spectrum High Power
- Linear Polarization Wavelength
- Tunable High Power Stability
Applications
- Atomic and Molecular Optical
- Physics Precision Measurement Ultrafast
- Imaging Precision Processing
| Models | Specification |
|---|---|
| Model Number | FL-PS-15XX-YY-S |
| Customizable Wavelength Range | 1530-1590 nm |
| Pulse Width | <10 ps |
| Pulse energy | 0.5-3 nJ |
| Average Power | 6-200 mW |
| Maximum peak power | >100W |
| Spectral Width | <1nm |
| Repetition Frequency | 20-120 MHz (Optional frequency reduction module, adjustable down to 1 Hz) |
| Operation Mode | pulsed |
| Temperature(No condensation conditions) | 15-35 °C |
| Power Supply | 12V, DC |
| Communication | RS422 |
| Chassis Dimensions | 225mm×120mm×40mm / 220mm×142mm×45mm(With AOM) |
Source: Precilasers manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
No CAD drawings available for this product.
Product Family: Picosecond Lasers (7 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| 266nm Solid-state picosecond laser |
| — | — | — | Contact |
| 355nm Solid-state picosecond laser |
| — | — | — | Contact |
| 532nm Solid-state picosecond laser |
| — | — | — | Contact |
| 1950-2050 nm Thulium-doped picosecond laser |
| — | — | — | Contact |
| 1530-1590 nm Erbium-doped picosecond seed laser Current |
| — | — | — | |
| 1064nm High-power picosecond laser |
| — | — | — | Contact |
| 1030-1120 nm Ytterbium-doped picosecond seed laser |
| — | — | — | Contact |
