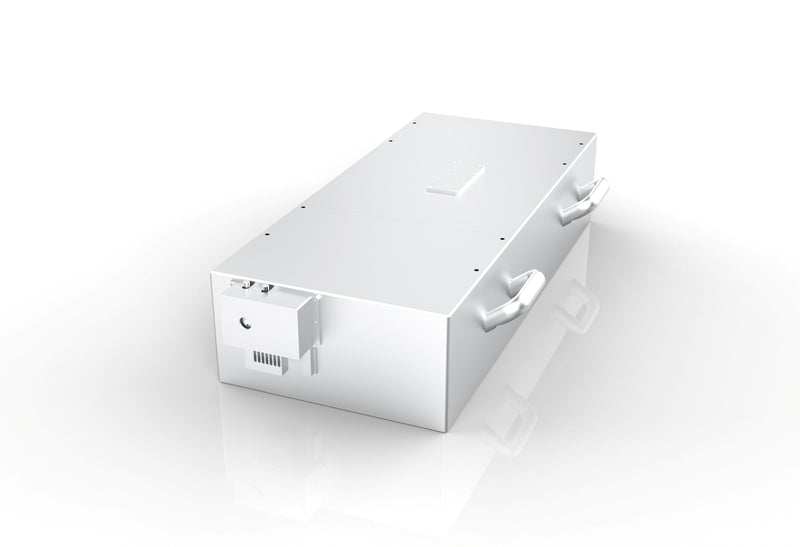

266nm Solid-state picosecond laser The solid-state laser-based solution achieves high repetition rate, high-power 266nm laser output, which is suitable for applications such as precision detection.
Features
- Narrow Pulse Width High
- Power Excellent Beam Quality
- High Power Stability
Applications
- Atomic and Molecular Photophysics
- Quantum Computing Semiconductor Inspection
| Models | PL-PS-266-xx (1) |
|---|---|
| Center Wavelength | 266nm (2) |
| Operation Mode | pulse |
| Average Power | >1W / >3W / >5W |
| Repetition Rate | 70MHz-100MHz (3) |
| Repetition Rate Lock Option | <1mHz@24h |
| Pulse Width (3) | <50ps @1064nm / <20ps @1064nm |
| Spectral Width (4) | <60pm @1064nm / <100pm @1064nm |
| Beam Waist Diameter | 1.3-1.7mm |
| Beam Divergence (Full Angle) | <0.3mrad |
| Pointing Stability | <20urad/K |
| Power Stability | <0.75% @3hrs, RMS |
| Beam Quality | TEM00, M²<1.2 |
| Cooling | Water Cooling |
| Temperature | 15-35°C(No condensation conditions) |
| Power Supply | 100V-240V, AC, 50/60Hz |
Source: Precilasers manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
