532nm Solid-state picosecond laser
Contact for pricing
Contact Sales
Design Tools
Time-Bandwidth Product
Check if your pulse is transform-limited
Pulse Stretching & Compression
Calculate GVD, TOD, and pulse broadening
View all 49 calculators →
RoHS
REACH

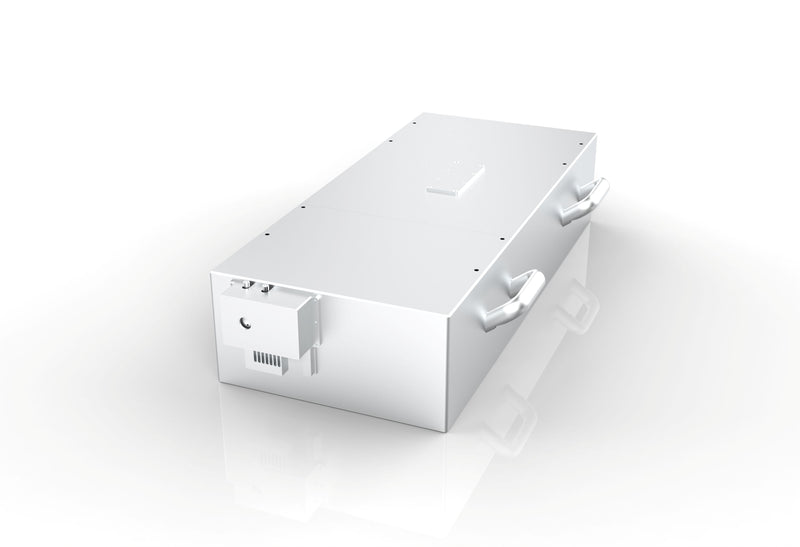

532nm Solid-state picosecond laser The solid-state laser-based solution achieves high repetition rate, high power 532nm laser output, which is suitable for applications such as precision detection.
Features
- Narrow Pulse Width High
- Power Excellent Beam Quality
- High Power Stability
Applications
- Atomic and Molecular Photophysics
- Precision Measurement
| Models | PL-PS-532-xx (1) |
|---|---|
| Center Wavelength | 532nm (2) |
| Operation Mode | pulse |
| Average Power | >20W / >40W |
| Repetition Rate | 70MHz-100MHz (3) |
| Repetition Rate Lock Option | <1mHz@24h |
| Pulse Width (4) | <50ps @1064nm / <20ps @1064nm |
| Spectral Width (4) | <60pm @1064nm / <100pm @1064nm |
| Beam Waist Diameter | 0.8-1.2mm |
| Beam Divergence (Full Angle) | <1mrad |
| Pointing Stability | <20urad/K |
| Power Stability | <0.5% @3hrs, RMS |
| Beam Quality | TEM00, M²<1.2 |
| Cooling | Water Cooling |
| Temperature | 15-35°C(No condensation conditions) |
| Power Supply | 100V-240V AC, 50/60Hz |
Source: Precilasers manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
No CAD drawings available for this product.
Product Family: Picosecond Lasers (7 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| 266nm Solid-state picosecond laser |
| — | — | — | Contact |
| 355nm Solid-state picosecond laser |
| — | — | — | Contact |
| 532nm Solid-state picosecond laser Current |
| — | — | — | |
| 1950-2050 nm Thulium-doped picosecond laser |
| — | — | — | Contact |
| 1530-1590 nm Erbium-doped picosecond seed laser |
| — | — | — | Contact |
| 1064nm High-power picosecond laser |
| — | — | — | Contact |
| 1030-1120 nm Ytterbium-doped picosecond seed laser |
| — | — | — | Contact |
