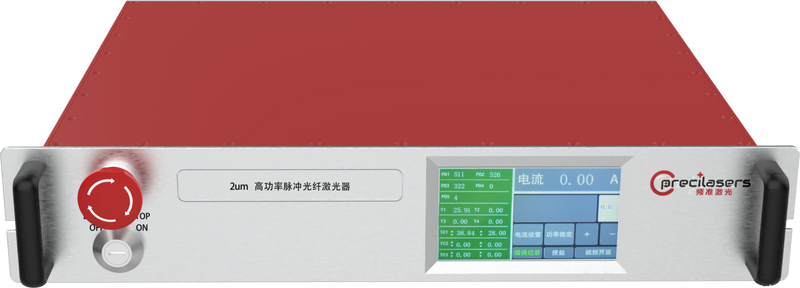

1950-2050 nm Thulium-doped picosecond laser
Contact for pricing
Contact Sales
Design Tools
Time-Bandwidth Product
Check if your pulse is transform-limited
Pulse Stretching & Compression
Calculate GVD, TOD, and pulse broadening
View all 49 calculators →
RoHS
REACH
1950-2050 nm Thulium-doped picosecond laser This system adopts Nonlinear Amplifying Loop Mirror (NALM) technology to achieve long-term, high-stability pulse output. Core Capabilities Environmental Robustness: Capable of reliable operation in both high and low-temperature environments. High-Power Output: Utilizes an advanced laser amplification scheme to realize long-term, high-power pulsed laser output.
Features
- Broad Spectrum High Power
- Linear Polarization Wavelength
- Tunable High Power Stability
Applications
- Atomic and Molecular Optical
- Physics Precision Measurement Ultrafast
- Imaging Nonlinear Optics
- Frontier Sciences Biomedicine High
- Manufacturing
| Models | Specification |
|---|---|
| Model Number | PL-PS-XXXX-YY |
| Customizable Wavelength Range | 1950-2050 nm |
| Pulse Width | <100 ps |
| Pulse Energy | 10-40 nJ |
| Average Power | >0.5W |
| Maximum Peak Power | >150W |
| Spectral Width | >5nm |
| Repetition Rate | 50-150 MHz |
| Polarization | Linear polarization, >100:1 |
| Power Stability | <0.5% @12hours, RMS |
| Beam Quality | M²<1.1 |
| Output Mode | Collimator Output |
| Cooling | Air cooling |
| Temperature(No condensation conditions) | 15-35 °C |
| Power Supply | 100V-240V, AC, 50/60Hz |
| Communication | RS422 |
| Chassis Dimensions | 480*360.1*88.1 mm |
Source: Precilasers manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
No CAD drawings available for this product.
Product Family: Picosecond Lasers (7 variants)
