30mm coaxial quick-release magnetic cube MCM1BL-A

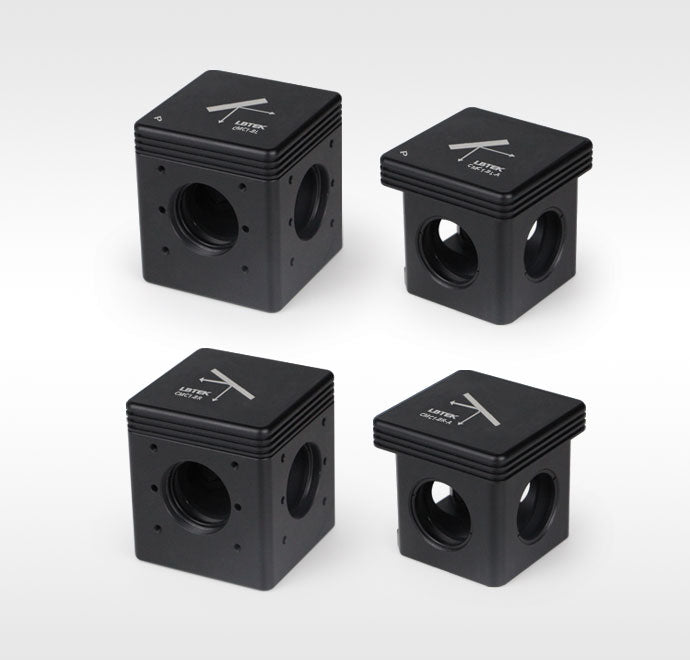

LBTEK offers the MCM1BL\R 30 mm coaxial magnetic quick-release cube for right-angle prisms. The cube insert can accommodate two Ø25.4 mm optical components in the two directions marked by arrows on the top plate via snap rings, and features a magnet at the bottom for quick detachment. The center of the insert where the optical component is mounted has foam to prevent damage, and it can hold right-angle prisms with side lengths of 25 mm or 25.4 mm. The center cube insert is sold separately, with the base being MCM1-B. Currently, there are left-handed and right-handed models available. For the MCM1BL left-handed adjustable version, the side marked with the letter P on the top plate should align with the beveled edge of the inner slot in the MCM1-B base during installation and removal. The MCM1BR model requires the bracket's beveled edge to align with the beveled edge of the inner slot in the MCM1-B base for installation and removal.
