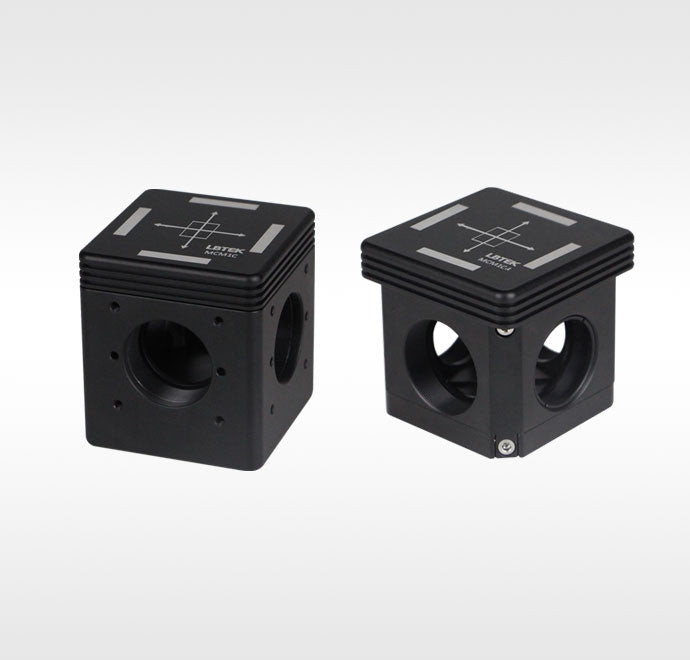

30mm coaxial quick-release magnetic cube MCM1C-A

LBTEK offers the MCM1C30 mm coaxial quick-release magnetic cube, designed for beam splitter cubes with side lengths of 25 mm or 25.4 mm. The cube insert allows for the installation of four Ø25.4 mm optical components around its perimeter via retaining rings. The insert features a magnet at the bottom for quick detachment. Sponge strips are placed at the optical component mounting positions, which is the center of the insert, to prevent damage to the optical elements. It accommodates beam splitter cubes with side lengths of 25 mm or 25.4 mm, and the fixing screws are designed with an anti-drop feature to eliminate concerns about screw loss. The central cube insert is sold separately, with the base being MCM1-B. Note: The sponge strips on the insert are intended to prevent damage and ensure stable installation of optical components. Therefore, a slightly higher torque is required when tightening the locking screws.
