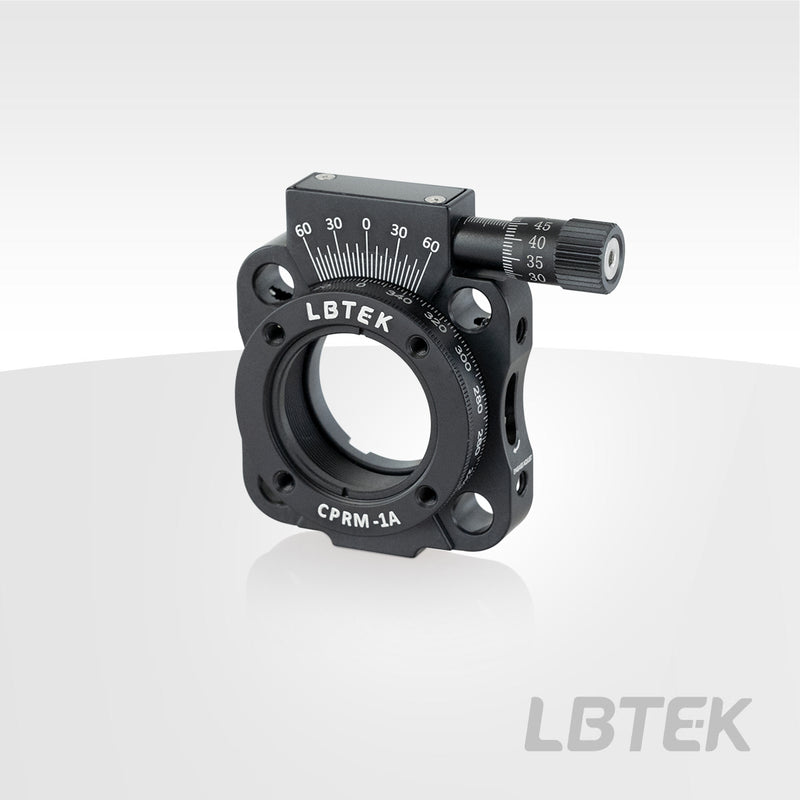

30mm Coaxial System Rotary Adjustment Mount CPRM-1A

The LBTEK CPRM-1A adjustment mount is suitable for installing optical components with a diameter of Ø25.4 mm and a maximum thickness of 9.4 mm, securing the optical component with a single SM1R retaining ring. It allows for 360° rotation, with markings every 20°, and the differential scale provides a resolution of 5' (0.08°). The side features a coarse adjustment locking screw. When the coarse adjustment is locked, the rotation mount position can be finely adjusted within a range of ±7° using the micrometer head. Each full rotation of the micrometer head corresponds to a 1° rotation of the mount, with an accuracy of 1.2' (0.02°). The CPRM-1A has an M4 threaded hole at the bottom for connecting to optical posts.
